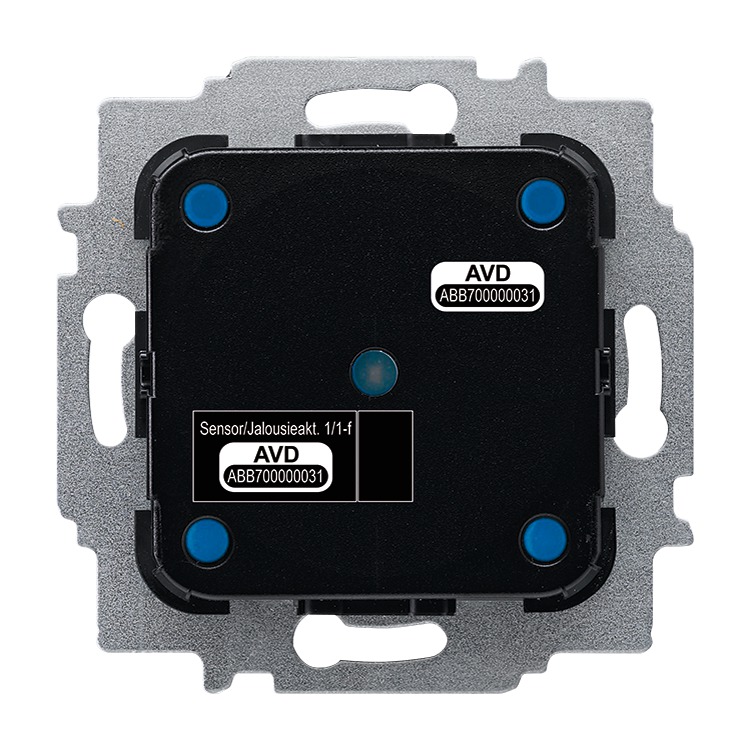

Sensor/blind actuator, 1/1gang, wireless
for ABB-free@home®

Functions at a glance

  • For controlling blind or awning motors.
  • Communication with the free@home system is carried out wireless.
  • With integrated blind actuator.
  • Blind function is available also without prior programming (pre-configured).
  • Configuration can be changed later via the web interface (groups, scenes, etc.).

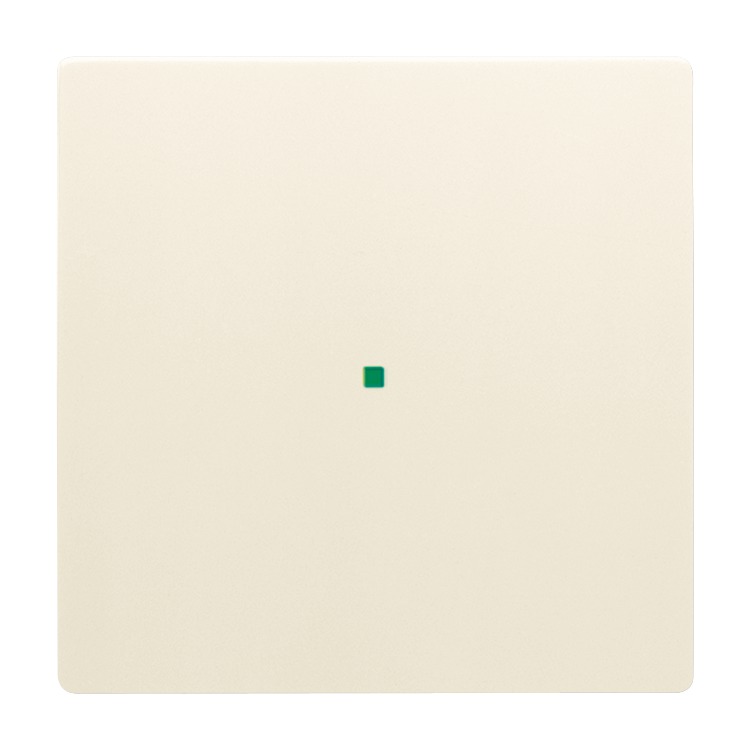

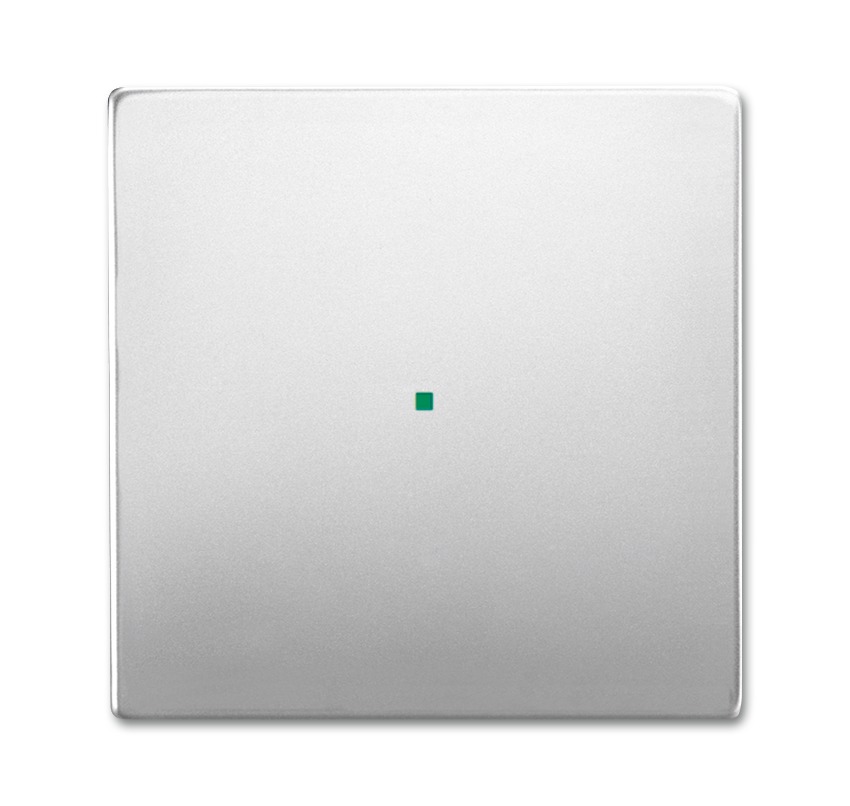

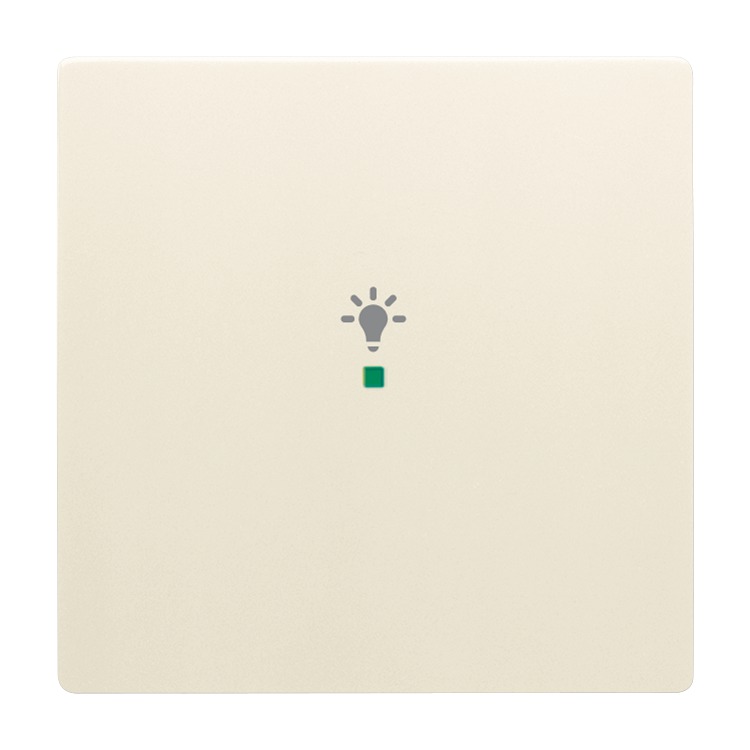

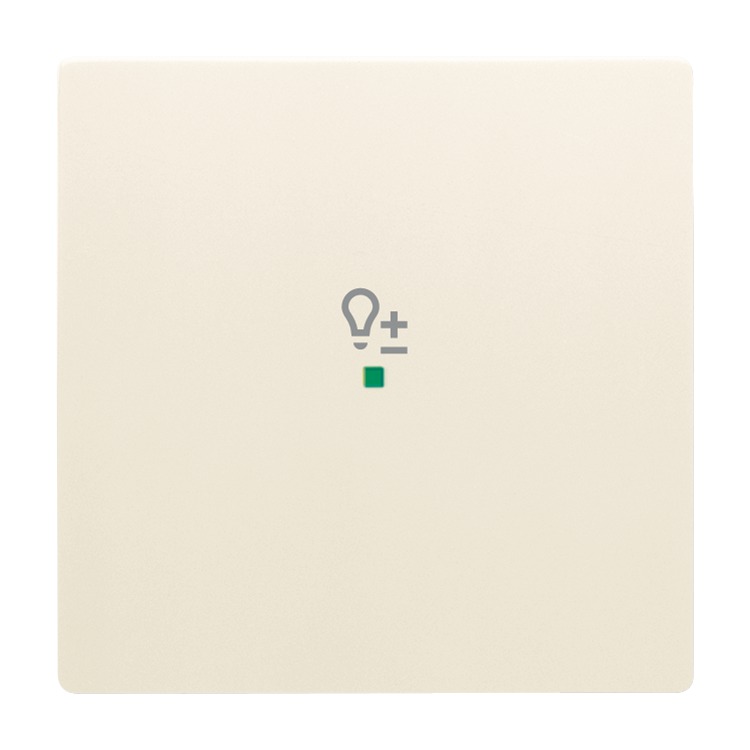

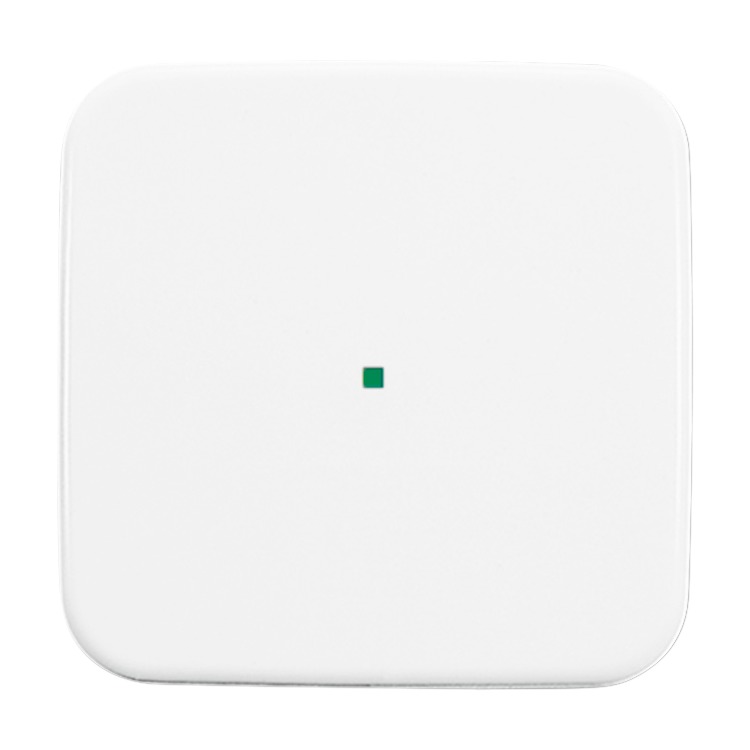

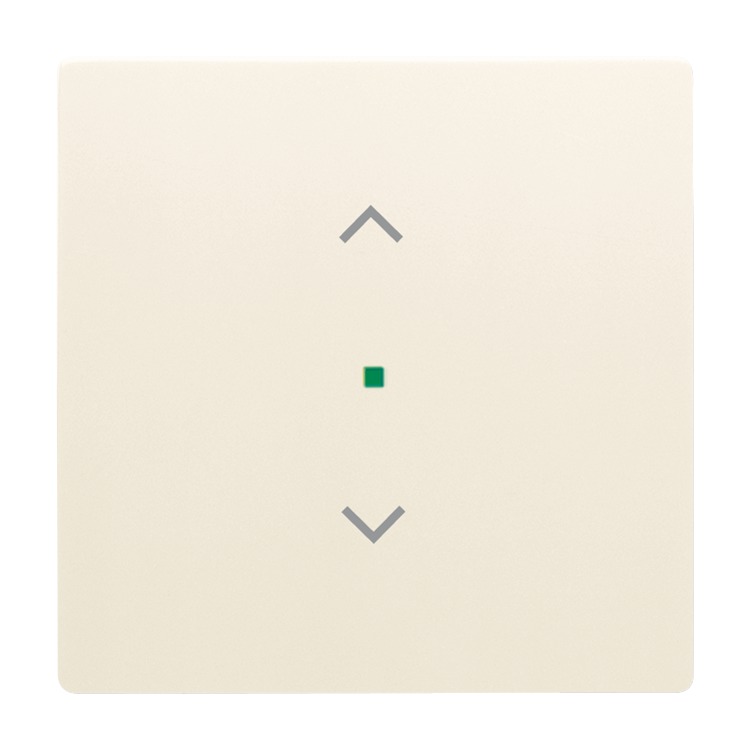

  • For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx.
  • 3 wire connection (neutral conductor required).
  • With two 230 V extension unit inputs (Up/Down).
  • With fixing claws.
  • Control element: Switch contacts top/bottom
  • Display elements: LED as light for orientation or display of the switching state
  • Rated voltage: 230 V~
  • Rated frequency: 50 Hz / 60 Hz
  • Outputs: 2 Normally open contact, potential-bound
  • suitable for: Operation mode Blind
    • Rated output: 920 VA
    • Rated current: 4 A
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -20 °C - 70 °C
  • Dimensions: (L x W x D): 71 mm x 71 mm x 45 mm
  • Mounting depth: 32 mm
  • Programming via the web interface of the System Access Point.
  • Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.

    Order details

    Article No.:6213/1.1-WL
    Order No.:2CKA006200A0049
    Customs tariff number:85389091
    Price group:24
    Price:154,00 EUR plus VAT
    Info sheet:Download PDF

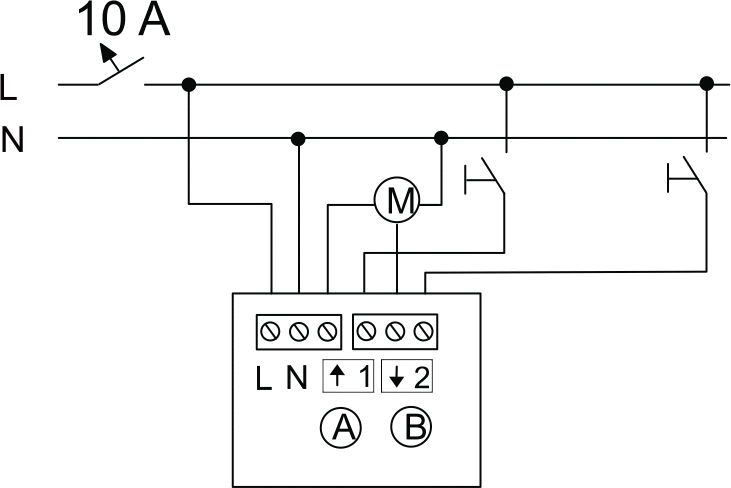

    Wiring diagram

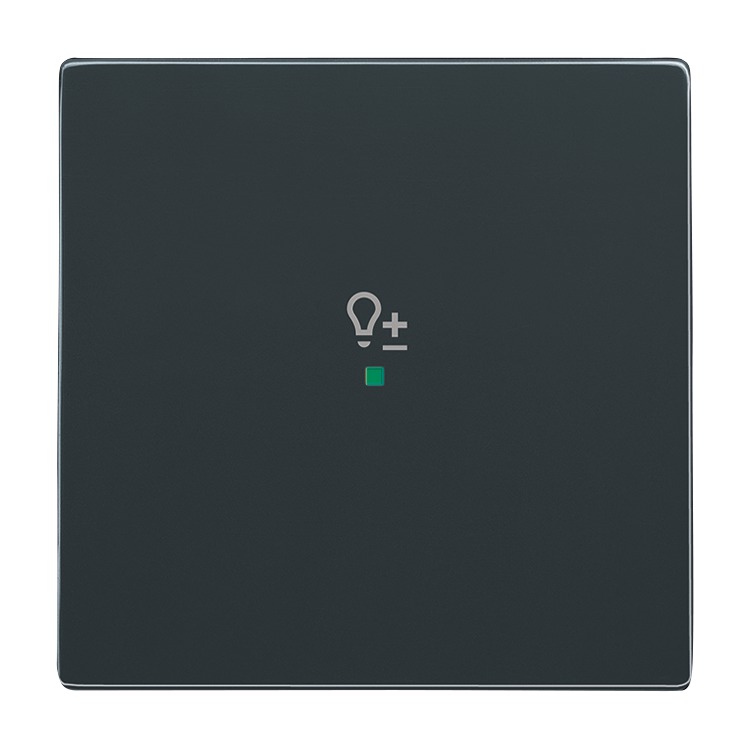

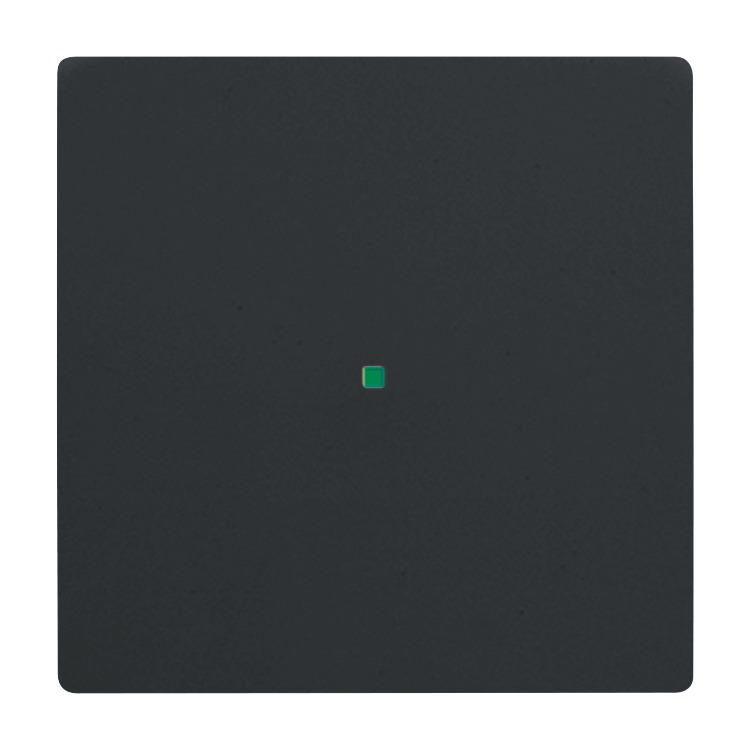

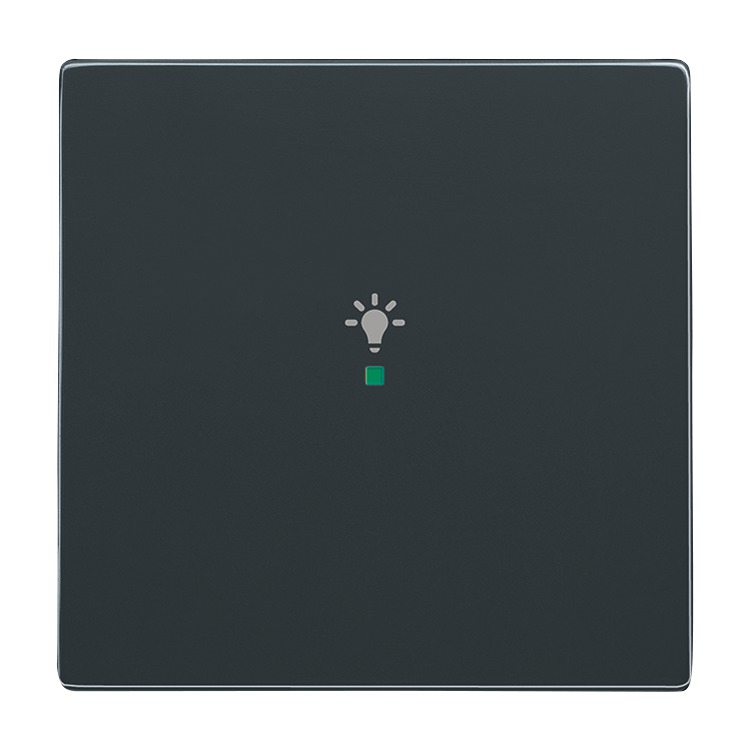

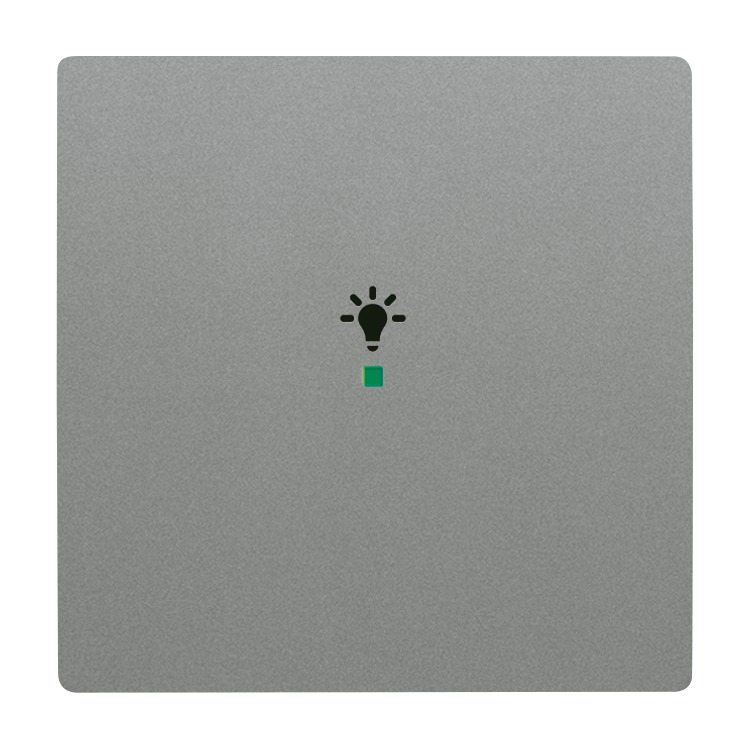

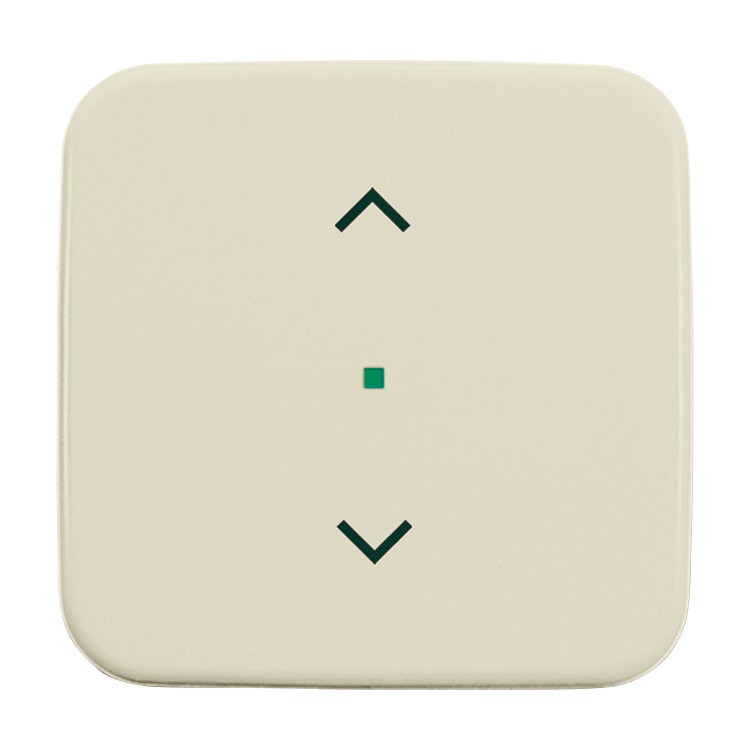

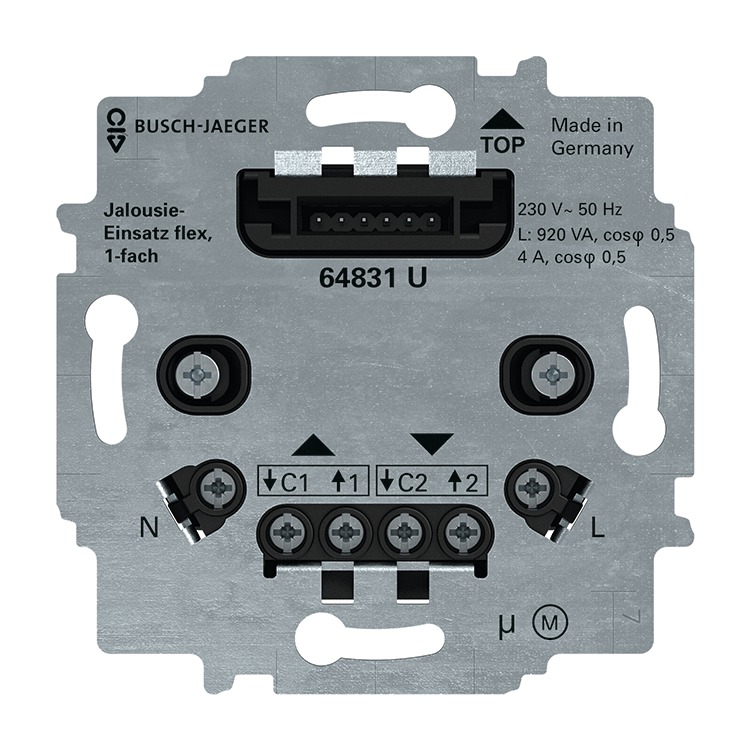

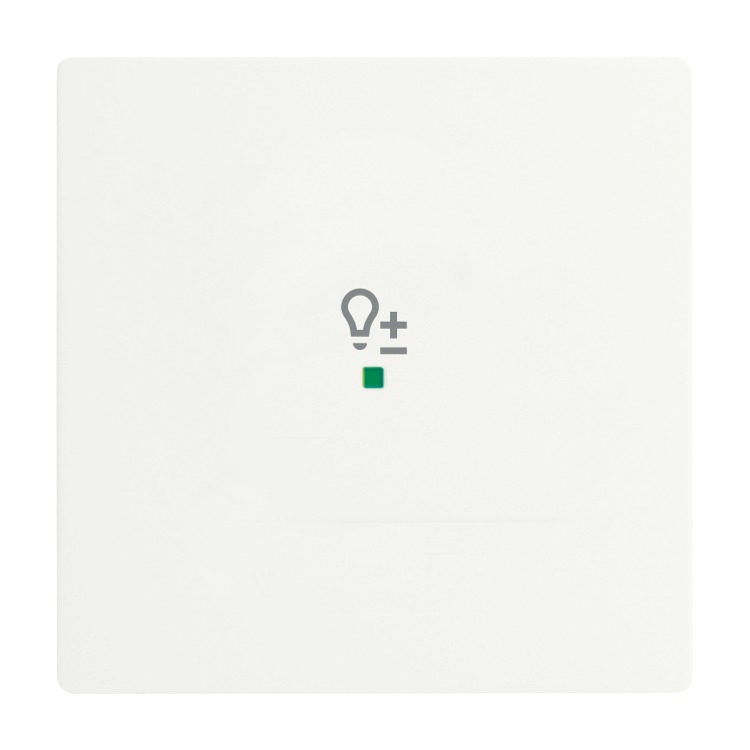

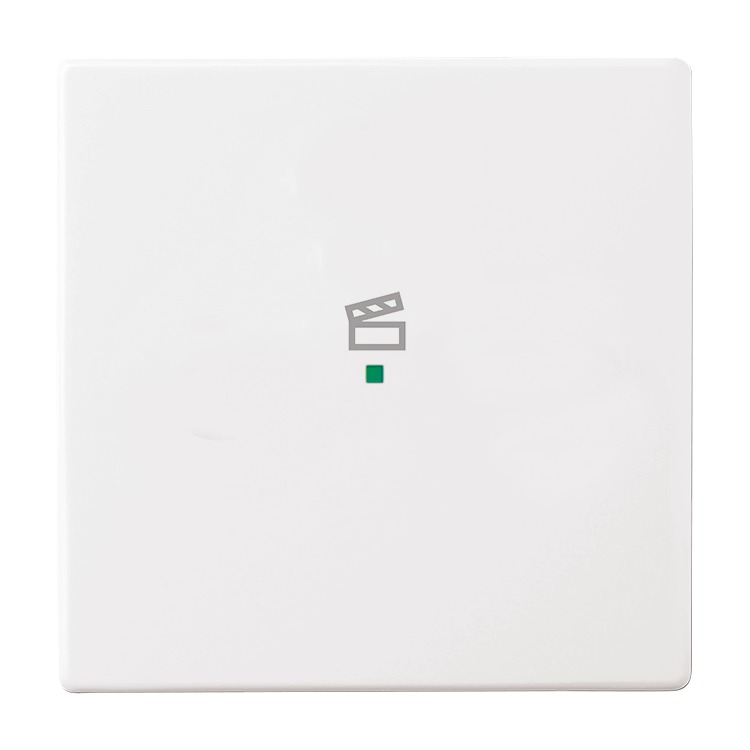

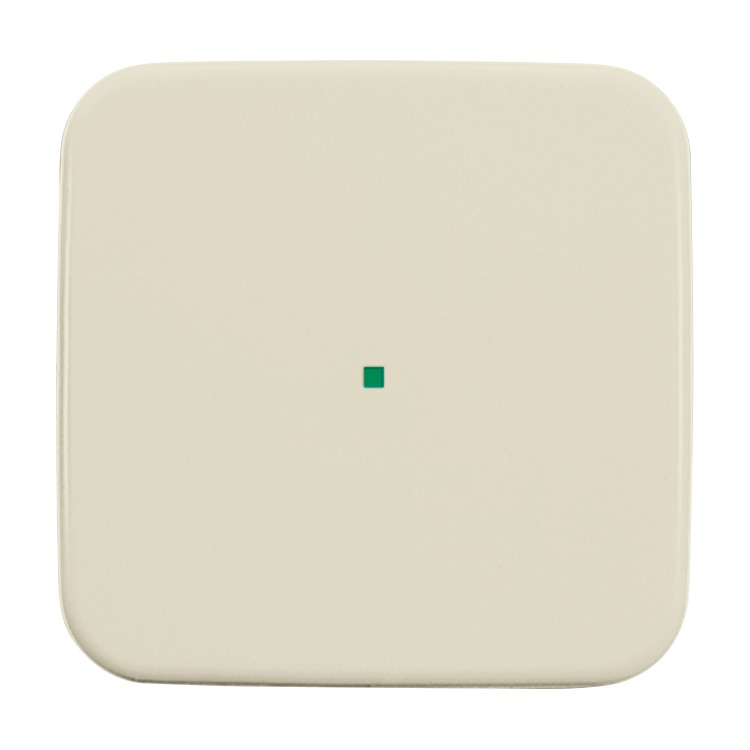

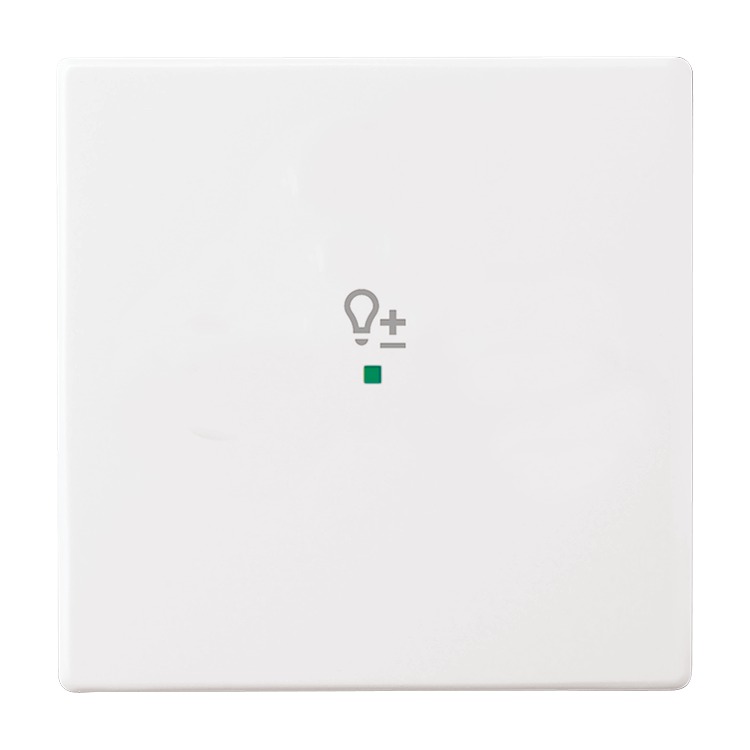

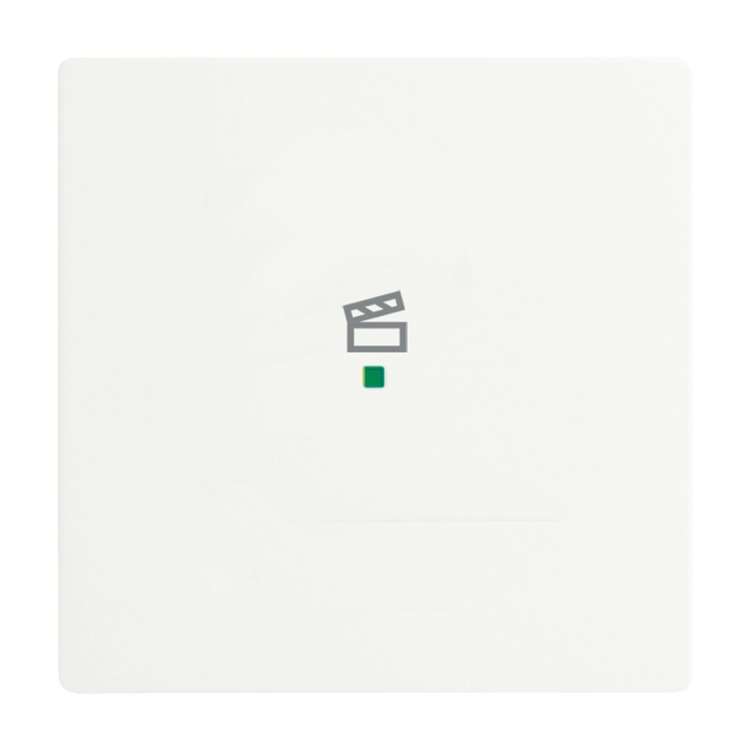

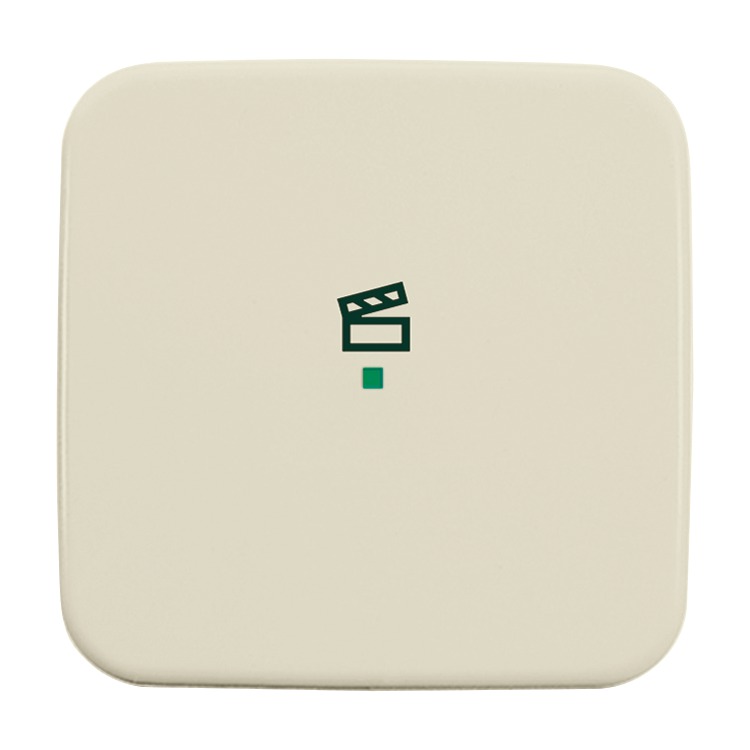

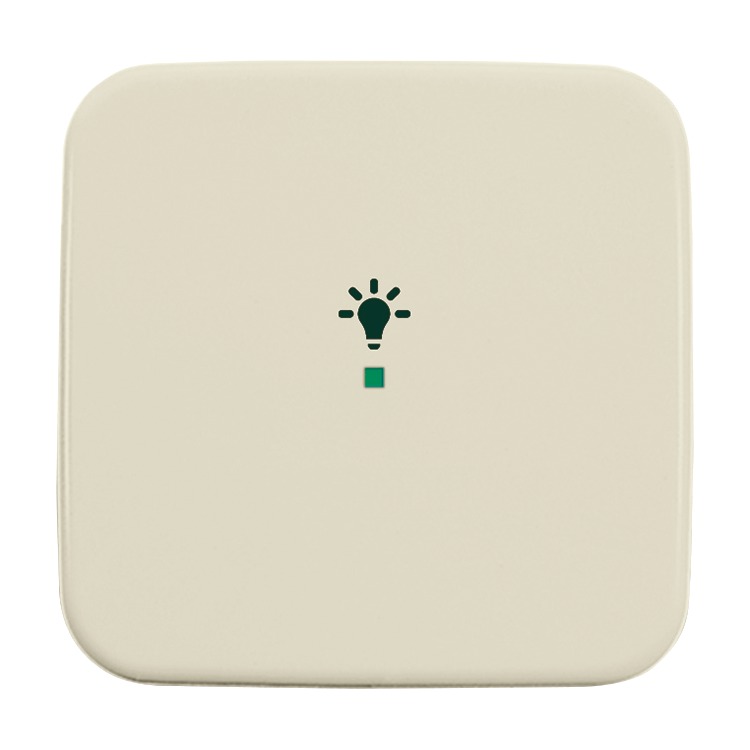

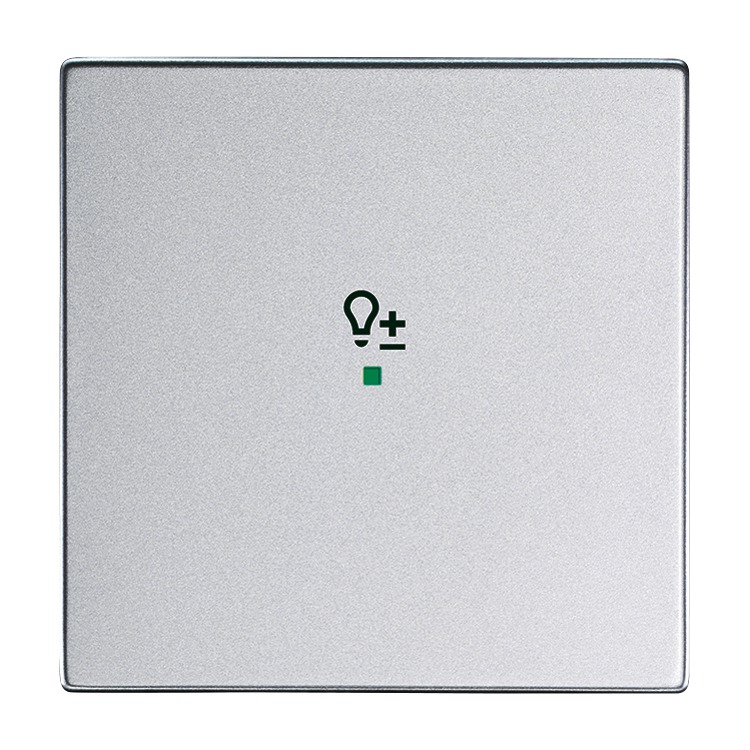

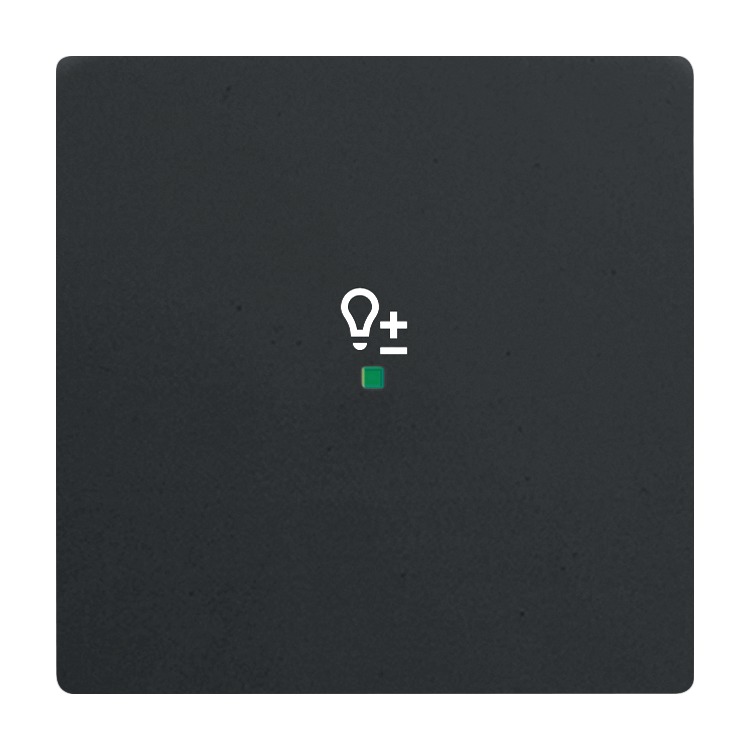

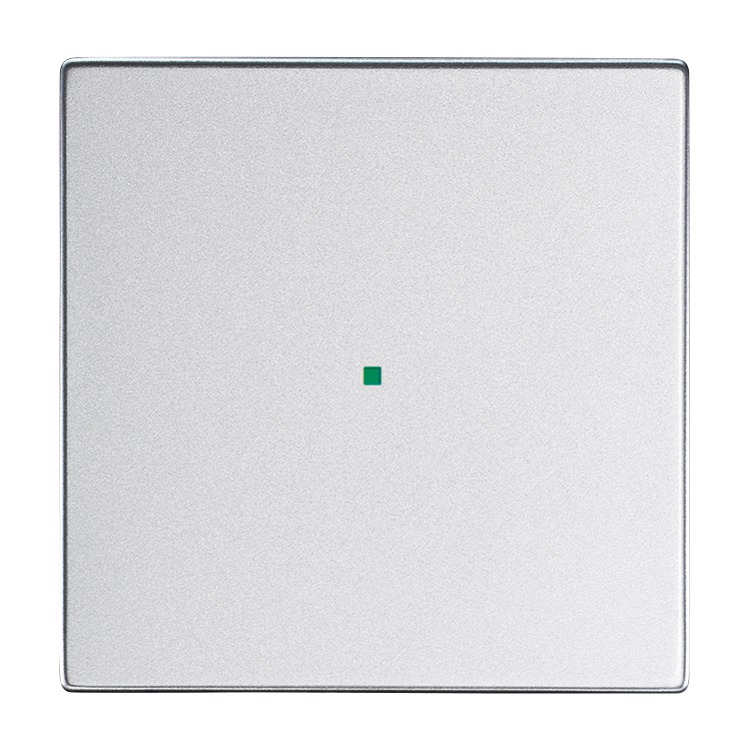

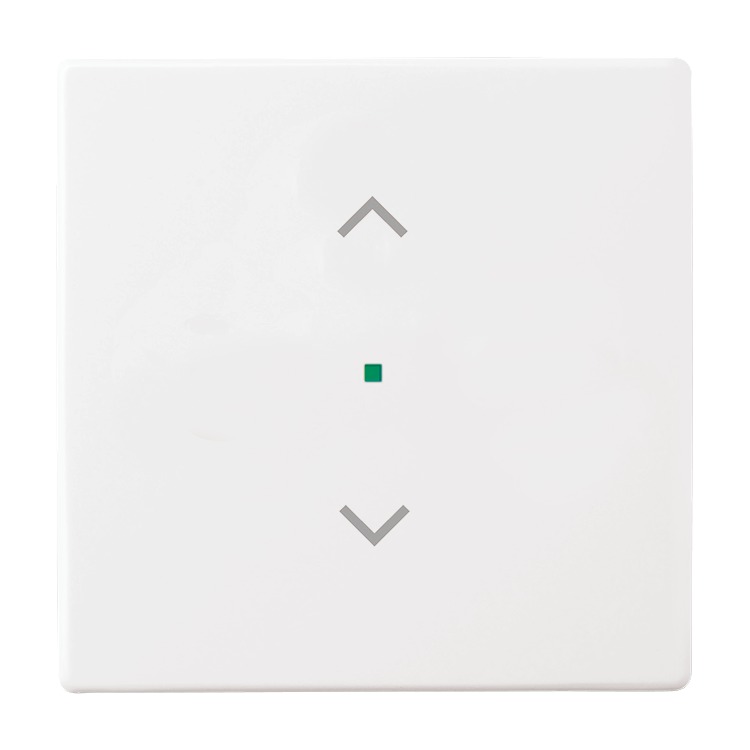

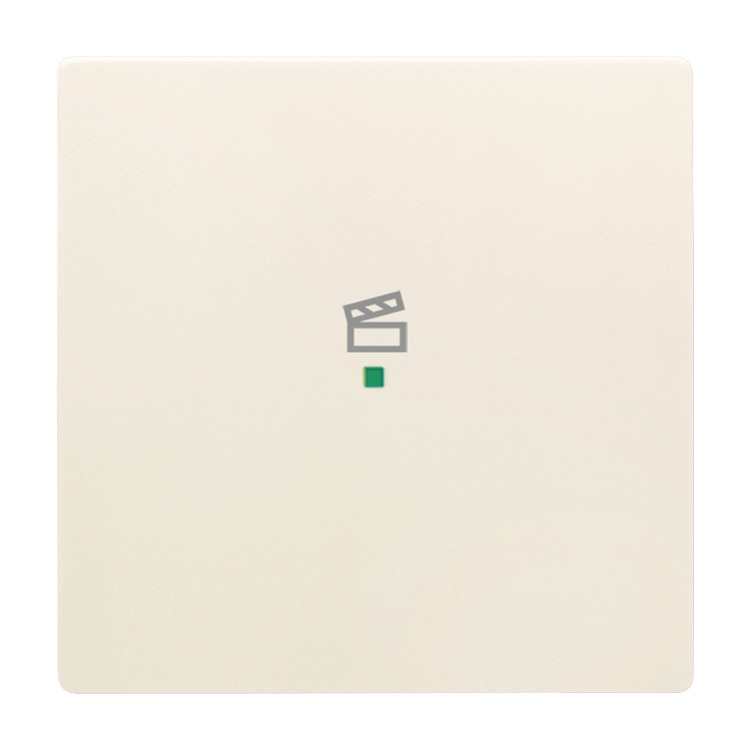

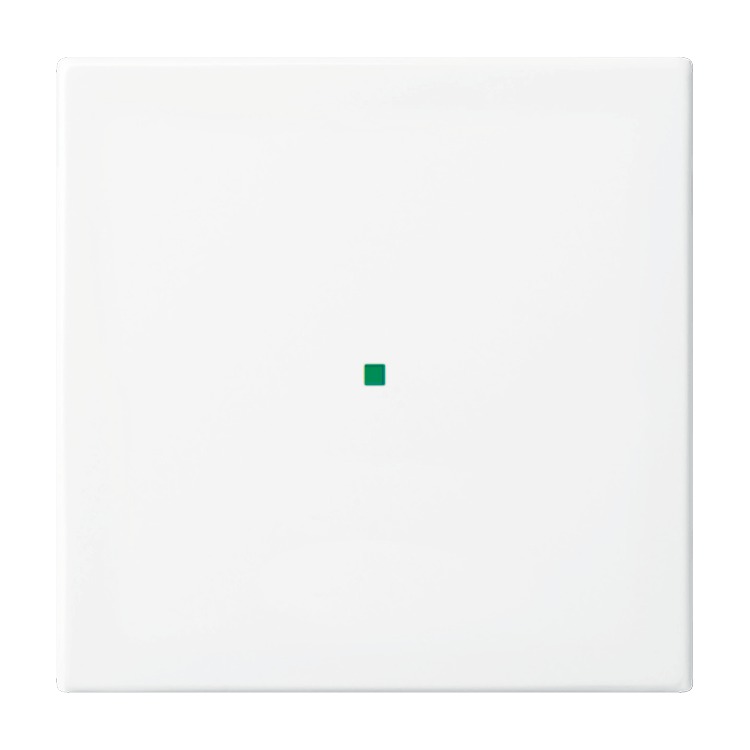

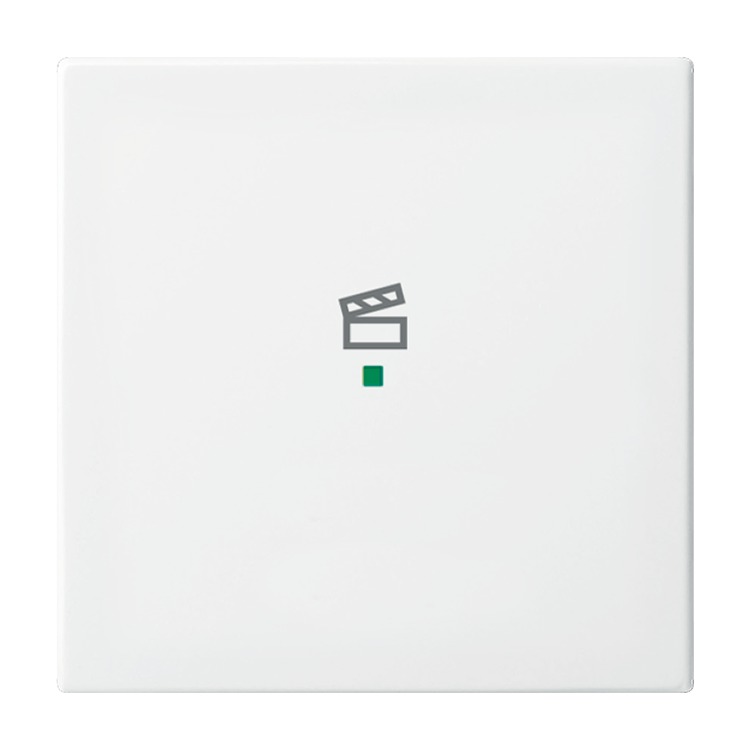

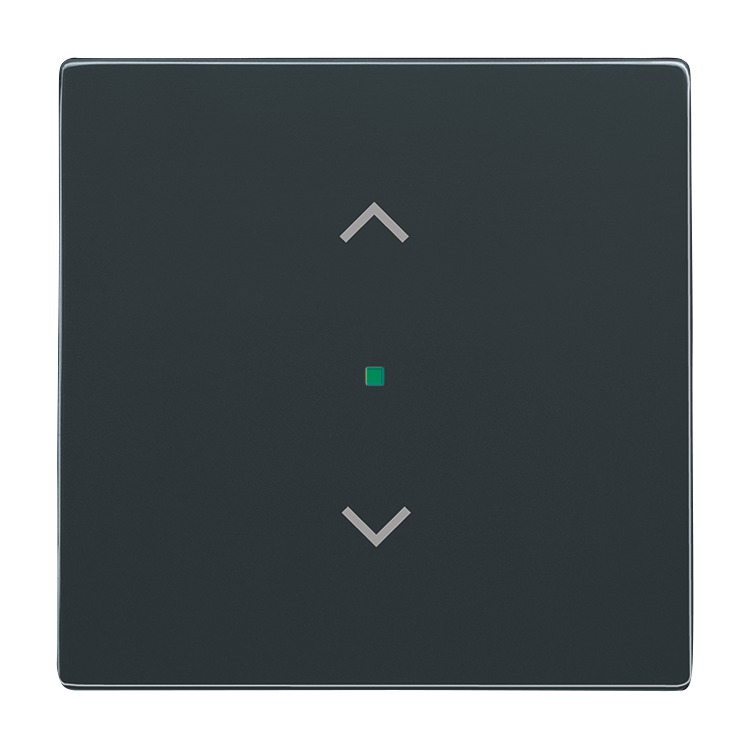

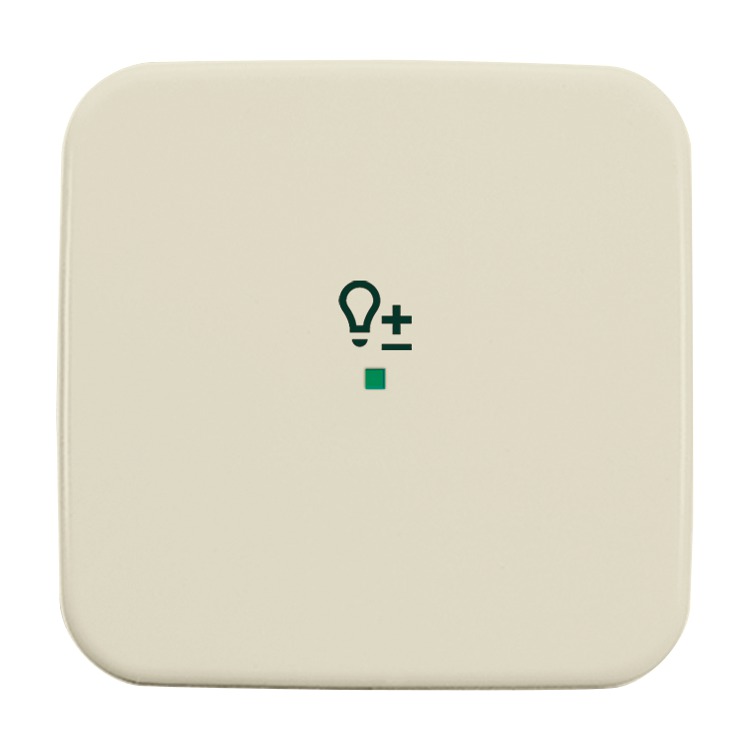

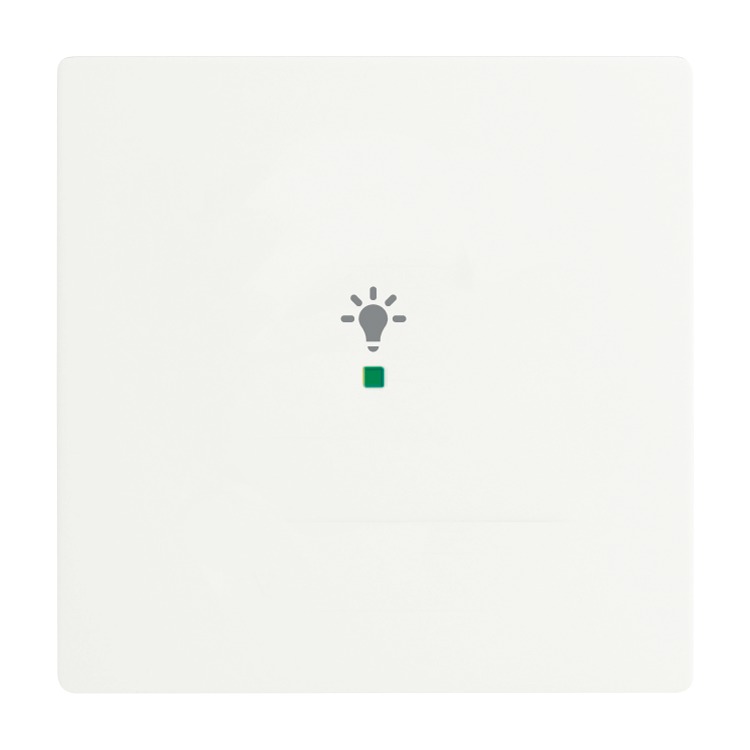

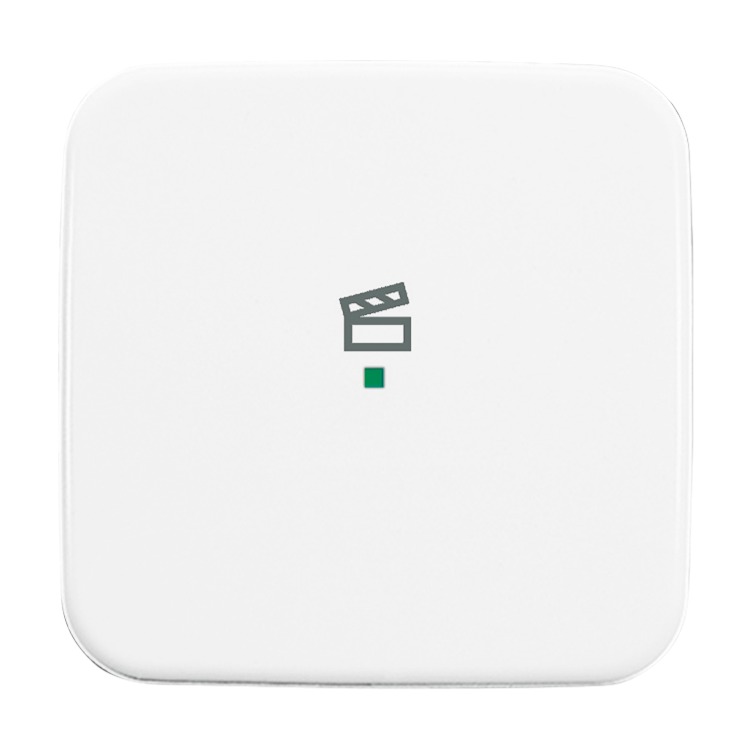

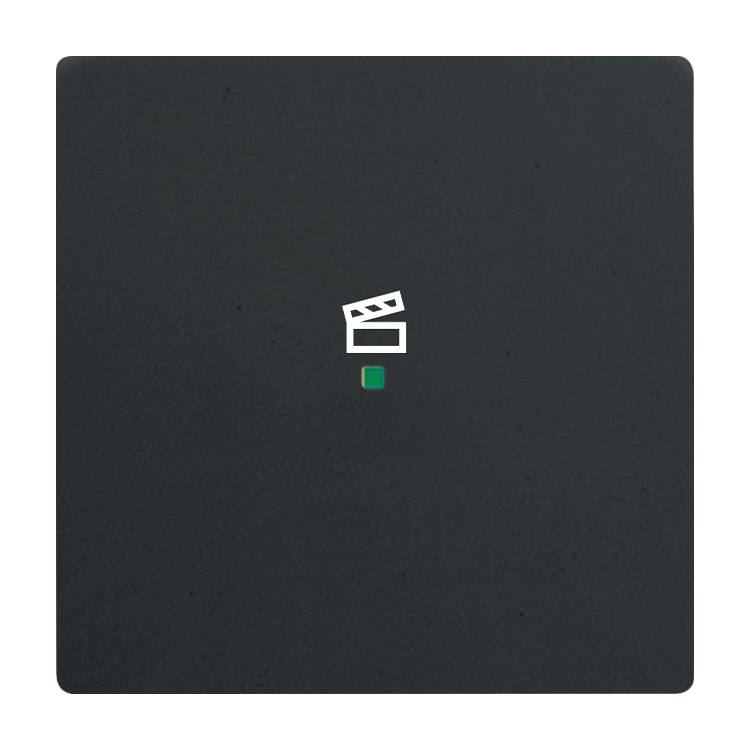

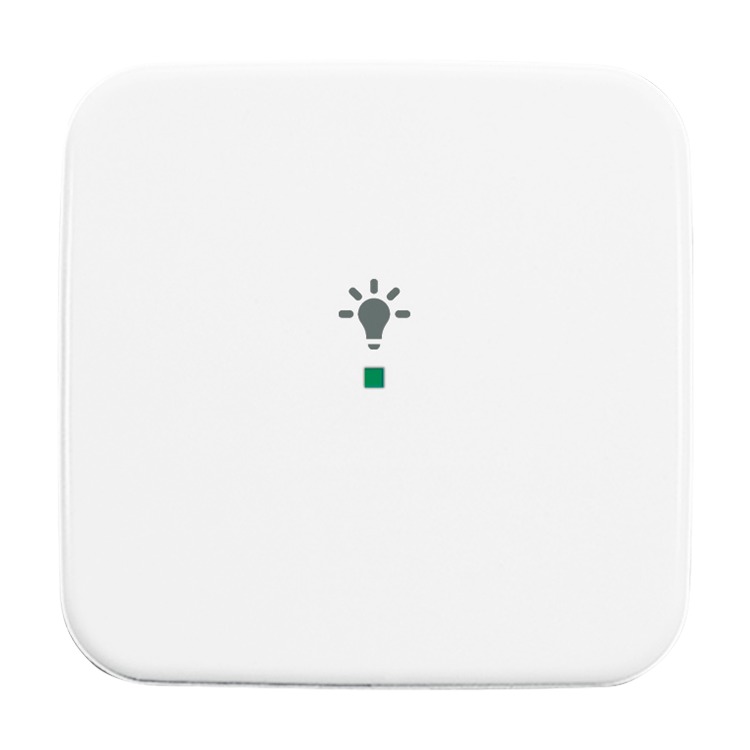

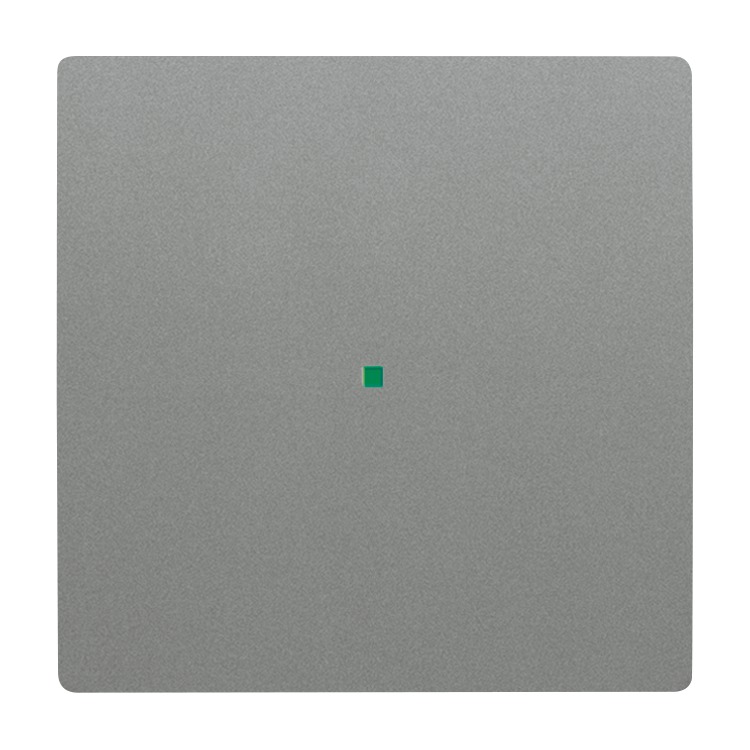

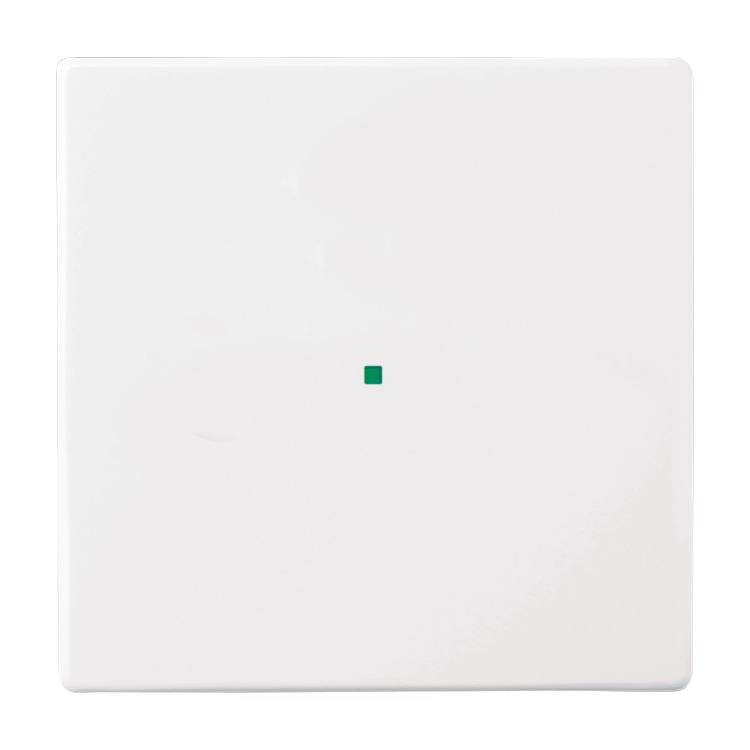

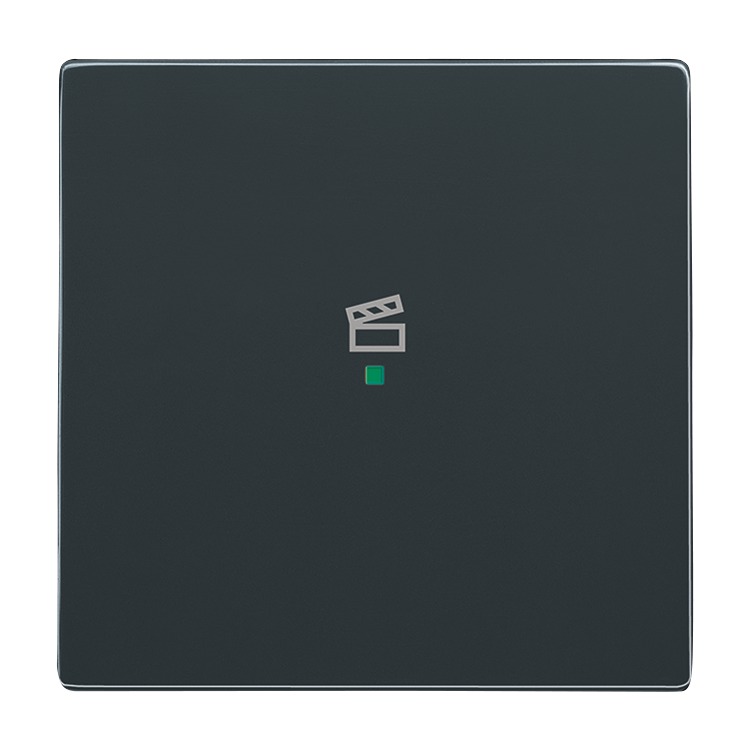

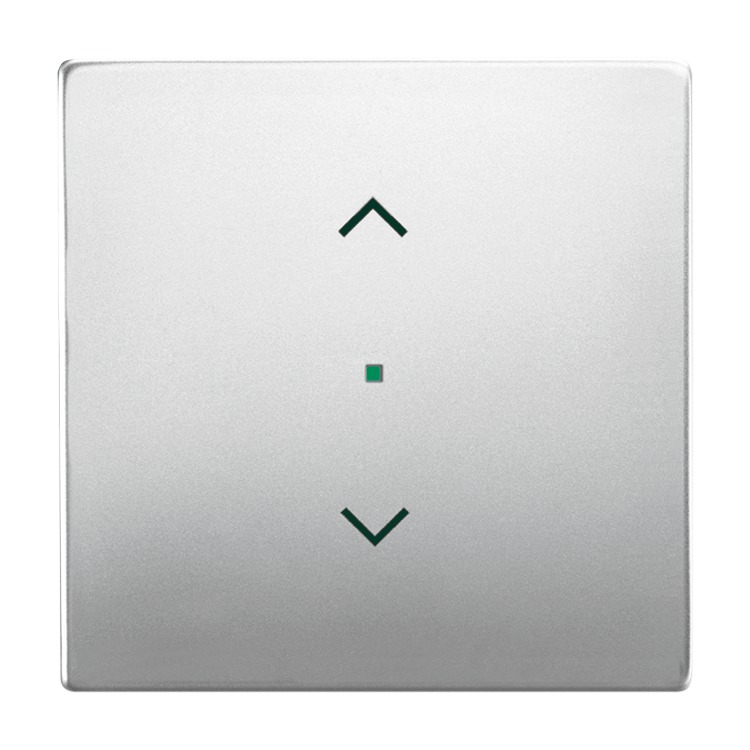

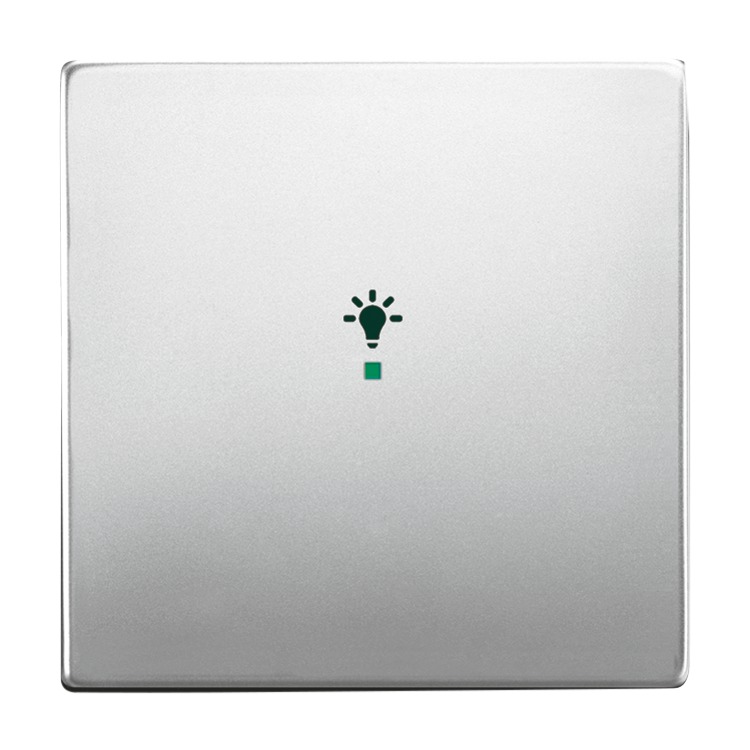

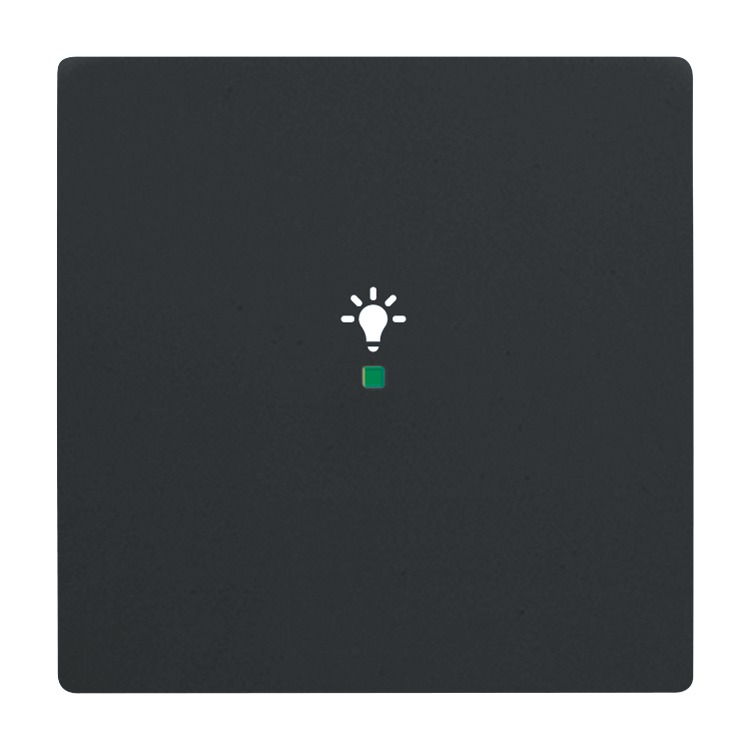

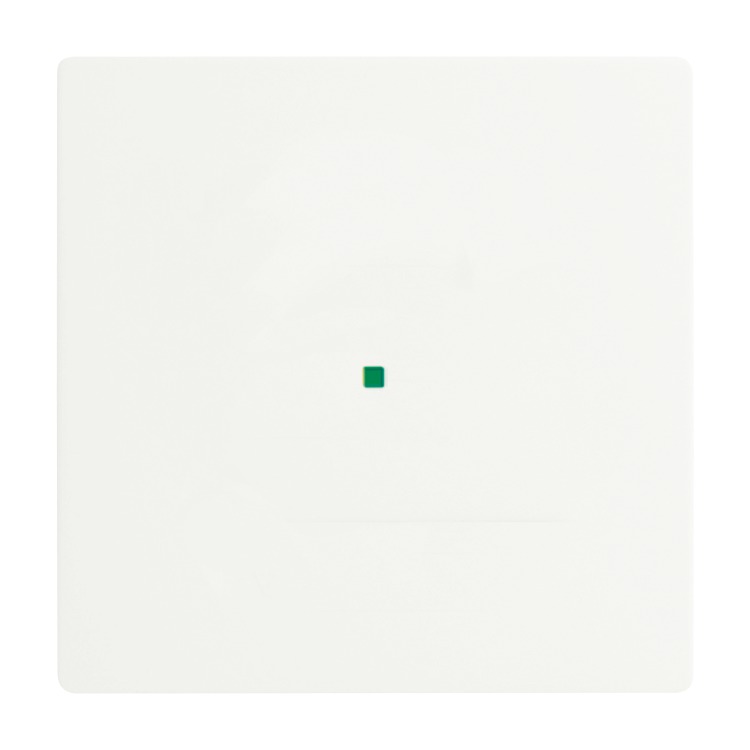

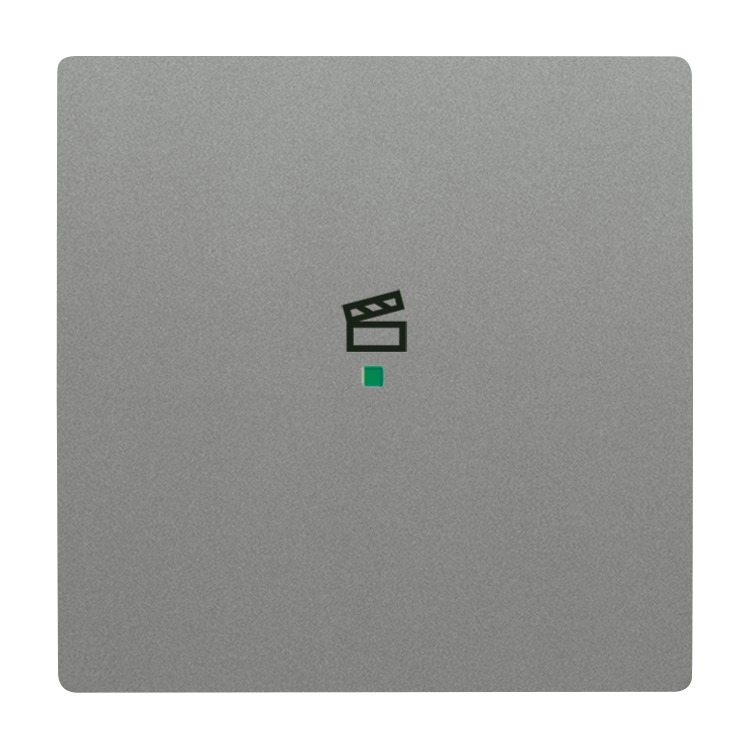

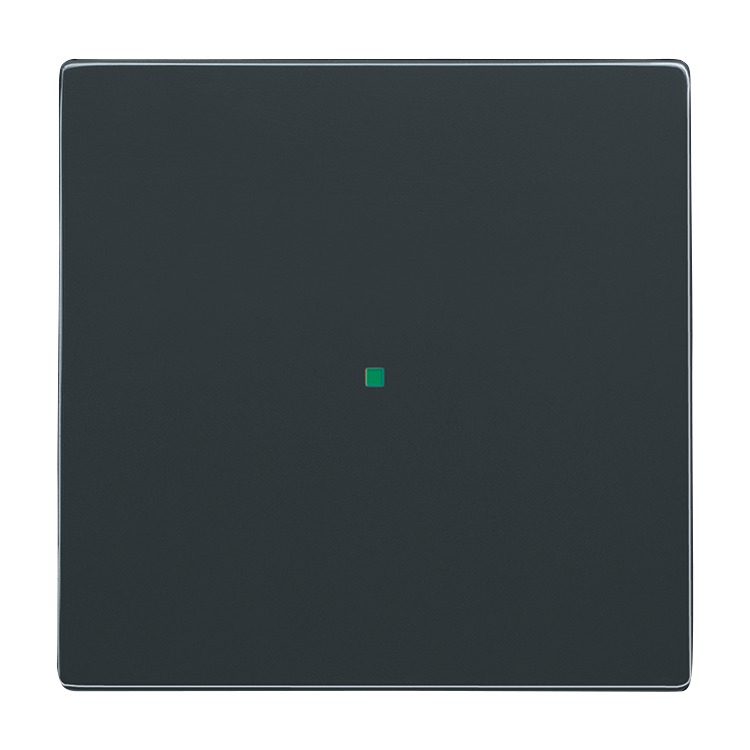

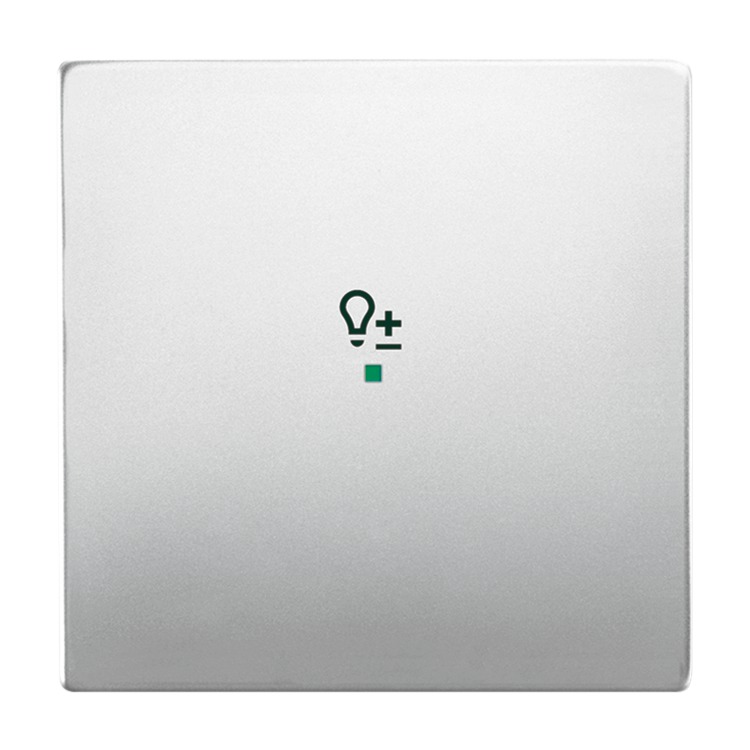

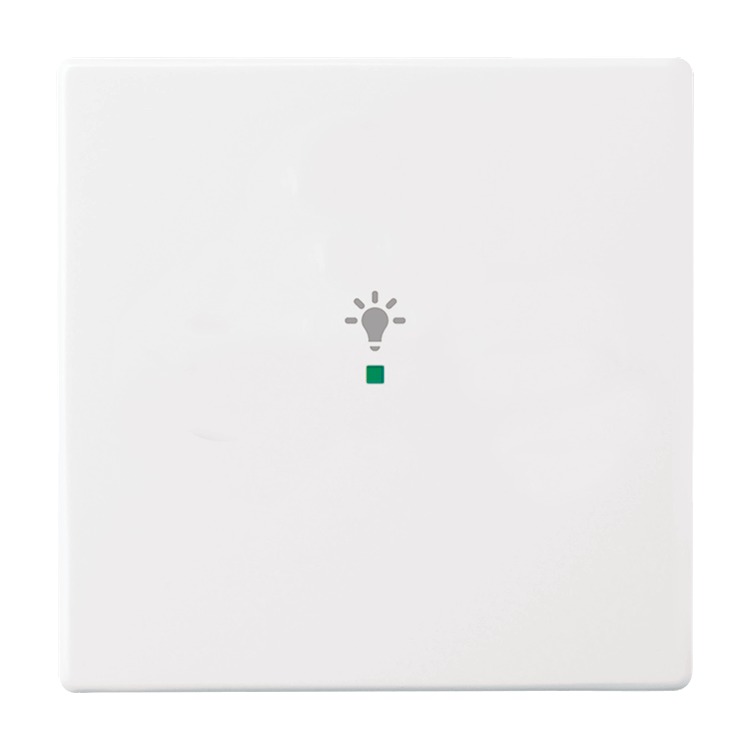

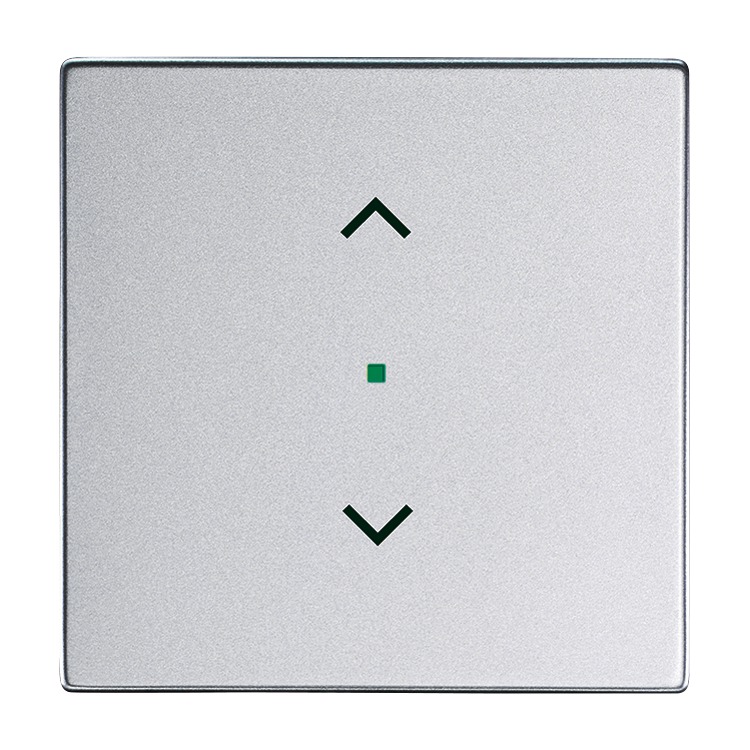

    Compatible with
