Sensor/dim actuator, 1/1gang, wireless
for ABB-free@home®

Functions at a glance

  • For dimming 230 V~ loads.
  • Communication with the free@home system is carried out wireless.
  • With integrated universal dimming actuator for controlling LEDs, incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps with conventional or electronic transformers, and dimmable energy-saving halogen lamps.
  • For dimmable Retrofit-LEDs (LEDi).
  • Dimming function is available also without prior programming (pre-configured).
  • Configuration can be changed later via the web interface (groups, scenes, etc.).
  • For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx.
  • 2-wire connection (neutral conductor not required)
  • 3-wire connection technology is possible as an option for improved load behaviour (for details see the online operating manual).
  • With 230 V extension unit input (dimming brighter/darker, switching).
  • With fixing claws.
  • Control element: Switch contacts top/bottom
  • Display elements: LED as light for orientation or display of the switching state
  • Rated voltage: 230 V~
  • Rated frequency: 50 Hz / 60 Hz
  • Outputs: 1 dimming channel
  • suitable for: 230 V incandescent lamps and low-voltage halogen lamps with conventional transformers or electronic transformer.
    • Rated output: 20 - 180 W/VA
  • suitable for: LEDi and energy-saving bulbs; typical
    • Rated output: 2 - 80 W/VA
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -20 °C - 70 °C
  • Dimensions: (L x W x D): 71 mm x 71 mm x 45 mm
  • Mounting depth: 32 mm
  • Programming via the web interface of the System Access Point.
  • Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.

    Order details

    Article No.:6212/1.1-WL
    Order No.:2CKA006200A0047
    Customs tariff number:85389091
    Price group:24
    Price:210,00 EUR plus VAT
    Info sheet:Download PDF

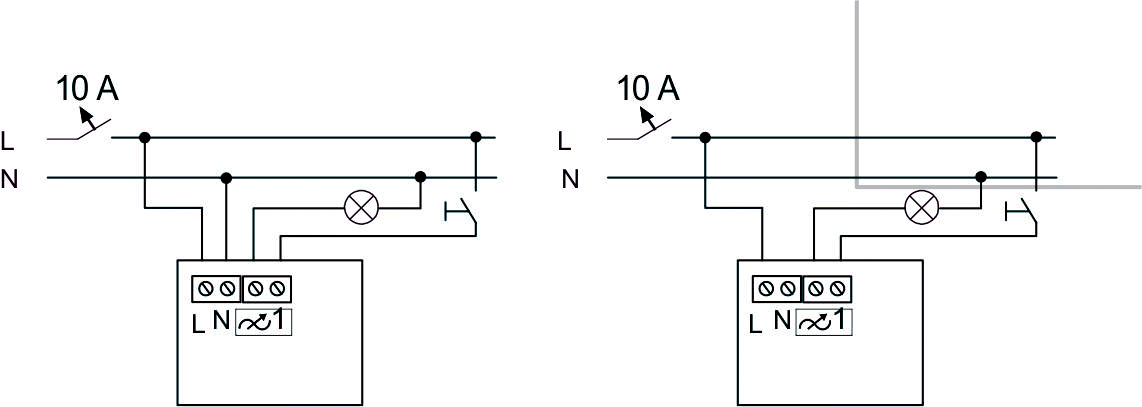

    Wiring diagram
    Compatible with
