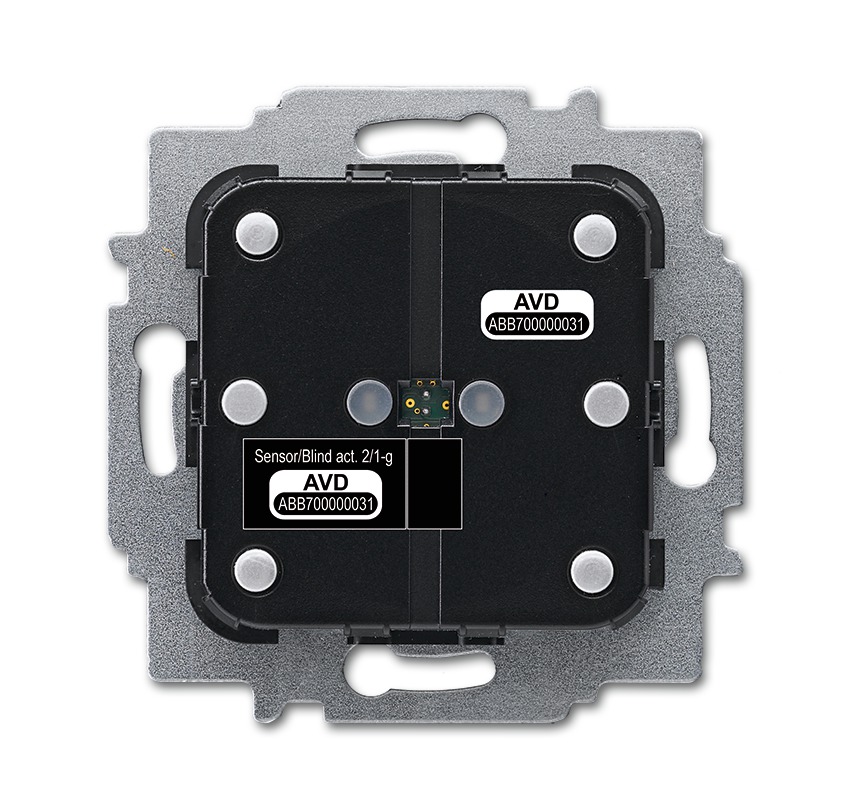

Blind actuator sensor, 2/1gang
for ABB-free@home®

Functions at a glance

  • For controlling blind or awning motors.
  • With integrated blind actuator.
  • Blind function is available also without prior programming (left sensor channel is pre-configured).
  • Configuration can be changed later via the web interface (groups, scenes, etc.).
  • The right sensor channel for programming additional functions (groups, scenes, etc.).
  • For contacting 2gang rocker 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx and 6234-2x-xxx.
  • The bus can be connected via enclosed terminal block.
  • When installing in the flush-mounted box, a spatial division between the bus cable and 127 V/230 V installation cable is to be adhered to! If this minimum distance is not possible, use electronic boxes or insulating tubes.
  • Control element: Switch contacts top/bottom
  • Display elements: LED as light for orientation or display of the switching state
  • Bus voltage: 24 V
  • Outputs: 2 Change-over contacts/normally open contact, potential-bound
  • suitable for: Operation mode Blind
    • Rated output: 920 VA
    • Rated current: 4 A
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -20 °C - 70 °C
  • Dimensions: (L x W x D): 71 mm x 71 mm x 45 mm
  • Mounting depth: 32 mm
  • Programming only with bus voltage applied via the web interface of the System Access Point.
  • Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.

    Order details

    Article No.:6213/2.1
    Order No.:2CKA006220A0018
    Customs tariff number:85389091
    Price group:24
    Price:129,00 EUR plus VAT
    Info sheet:Download PDF
    Wiring diagram
    Compatible with
