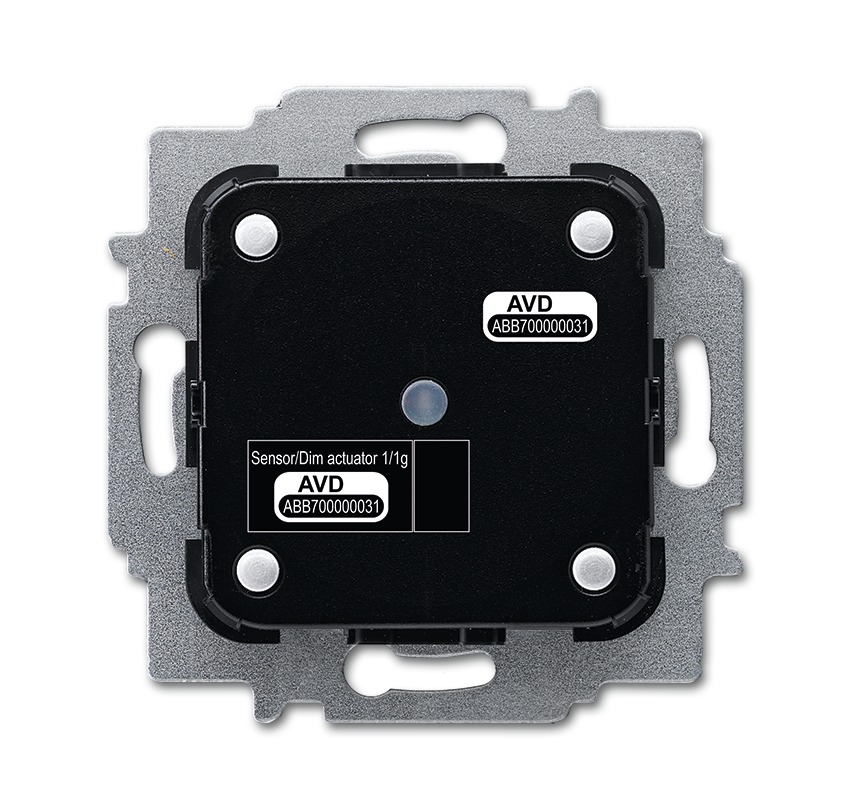

Dimming actuator sensor, 1/1gang
for ABB-free@home®

Functions at a glance

  • For dimming 230 V~ loads.
  • With integrated universal dimming actuator for controlling LEDs, incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps with conventional or electronic transformers, and dimmable energy-saving halogen lamps.
  • For dimmable Retrofit-LEDs (LEDi).
  • Dimming function is available also without prior programming (pre-configured).
  • Configuration can be changed later via the web interface (groups, scenes, etc.).
  • For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx.
  • The bus can be connected via enclosed terminal block.
  • When installing in the flush-mounted box, a spatial division between the bus cable and 230 V installation cable is to be adhered to! If this minimum distance is not possible, use electronic boxes or insulating tubes.
  • Control element: Switch contacts top/bottom
  • Display elements: LED as light for orientation or display of the switching state
  • Bus voltage: 24 V
  • Outputs: 1 dimming channel
  • suitable for: 230 V incandescent lamps and low-voltage halogen lamps with conventional transformers or electronic transformer.
    • Rated output: 10 - 180 W/VA
  • suitable for: LEDi and energy-saving bulbs; typical
    • Rated output: 2 - 80 W/VA
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -20 °C - 70 °C
  • Dimensions: (L x W x D): 71 mm x 71 mm x 45 mm
  • Mounting depth: 32 mm
  • Programming only with bus voltage applied via the web interface of the System Access Point.
  • Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.
