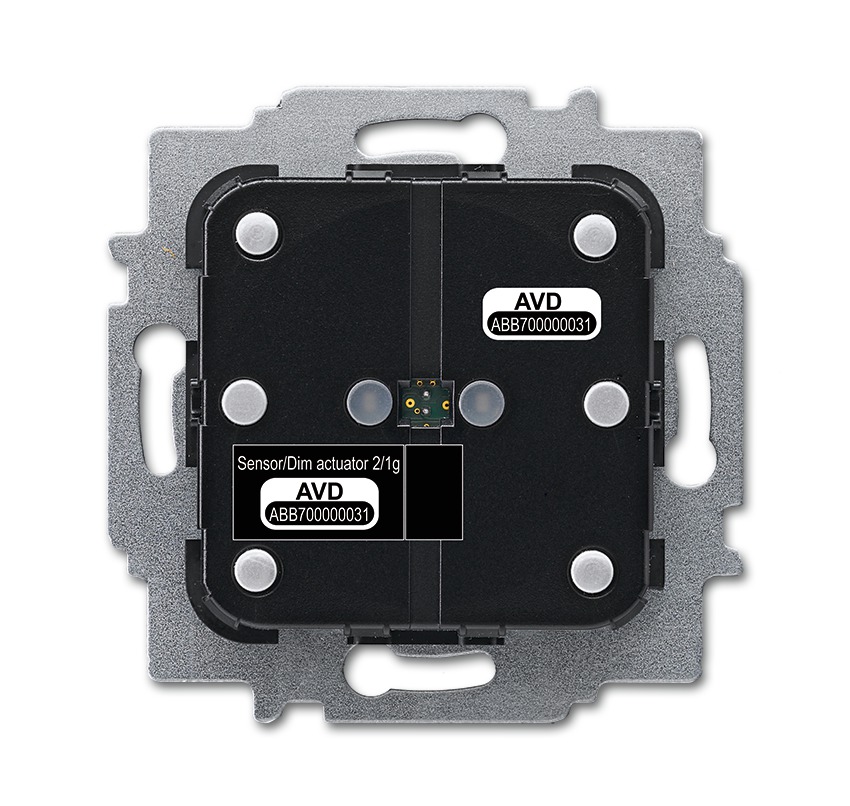

Functions at a glance

• For switching 127 V~/230 V~ consumers.
• With integrated switch actuator.
• Switching function is available also without prior programming (left sensor channel is pre-configured).
• Configuration can be changed later via the web interface (groups, scenes, etc.).
• The right sensor channel for programming additional functions (groups, scenes, etc.).
• For contacting 2gang rocker 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx and 6234-2x-xxx.

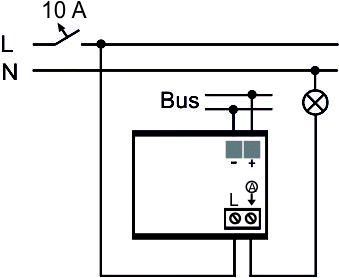

• The bus can be connected via enclosed terminal block.
• When installing in the flush-mounted box, a spatial division between the bus cable and 127 V/230 V installation cable is to be adhered to! If this minimum distance is not possible, use electronic boxes or insulating tubes.

• Control element: Switch contacts top/bottom
• Display elements: LED as light for orientation or display of the switching state

• Bus voltage: 24 V

• Outputs: 1 Normally open contact, potential free
• suitable for: ohmic
  • Rated output: 2300 W
  • Rated current: 10 A
• suitable for: capacitive
  • Rated output: 2300 VA
  • Rated current: 10 AX

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -20 °C - 70 °C

• Dimensions: (L x W x D): 71 mm x 71 mm x 45 mm
• Mounting depth: 32 mm

• Programming only with bus voltage applied via the web interface of the System Access Point.
• Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.
