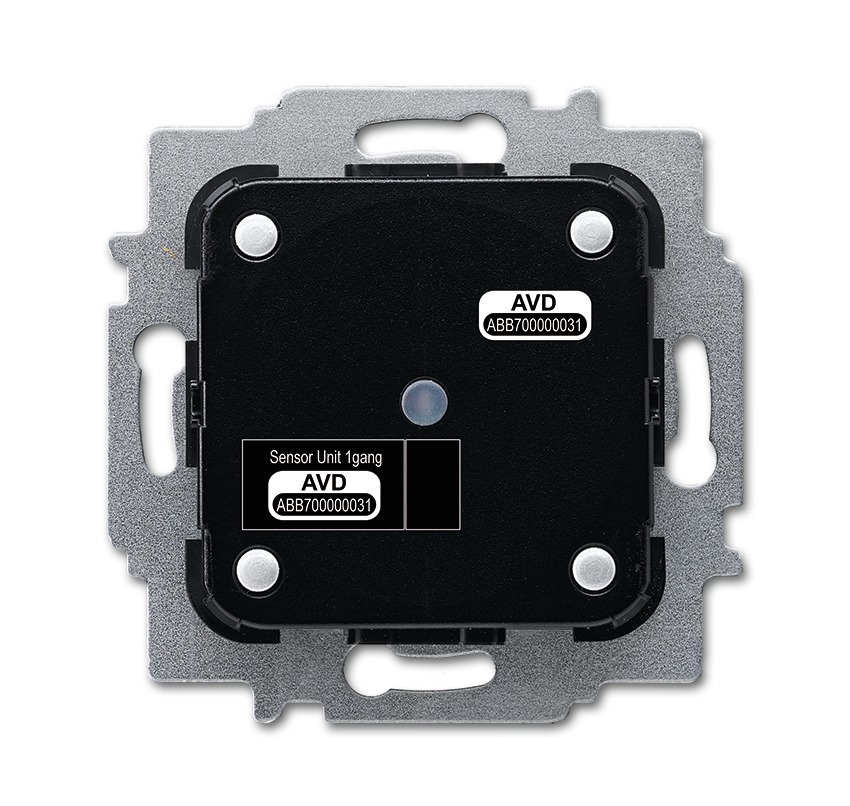

Functions at a glance

• For transmitting switching, push-button, dimming and blind commands to an ABB-free@home^® actuator.
• For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx.
• The bus can be connected via enclosed terminal block.

• Control element: Switch contacts top/bottom
• Display elements: LED as light for orientation or display of the switching state

• Bus voltage: 24 V

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -20 °C - 70 °C

• Dimensions: (L x W x D): 71 mm x 71 mm x 23 mm
• Mounting depth: 9 mm

• Programming only with bus voltage applied via the web interface of the System Access Point.
• Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.
