Functions at a glance

• Aufgrund des weltweit andauernden Mangels an Bauteilen kommt es zu erheblichen Lieferzeiten.
• For the central control of up to 16 configurable ABB-free@home^® functions.
• For the display of configurable system messages.
• A configurable primary function can be triggered with a multi-touch gesture.

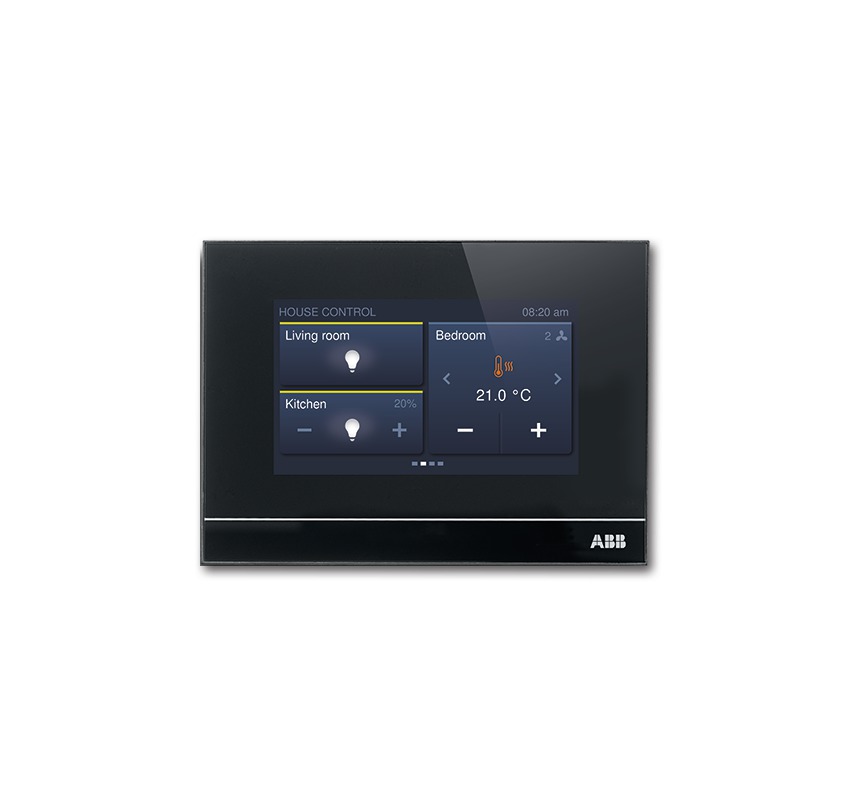

• Capacitive touch screen with closed glass surface.
• With integrated room temperature controller and temperature sensor.
• In connection with temperature sensor 6226/T the integrated room temperature controller can be fitted with a remote sensor.
• Suitable as room temperature controller extension unit (up to 8).

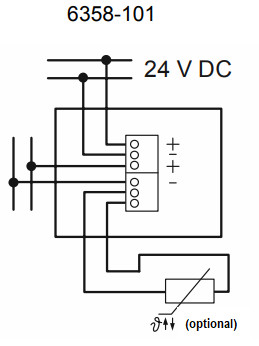

• Requires additional power supply 24 VDC; e.g. 6358-101.
• Power consumption: 150 mA
• Display size: 10.9 cm (4.3'')
• Display resolution: 480 x 854
• Mounting height: 8 mm

• Control element: freely programmable touch surfaces
• Display elements: 1 LCD display

• Bus voltage: 24 V-

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 40 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

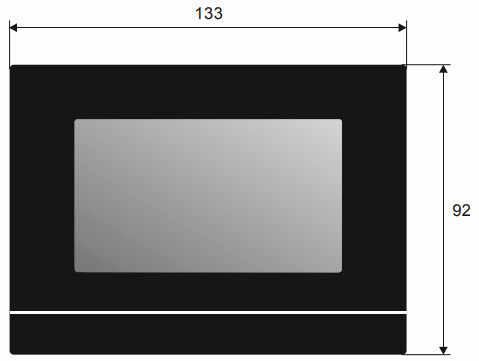

• Dimensions: (L x W x D): 92 mm x 133 mm x 53 mm

• No additional commissioning software is required.
• Programming only with bus voltage applied via the web interface of the System Access Point.
• Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.
