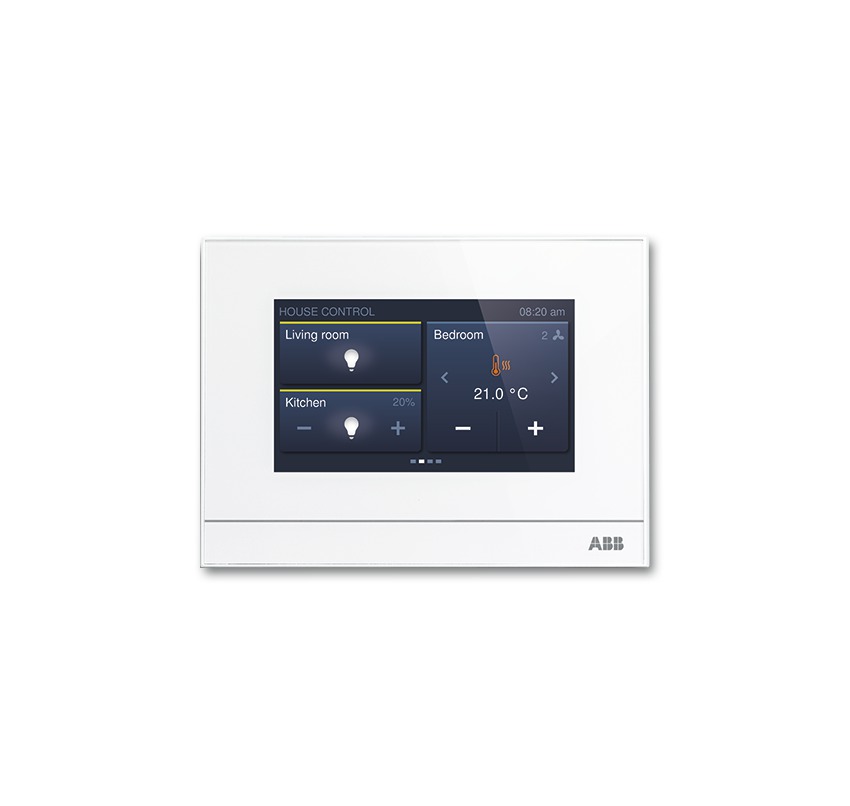

Functions at a glance

  • Aufgrund des weltweit andauernden Mangels an Bauteilen kommt es zu erheblichen Lieferzeiten.
  • For the central control of up to 16 configurable ABB-free@home® functions.
  • For the display of configurable system messages.
  • A configurable primary function can be triggered with a multi-touch gesture.
  • Capacitive touch screen with closed glass surface.
  • With integrated room temperature controller and temperature sensor.
  • In connection with temperature sensor 6226/T the integrated room temperature controller can be fitted with a remote sensor.
  • Suitable as room temperature controller extension unit (up to 8).
  • Requires additional power supply 24 VDC; e.g. 6358-101.
  • Power consumption: 150 mA
  • Display size: 10.9 cm (4.3'')
  • Display resolution: 480 x 854
  • Mounting height: 8 mm
  • Control element: freely programmable touch surfaces
  • Display elements: 1 LCD display
  • Bus voltage: 24 V-
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 40 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 92 mm x 133 mm x 53 mm
  • No additional commissioning software is required.
  • Programming only with bus voltage applied via the web interface of the System Access Point.
  • Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.

    Order details

    Article No.:6226-611
    Order No.:2CKA006220A0007
    EAN:4011395180228
    Customs tariff number:85371091
    Price group:24
    Price:497,00 EUR plus VAT
    Info sheet:Download PDF
    Dimensions
    Wiring diagram
