Functions at a glance

  • With rotary knob/switch and push switch.
  • Rated voltage: 250 V~
  • Rated current: 10 AX
  • Protection class (device): IP 20
    • Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
    • Blind switches/push switches prevents fast change over between operating directions.

      Order details

      Article No.:2713 U
      Order No.:2CKA001101A0542
      Customs tariff number:85365080
      Price group:01
      Price:31,73 EUR plus VAT
      Info sheet:Download PDF

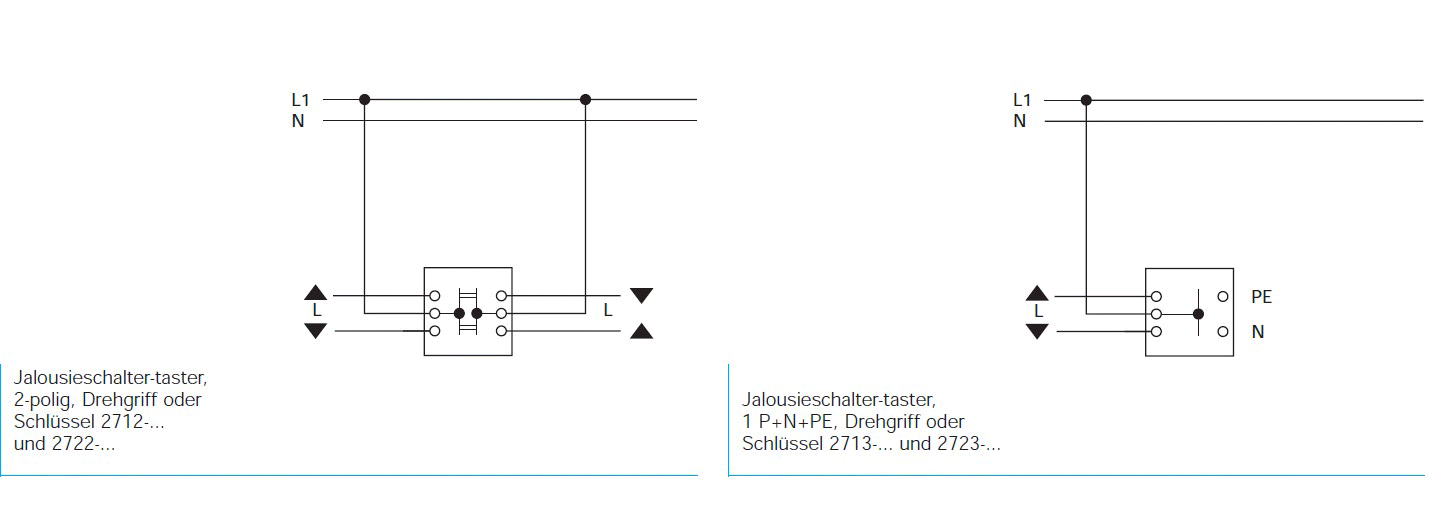

      Wiring diagram
      Blind switch-push switch, 1 P+N+PE, rotary switch or key 2713-.. and 2733-..
