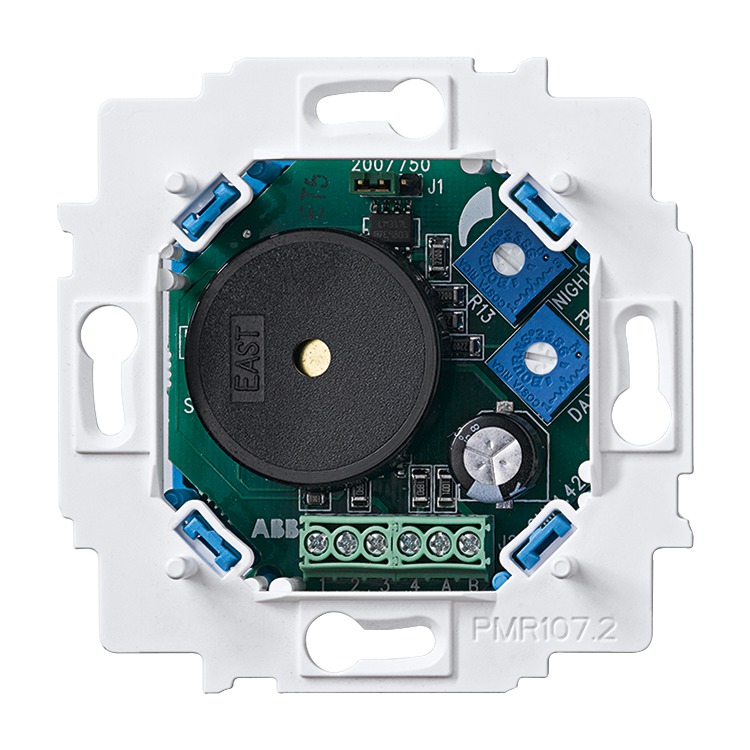

Buzzer insert

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • Buzzer for acoustic alarm signalling.
  • Permanent signal.
  • Type: 70 dB, distance apart 1 m.
  • 2 frequencies (200 Hz/750 Hz) selectable via internal jumper.
  • Volume, can be preset for day and night mode.
  • Rated voltage: 15 V~
  • Rated frequency: 50 Hz
  • Protection class (device): SELV
  • Temperature range (device): 5 °C - 40 °C
  • Storage temperature range: -40 °C - 70 °C
    • No claw. Screw-fixing via keyholes.

      Order details

      Article No.:1561 U-101
      Order No.:2CKA001582A0413
      EAN:4011395207659
      Customs tariff number:85365080
      Price group:14
      Price:83,40 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Instruction manual
      Certificates

      Related products

      Compatible with
      Page 1 of 2
      Item was added to the parts list.

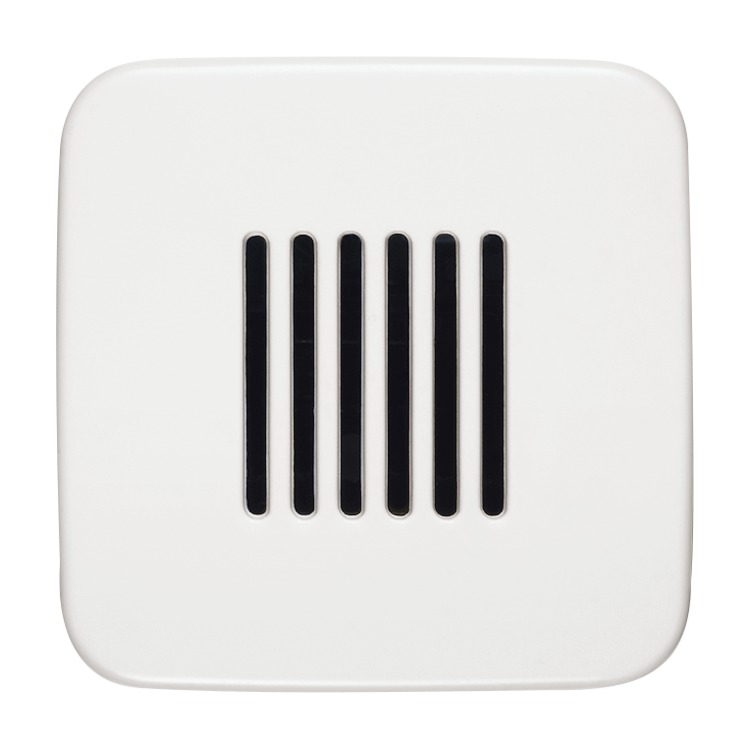

      Cover plate with loudspeaker grid 1574 C-214
      2CKA001582A0351

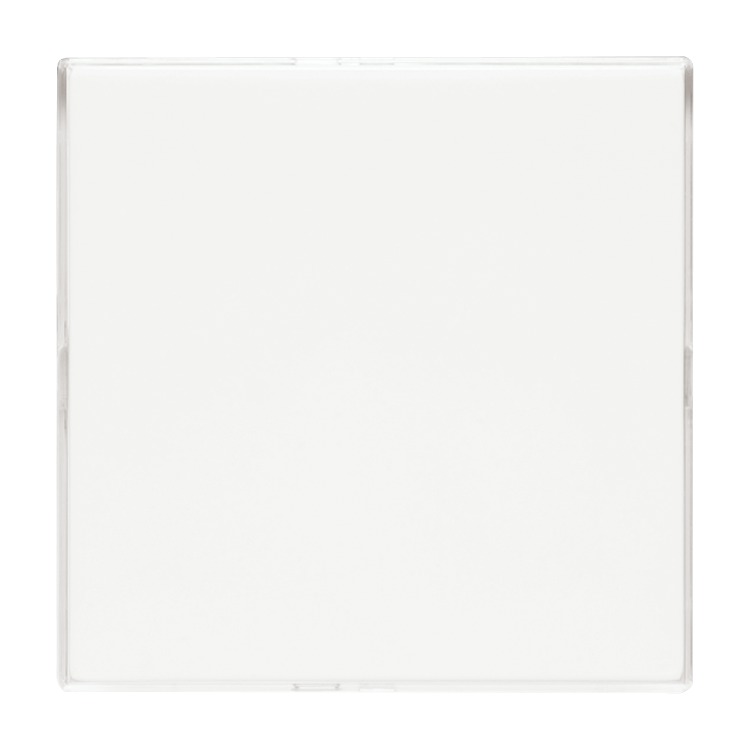

      Cover plate with labelling field 1576 CN-84
      2CKA001582A0355

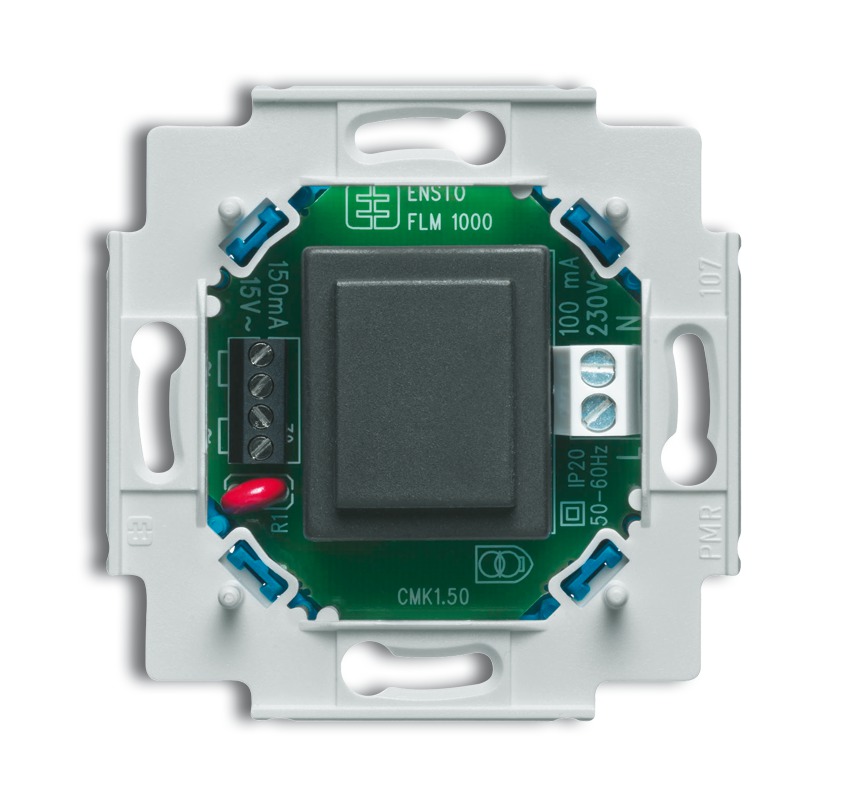

      Power supply insert 1518 U
      2CKA001582A0331

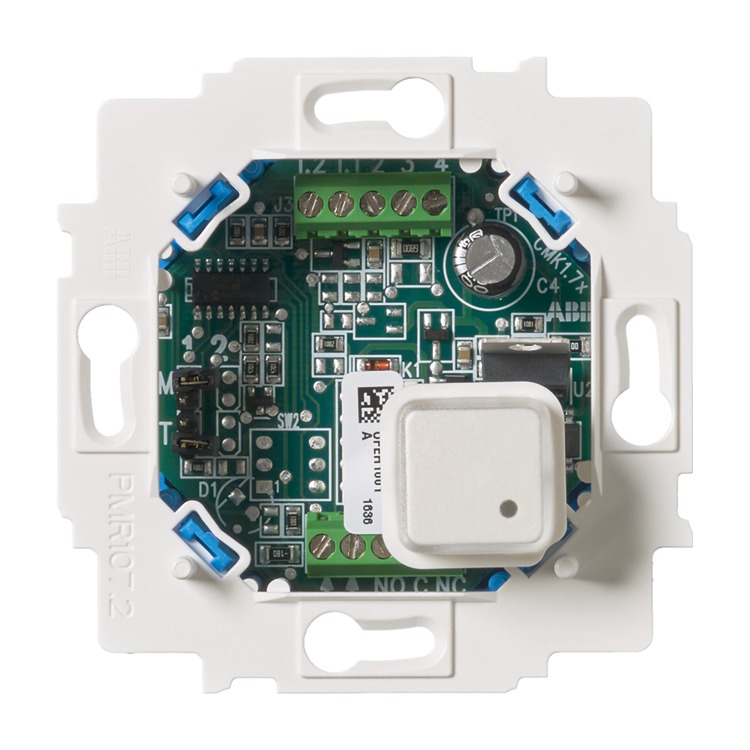

      Monitoring unit with cancel push button 1511 U
      2CKA001582A0332

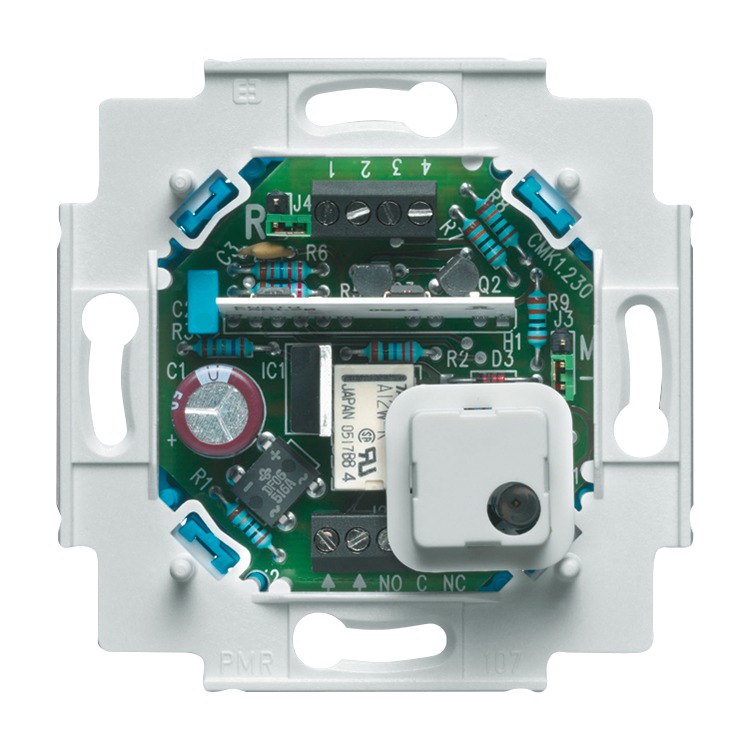

      Busch-Leakage guard insert with cancel push button 1531 U
      2CKA001582A0334
