Functions at a glance

• 3 wire connection (neutral conductor required).

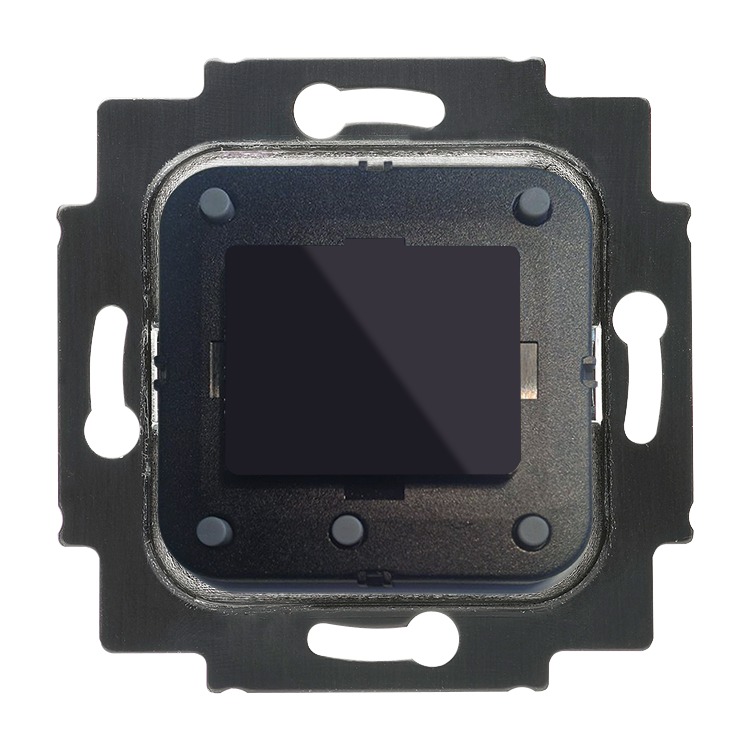

• Relay insert with proximity sensor.
• For contactless ON/OFF switching of electric loads, e.g. lights.
• For switching incandescent lamps, 230 V tungsten halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are actuated via transformers.
• Switches when detecting an approach at < approx. 5 cm.
• Operation also possible via conventional push buttons (2020 US, 2021/6 UK).

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz

• Outputs: 1 Normally open contact, potential-bound
• suitable for: 230 V incandescent lamps, 230 V halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are operated via transformers.
  • Rated output: 2300 W/VA
  • Rated current: 10 AX

• Temperature range (device): -25 °C - 55 °C
