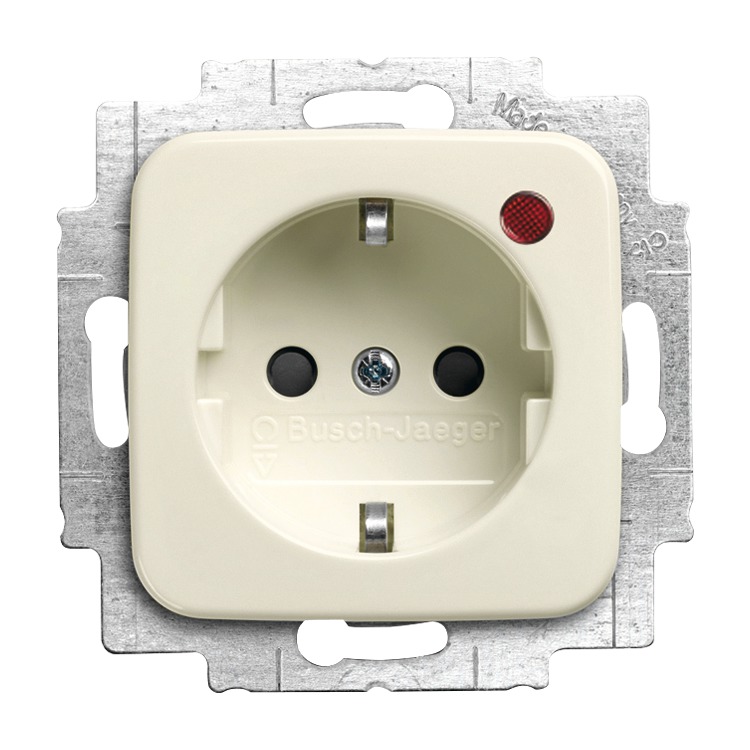

Busch-Protector® SCHUKO® socket outlet
with overvoltage protection

alpine white
Take over in my parts list / tender specifications

Functions at a glance

  • Shuttered.
  • With screw-type terminals.
  • DP (2 P + E)
  • With integrated and external signalling contact.
  • Device protection for technical sensitive equipment such as computer, entertainment electronics and building management systems.
  • Effectively reduces overvoltage peaks occurring between the sub-distribution switch board and SCHUKO® socket outlet.
  • Arrestor test class: classification Type 2
  • Rated voltage: 250 V~
  • Secondary: 250 V~
  • Rated current: 16 A
  • Protection class (device): IP 20
    • SCHUKO® socket outlet Safety+ with shutter (integrated shutter according to VDE 0620).
    • RAL colour number: Ähnlich 1013

    Order details

    Article No.:2310 EUGL/VAB-212
    Order No.:2CKA002013A5315
    EAN:4011395123010
    Customs tariff number:85366990
    Price group:19
    Price:235,00 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Instruction manual
    Certificates
    Films on application
    Dimensions
    Wiring diagram
    SCHUKO® socket outlet insert with overvoltage protection 2310 EUGL/VA-...
