My parts list/tender specifications

Actions:

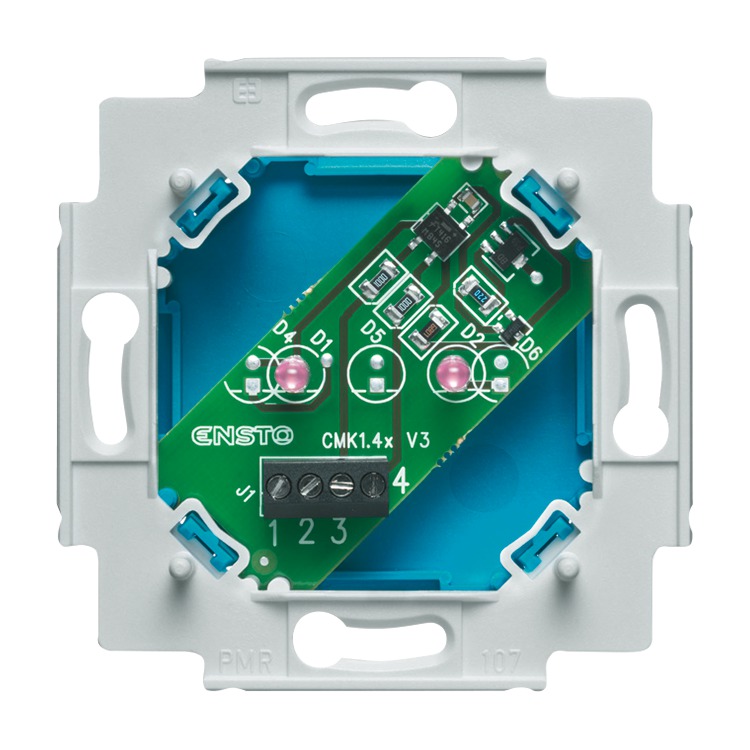

Indication Lamp Mechanism
yellow

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • For optical alarm/status signal.
  • Call signalling in accordance with DIN VDE 0834.
  • Permanent light.
  • Alarm activation by applying the operating voltage.
  • Maintenance free due to using LEDs.
  • Rated voltage: 15 V~
  • Rated frequency: 50 Hz
  • Protection class (device): IP 20
  • Temperature range (device): 5 °C - 40 °C
  • Storage temperature range: -40 °C - 70 °C
    • No claw. Screw-fixing via keyholes.

      Order details

      Article No.:1564 U-15
      Order No.:2CKA001582A0340
      EAN:4011395092583
      Customs tariff number:85365080
      Price group:14
      Price:62,61 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Instruction manual
      Certificates
      Wiring diagram
      Light signal insert, 1564 UC-1x
