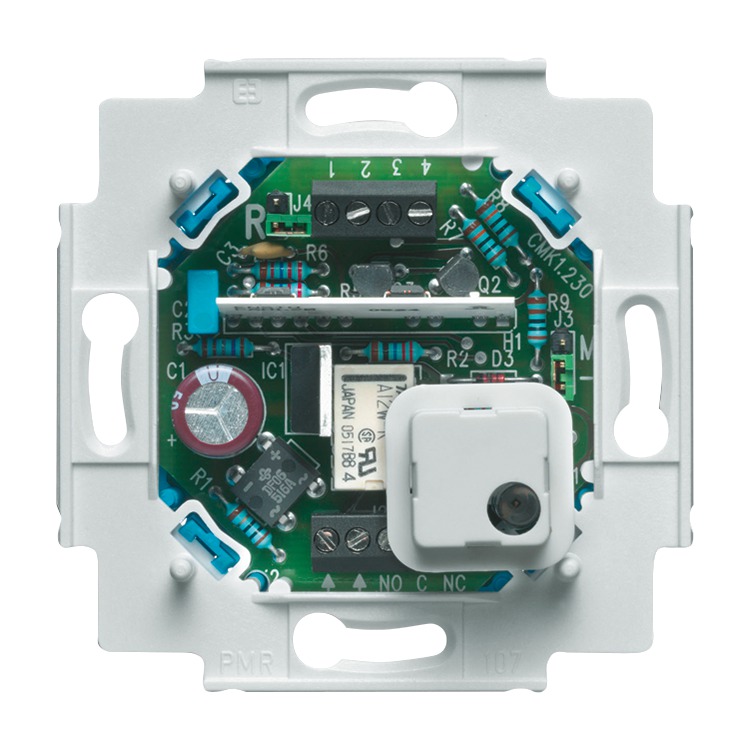

Busch-Leakage guard insert
with cancel push button
Functions at a glance
- For surveillance of water leakages in kitchen or basements.
- For detecting conductive liquids.

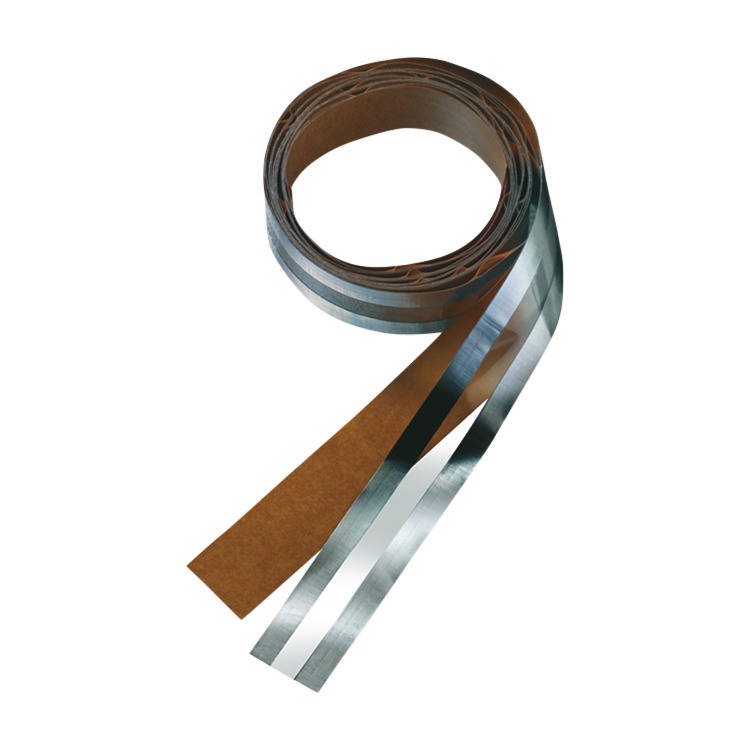

- The detection is effected via the separately available sensor tape 1538/02.
- Optical alarm signals via flashing cancel button.
- Optional visual or acoustic indicator with Busch-Alarm signal insert 1563 U-12 or buzzer insert 1561 U to be ordered separately.
- Reset mode (immediate/only after moisture is removed) selectable using internal jumper.
- Control element: Resetting key
- Display elements: LED push button backlighting
- Rated voltage: 15 V~
- Rated frequency: 50 Hz
- Power dissipation: 1 W
- Outputs: 1 Normally open contact, potential-bound
- Control/Signal outputs: 1 1gang 2way, insulated, 42 V~/60 V-, 30 W/VA
- Protection class (device): IP 20
- Temperature range (device): 5 °C - 40 °C
- Storage temperature range: -40 °C - 70 °C
- No claw. Screw-fixing via keyholes.
Order details
| Article No.: | 1531 U |
| Order No.: | 2CKA001582A0334 |
| EAN: | 4011395092521 |
| Customs tariff number: | 85365080 |
| Price group: | 14 |
| Price: | 198,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates

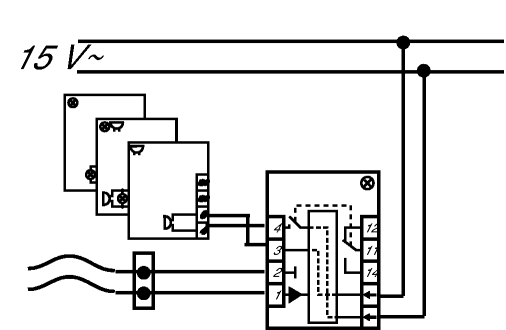

Wiring diagram
Busch-Leakage guard insert 1531 U.
