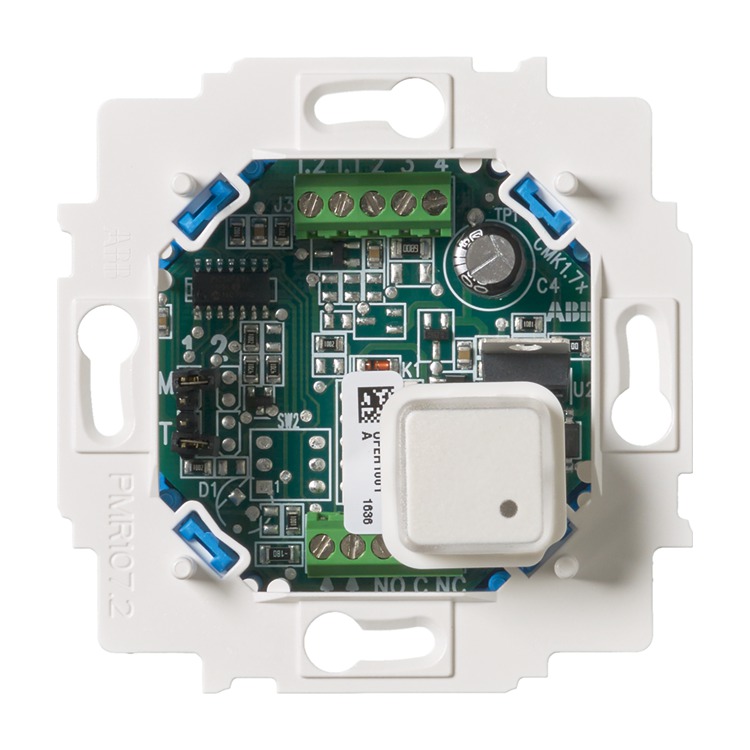

Monitoring unit
with cancel push button
Functions at a glance
- Operates as normal alarm panel.
- For monitoring a break or short circuit in a current loop.
- Selectable minimal short-circuit/interruption duration (0/2 sec) until alarm is given via internal jumper.
- Storage of the alarm status (can be switched off).
- Control element: Resetting key
- Display elements: LED push button backlighting
- Rated voltage: 15 V~
- Rated frequency: 50 Hz
- Power dissipation: 1 W
- Outputs: 1 Normally open contact, potential-bound
- Control/Signal outputs: 1 1gang 2way, insulated, 42 V~/60 V-, 30 W/VA
- Protection class (device): IP 20
- Temperature range (device): 5 °C - 40 °C
- Storage temperature range: -40 °C - 70 °C
- No claw. Screw-fixing via keyholes.
Order details
| Article No.: | 1511 U |
| Order No.: | 2CKA001582A0332 |
| EAN: | 4011395092491 |
| Customs tariff number: | 85365080 |
| Price group: | 14 |
| Price: | 190,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Wiring diagram

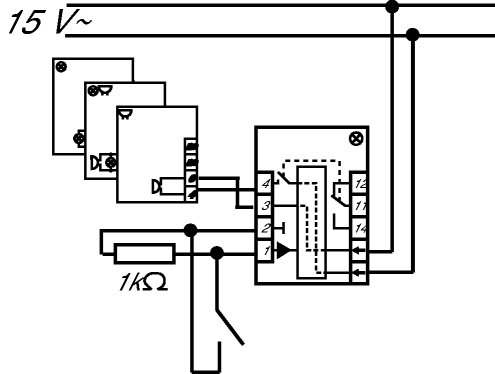

Monitoring unit, 1511 U. Closing the contact triggers 1511 U. The operating voltage 15V~ is switched through to 3+4; floating 1gang 2way contact element 11-12-14 switches. (Reset only possible through integrated reset push-switch on device.)
