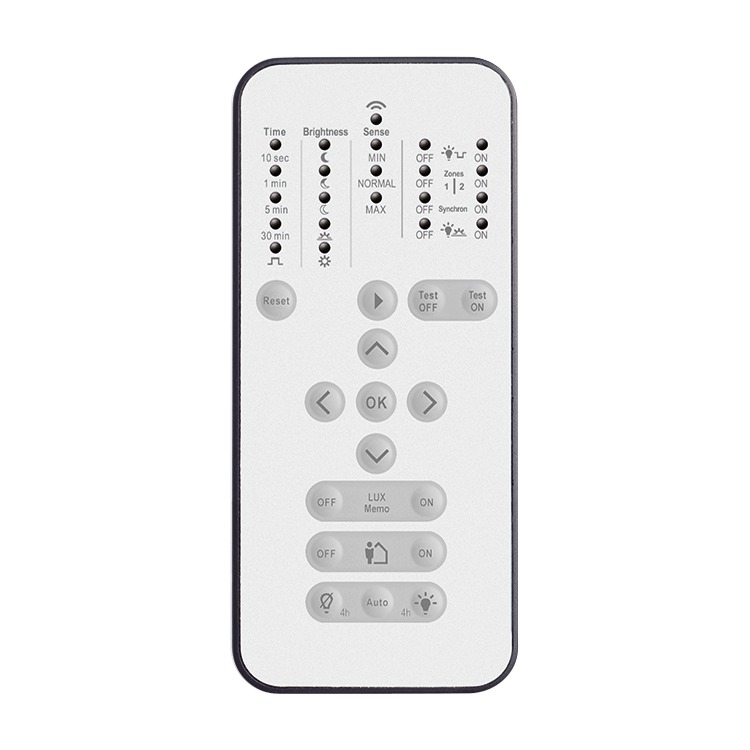

IR service remote control
Functions at a glance

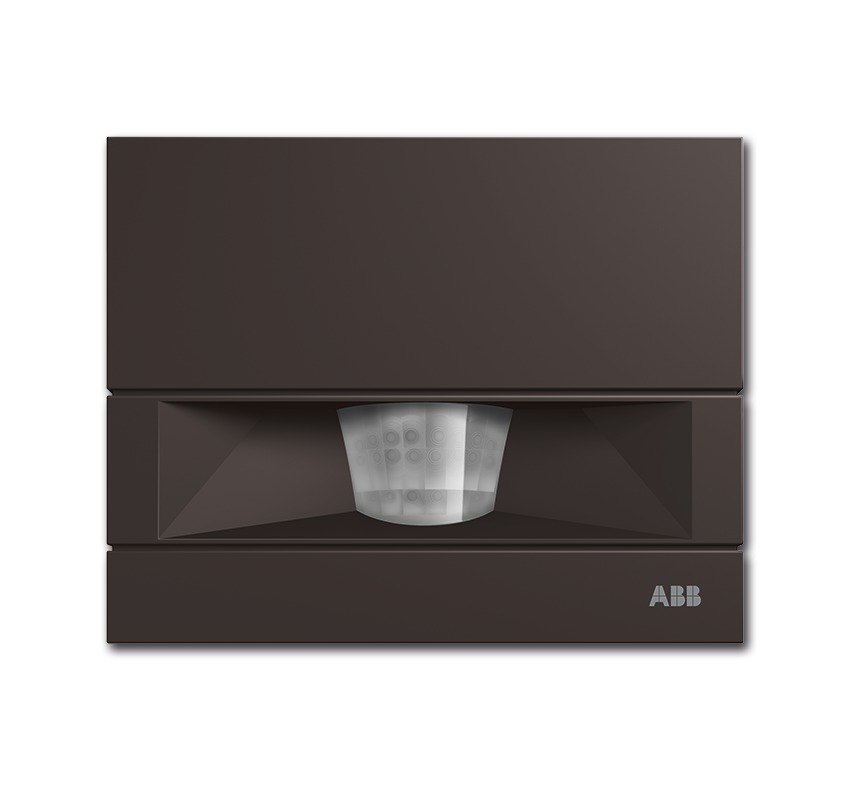

- For Busch-Watchdog 110 MasterLINE.
- For Busch-Watchdog 220 MasterLINE.
- For Busch-Watchdog 220 MasterLINE select.
- For Busch-Watchdog 220 MasterLINE premium.

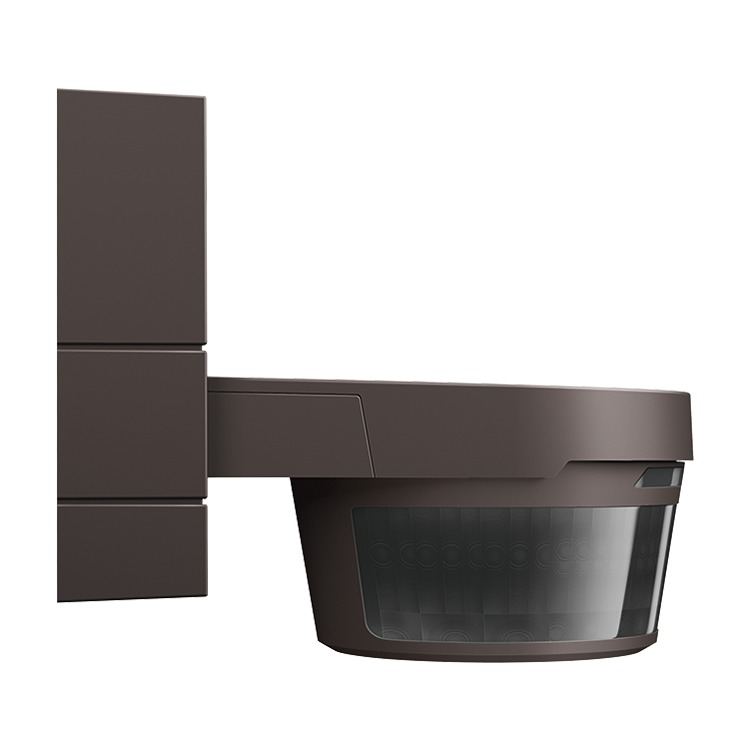

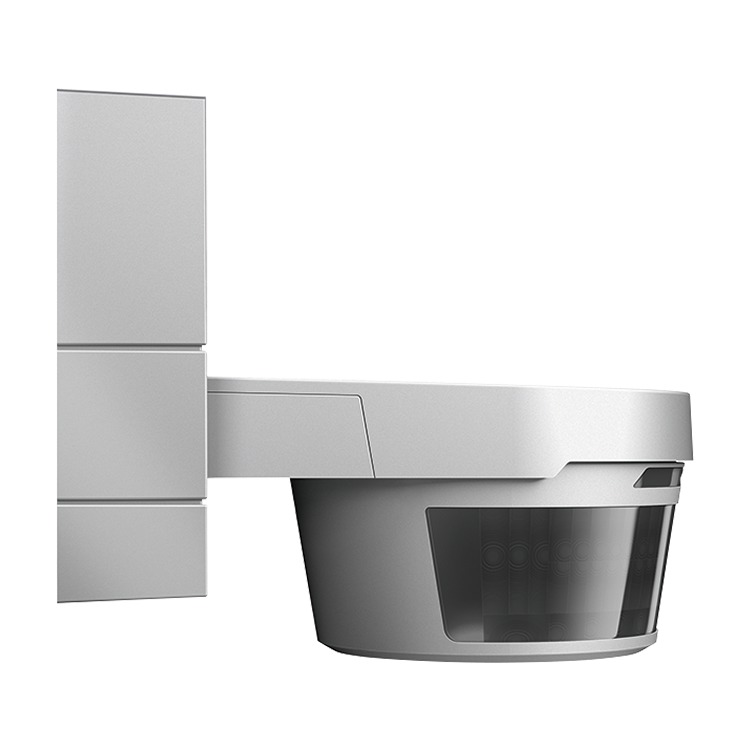

- For Busch-Watchdog 280 MasterLINE.
- The following functions/settings can be activated depending on device type:
- Activating/deactivating light ON for 4 hours.
- Activating/deactivating light for 4 hours.
- Activating/deactivating presence simulation.
- Setting / resetting current brightness value as limit value to device settings.
- Activating/deactivating test mode.
- Calling up settings stored in the remote control.
- Reset to factory default settings.
- Activate/deactivate dynamic forced switch-off.
- Activating/deactivating 2-zone operation.
- Activating/deactivating synchronous mode.
- Activating/deactivating twilight switch operation.
- Setting of switch-off delay or short-time pulse.
- Setting of the brightness limit value.
- Adjusting the sensitivity.
- With coded transmission signal.
- Power supply: lithium button cell battery Type CR2025.
- Battery life: typically 2 years.
- Rated voltage: 3 V-
- Protection class (device): IP 40
- Temperature range (device): 0 °C - 45 °C
- Dimensions: (L x W x D): 125 mm x 56 mm x 10 mm
- Battery included in delivery.
Order details
| Article No.: | 6842-101 |
| Order No.: | 2CKA006800A2582 |
| EAN: | 4011395151211 |
| Customs tariff number: | 85437090 |
| Price group: | 29 |
| Price: | 37,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
