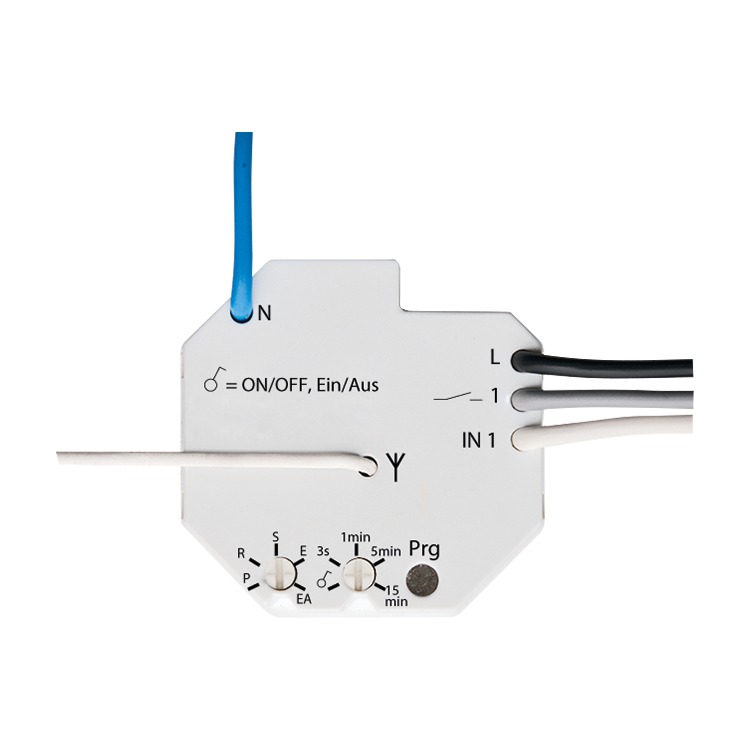

WaveLINE switch actuator, 1gang, with extension unit

Functions at a glance

  • For wireless switching of electrical loads.
  • Functions via radio control: ON/OFF, timer and light scene control.
  • Functions via the extension unit: ON/OFF, timer and sending a radio control telegram.
  • Operation via conventional push button (2020 US/2021/6 UK) possible.
  • Actuation of the extension unit (via conventional push-button) causes the output to switch and a radio control telegram to be sent.
  • Actuation of extension unit in ON/OFF function: Alternate sending of an ON/OFF telegram.
  • Actuation of extension unit in timer function: Sending of an ON telegram.
  • For Busch-Watchdog WaveLINE.
  • For wall mounted transmitter Waveline 6731-xxx, 6732-xxx und 6733-xxx.
  • For remote control WaveLINE 6780.
  • Switch-off delay: Adjustable to 5 seconds, 1-5-15 minutes.
  • Repeater function can be activated for extended range.
  • For universal attachment or installation.
  • 3 wire connection (neutral conductor required).
  • For installation in (deep) flush-mounted boxes to German Standard DIN 49073.
  • Controllable up to 32 transmission addresses.
  • Send/receive frequency: 868 MHz.
  • Free-field range: approx. 100 m.
  • Control element: Adjustable potentiometer
  • Display elements: Status indication of output via LED.
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz
  • Outputs: 1 Normally open contact, potential-bound
  • suitable for: Resistive load
    • Rated output: 2300 W
    • Rated current: 10 A
  • suitable for: capacitive
    • Rated output: 2300 VA
    • Rated current: 10 AX
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Dimensions: (L x W x D): 47 mm x 48 mm x 22 mm
  • Mounting depth: 25 mm
  • For further information please check the current Online-Catalogue.
  • RAL colour number: 9016
GluehlampeTrafoElektronisches-TrafoLeuchtstofflampe

Order details

Article No.:6701-101
Order No.:2CKA006700A0039
EAN:4011395182628
Customs tariff number:85389091
Price group:19
Price:148,00 EUR plus VAT
Info sheet:Download PDF
