Functions at a glance

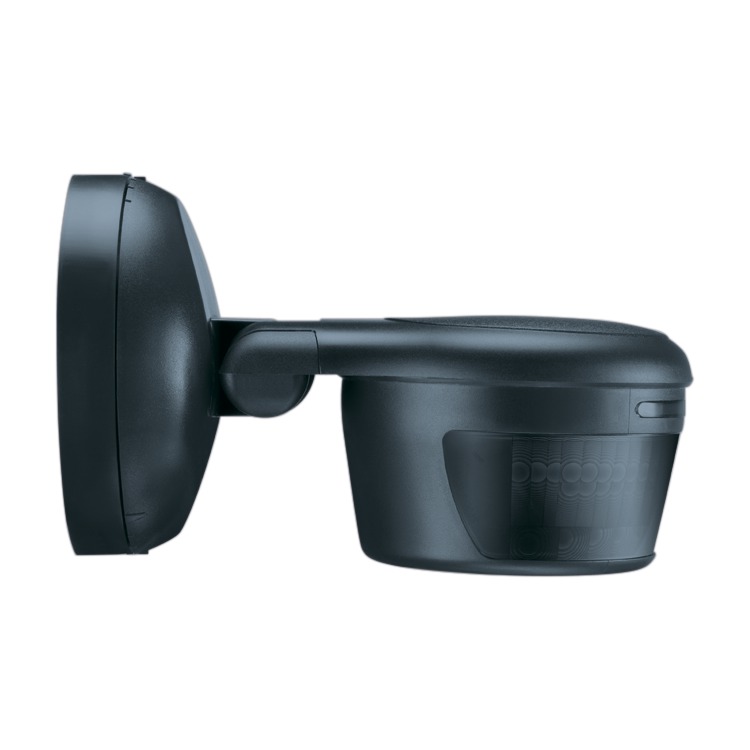

• Electronic movement detector for detecting thermal motion.
• With display for detection and operation mode.
• With ground and rear-field detection.
• With planar compensation: +/- 30°.
• With high-quality lens for optimum detection.
• Detection sensitivity selectable in 3 steps.
• Surveillance density: 84 sectors with 336 switching segments.
• All functions controlled by microprocessor.
• Always-On (4 hours) and Presencesimulation can be activated via IR-remote control.
• With automatic range stabilization.
• With automatic interference suppression.
• With automatic dazzle-proofing.
• With brightness-independent test mode for evaluating the detection zone.
• Additional possibility for switch-on via normally open push-button switch.
• Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz
• Power dissipation: 1 W

• Outputs: 1 Normally open contact, potential-bound
• suitable for: ohmic, capacitive and inductive loads
  • Rated output: 3680 W/VA
  • Rated current: 16 AX, cos φ0.6

• Protection class (device): IP 55
• Temperature range (device): -25 °C - 55 °C
• Detection range: frontal: 16 m, lateral: 16 m
• Detection range 2:
• Brightness limit value: 0.5 Lux - , Daytime operation
• Detection angle: 220 °

• Dimensions: (L x W x D): 97 mm x 97 mm x 159 mm
• Mounting height: 2.5 m

• In combination with a relay/contactor, an RC suppressor 6899 has to be used.

• RAL colour number: Ähnlich 7021
