Functions at a glance

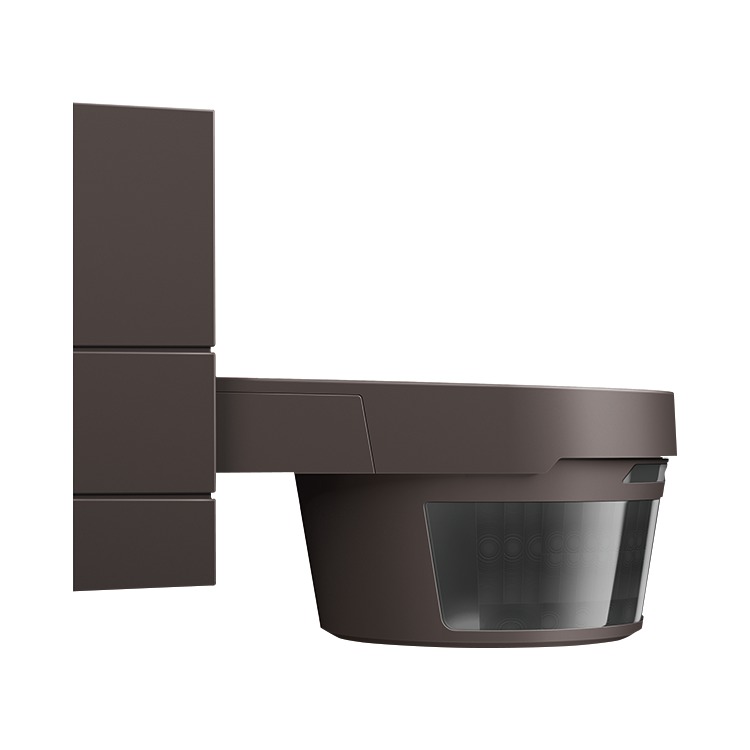

  • Wireless movement detector for detecting thermal motion.
  • With display for detection and status indication.
  • With ground and rear-field detection.
  • With high-quality lens for optimum detection.
  • Surveillance density: 84 sectors with 336 switching segments.
  • With integrated dismantling protection.
  • All functions controlled by microprocessor.
  • With automatic range stabilization.
  • With automatic interference suppression.
  • With automatic dazzle-proofing.
  • With automatic battery monitoring.
  • Battery service life: typically 5 years, therefore practically maintenance-free.
  • With brightness-independent test mode for evaluating the detection zone.
  • Individual adjustment of detection range via enclosed protective foil which can be cut to size.
  • Combinable with switch actuator WaveLINE, 1gang, with extension unit 6701-101.
  • For standalone and group operation.
  • Switch-off delay: 3 min. (single mode), individually adjustable at actuator (group mode).
  • Send frequency: 868 MHz.
  • Free-field range: approx. 100 m.
  • Rated voltage: 4.5 V-
  • Protection class (device): IP 55
  • Temperature range (device): -25 °C - 55 °C
  • Detection range: frontal: 16 m, lateral: 16 m
  • Brightness limit value: 0.5 Lux - , Daytime operation
  • Detection angle: 220 °
  • Dimensions: (L x W x D): 115 mm x 125 mm x 141 mm
  • Mounting height: 2.5 m
  • Battery included in delivery.
  • Battery type: Lithium batteries 1250 mAh (L92 AAA 1.5 V).
  • Cannot be comnined with ceiling/corner adapter 6868-...
  • RAL colour number: 8017

Order details

Article No.:6747 AGM-201
Order No.:2CKA006700A0034
EAN:4011395175873
Customs tariff number:85365080
Preisgruppe:29
Preis:185,00 EUR plus VAT
Info sheet:Download PDF
