Functions at a glance

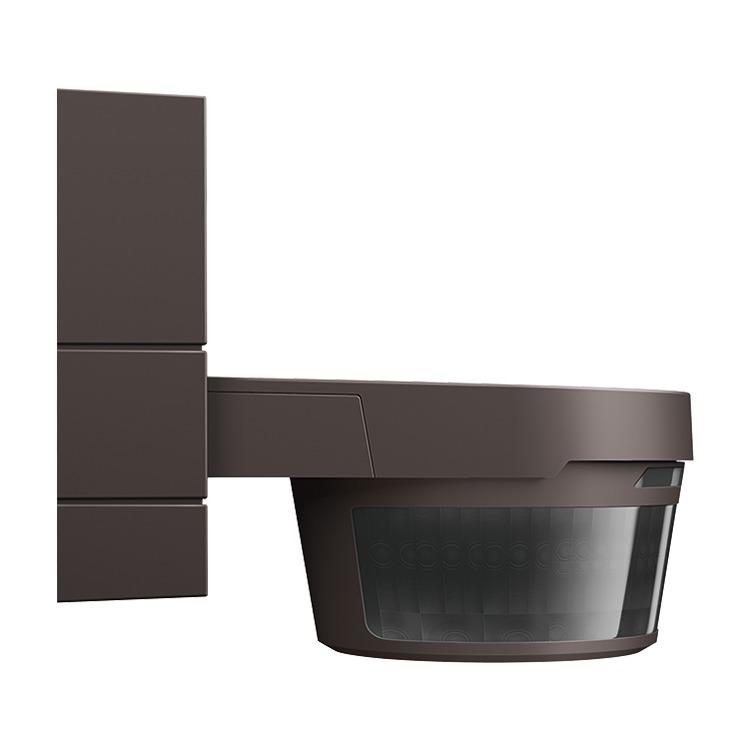

  • Electronic movement detector for detecting thermal motion.

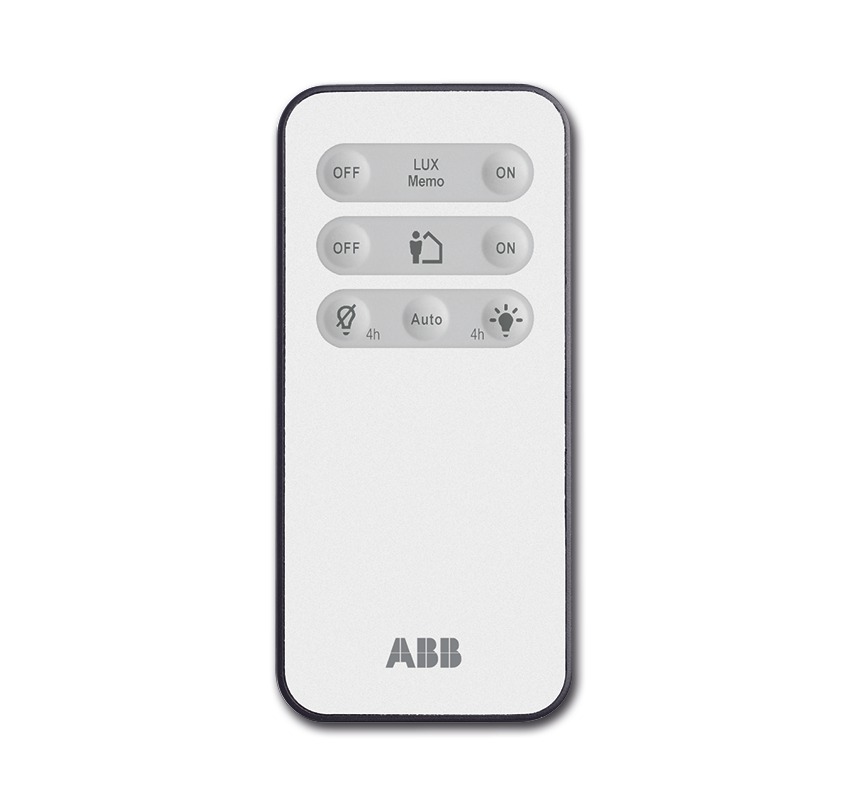

  • Remote control possible via IR remote control 6841-101 (included in scope of delivery).
  • Remote configurable via IR service remote control 6842-101.
  • With display for detection and operation mode.
  • With ground and rear-field detection.
  • With high-quality lens for optimum detection.
  • Detection sensitivity adjustable via IR service remote control.
  • Surveillance density: 110 sectors with 440 switching segments.
  • With integrated dismantling protection.
  • All functions controlled by microprocessor.
  • Always-On (4 hours) and Presencesimulation can be activated via IR-remote control.
  • Reading in the current brightness value as switching threshold via remote control.
  • With automatic range stabilization.
  • With automatic interference suppression.
  • With automatic dazzle-proofing.
  • With brightness-independent test mode for evaluating the detection zone.
  • Individual adjustment of detection range via enclosed protective foil which can be cut to size.
  • Additional possibility for switch-on via normally open push-button switch.
  • Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz / 60 Hz
  • Power dissipation: 1 W
  • Outputs: 1 Normally open contact, potential-bound
  • suitable for: ohmic, capacitive and inductive loads
    • Rated output: 3680 W/VA
    • Rated current: 16 AX, cos φ0.6
    • Protection class (device): IP 55
    • Temperature range (device): -25 °C - 55 °C
    • Detection range: frontal: 16 m, lateral: 16 m
    • Detection range 2:
    • Brightness limit value: 0.5 Lux - , Daytime operation
    • Detection angle: 280 °
    • Dimensions: (L x W x D): 115 mm x 125 mm x 141 mm
    • Mounting height: 2.5 m
    • In combination with a relay/contactor, an RC suppressor 6899 has to be used.
    • RAL colour number: 8017
    GluehlampeTrafoElektronisches-TrafoLeuchtstofflampe

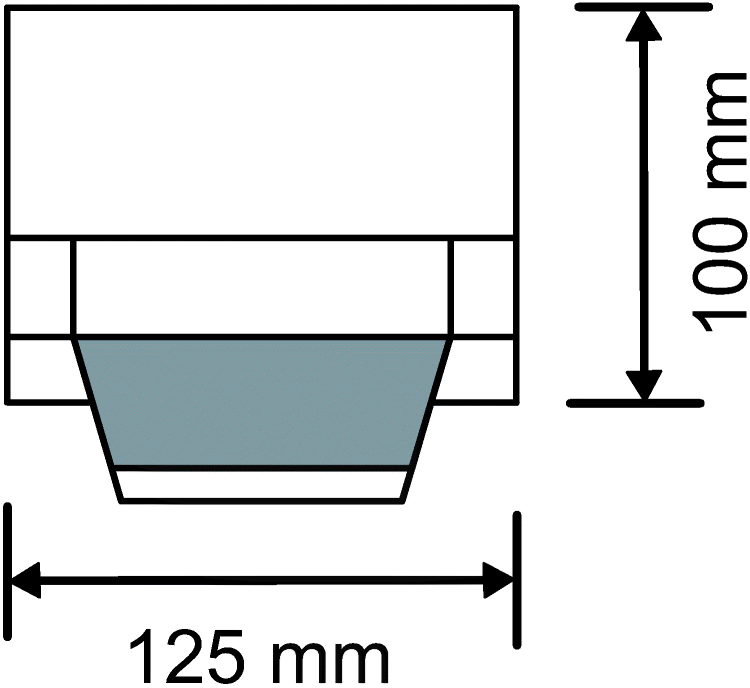

    Dimensions
    View: frontal
