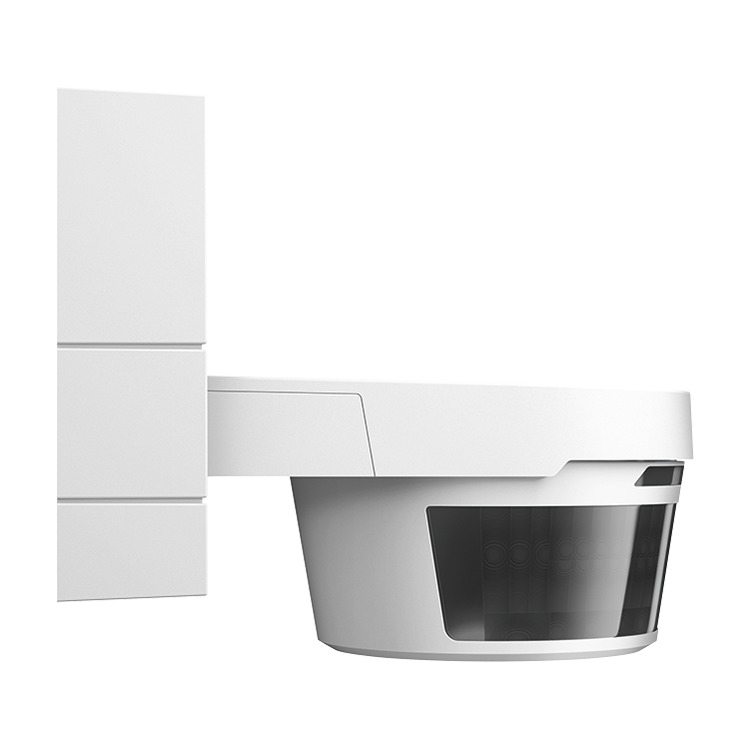

Busch-Watchdog 220 MasterLINE
incl. IR remote control

Functions at a glance

  • With anthracite-coloured lens.
  • Electronic movement detector for detecting thermal motion.
  • Remote control possible via IR remote control 6841-101 (included in scope of delivery).
  • Remote configurable via IR service remote control 6842-101.
  • With display for detection and operation mode.
  • With ground and rear-field detection.
  • With high-quality lens for optimum detection.
  • Detection sensitivity adjustable via IR service remote control.
  • Surveillance density: 84 sectors with 336 switching segments.
  • With integrated dismantling protection.
  • All functions controlled by microprocessor.
  • Continuous light (4 hours), light deactivation (4 hours) and presence simulation can be activated via IR remote control.
  • Reading in the current brightness value as switching threshold via remote control.
  • With automatic range stabilization.
  • With automatic interference suppression.
  • With automatic dazzle-proofing.
  • With brightness-independent test mode for evaluating the detection zone.
  • Individual adjustment of detection range via enclosed protective foil which can be cut to size.
  • Additional possibility for switch-on via normally open push-button switch.
  • Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz / 60 Hz
  • Power dissipation: 1 W
  • Outputs: 1 Normally open contact, potential-bound
  • suitable for: ohmic, capacitive and inductive loads
    • Rated output: 3680 W/VA
    • Rated current: 16 AX, cos φ0.6
  • Protection class (device): IP 55
  • Temperature range (device): -25 °C - 55 °C
  • Detection range: frontal: 16 m, lateral: 16 m
  • Detection range 2:
  • Brightness limit value: 0.5 Lux - , Daytime operation
  • Detection angle: 220 °
  • Dimensions: (L x W x D): 115 mm x 125 mm x 141 mm
  • Mounting height: 2.5 m
  • In combination with a relay/contactor, an RC suppressor 6899 has to be used.
  • RAL colour number: 9010
GluehlampeTrafoElektronisches-TrafoLeuchtstofflampe

Order details

Article No.:6847/8 AGM-204
Order No.:2CKA006800A2599
EAN:4011395163054
Customs tariff number:85365080
Price group:29
Price:159,00 EUR plus VAT
Info sheet:Download PDF
Dimensions
View: frontal
View: side
