Functions at a glance

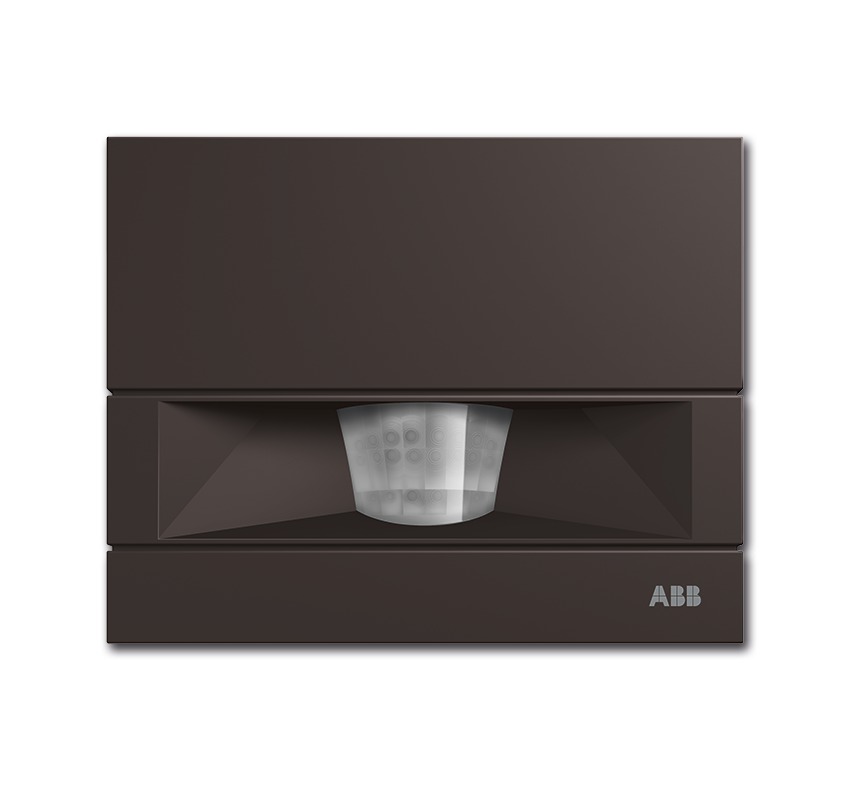

• Electronic movement detector for detecting thermal motion.
• Remote operation via IR remote control 6841-101.
• Remote configurable via IR service remote control 6842-101.
• With display for detection and operation mode.
• With ground surveillance.
• With high-quality lens for optimum detection.
• Detection sensitivity adjustable via IR service remote control.
• Adjustment of detection range via rotary control element.
• Surveillance density: 25 sectors with 100 switching segments.
• With integrated dismantling protection.
• All functions controlled by microprocessor.
• Continuous light (4 hours), light deactivation (4 hours) and presence simulation can be activated via IR remote control.
• Reading in the current brightness value as switching threshold via remote control.
• With automatic range stabilization.
• With automatic interference suppression.
• With automatic dazzle-proofing.
• With brightness-independent test mode for evaluating the detection zone.
• Individual adjustment of detection range via enclosed protective foil which can be cut to size.
• Additional possibility for switch-on via normally open push-button switch.
• Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz
• Power dissipation: 1 W

• Outputs: 1 Normally open contact, potential-bound
• suitable for: ohmic, capacitive and inductive loads
  • Rated output: 2300 W/VA
  • Rated current: 10 AX, cos φ0.6

• Protection class (device): IP 55
• Temperature range (device): -25 °C - 55 °C
• Detection range: frontal: 12 m, lateral: 4 m
• Detection range 2:
• Brightness limit value: 3 Lux - Up to daytime operation

• Dimensions: (L x W x D): 100 mm x 125 mm x 33 mm
• Mounting height: 2.5 m

• In combination with a relay/contactor, an RC suppressor 6899 has to be used.

• RAL colour number: Ähnlich 8017
