Functions at a glance

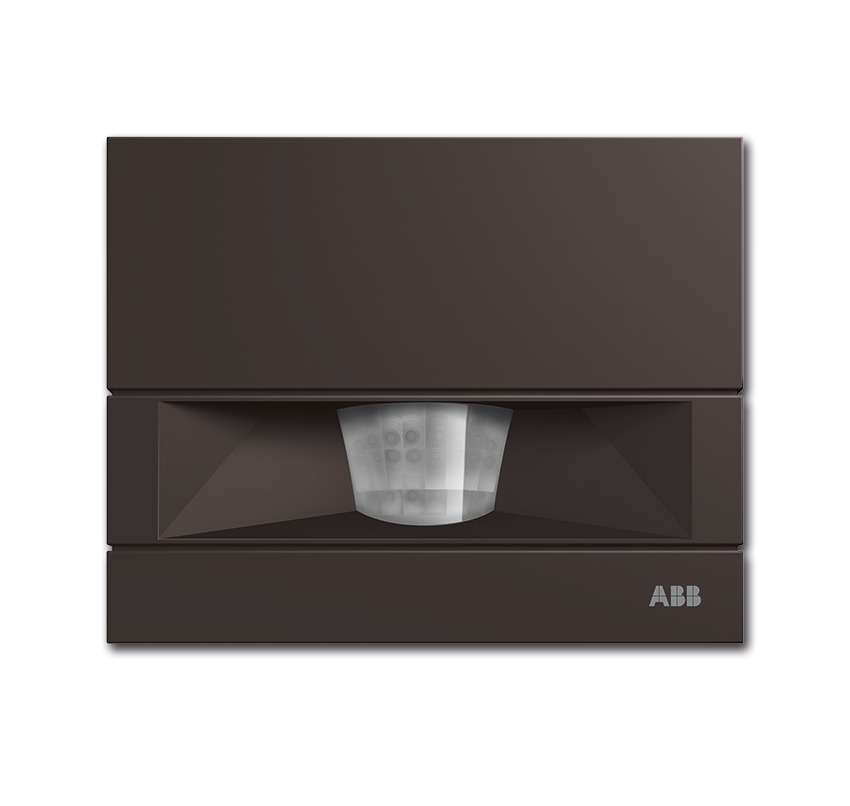

  • Electronic movement detector for detecting thermal motion.
  • With display for detection and operation mode.
  • With ground surveillance.
  • With high-quality lens for optimum detection.
  • Adjustment of detection range via rotary control element.
  • Surveillance density: 25 sectors with 100 switching segments.
  • With integrated dismantling protection.
  • With brightness-independent test mode for evaluating the detection zone.
  • Additional possibility for switch-on via normally open push-button switch.
  • Switch-off delay option: 1 / 3 or 5 min.
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz / 60 Hz
  • Power dissipation: 1 W
  • Outputs: 1 Normally open contact, potential-bound
  • suitable for: ohmic, capacitive and inductive loads
    • Rated output: 1380 W/VA
    • Rated current: 6 AX, cos φ0.6
  • Protection class (device): IP 55
  • Temperature range (device): -25 °C - 55 °C
  • Detection range: frontal: 12 m, lateral: 4 m
  • Detection range 2:
  • Brightness limit value: 3 Lux - Up to daytime operation
  • Dimensions: (L x W x D): 100 mm x 125 mm x 33 mm
  • Mounting height: 2.5 m
  • In combination with a relay/contactor, an RC suppressor 6899 has to be used.
  • RAL colour number: 8017
GluehlampeTrafoElektronisches-TrafoLeuchtstofflampe
Dimensions
View: frontal
View: side
