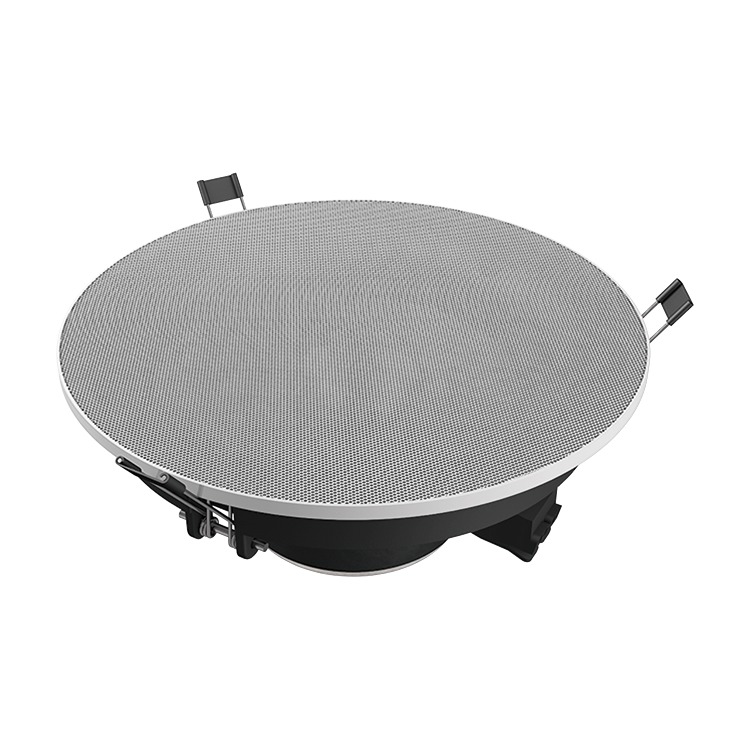

Built-in ceiling loudspeaker
13 cm (5")

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • With broadband characteristics.
  • For mounting in hollow walls/ceilings.
  • With spring brackets.
  • In corrosion-resistant metal design.
  • Inkl. austauschbarem Lautsprechergitter.
  • With screwless terminals.
  • Nominal power: 30 W
  • Frequency response: 50 - 20,000 Hz
  • Impedance: 8 Ohm
  • Drilling measurements: 165 mm
  • Protection class (device): IP 20, SELV
  • Temperature range (device): -40 °C - 70 °C
  • Dimensions: (L x W x D): 188 mm x 188 mm x 77 mm
  • Mounting depth: 72 mm
  • RAL colour number: Ähnlich 9016

Order details

Article No.:8226 EB
Order No.:2CKA008200A0201
EAN:4011395207635
Customs tariff number:85366990
Price group:19
Price:94,40 EUR plus VAT
Info sheet:Download PDF
