Discontinuation type

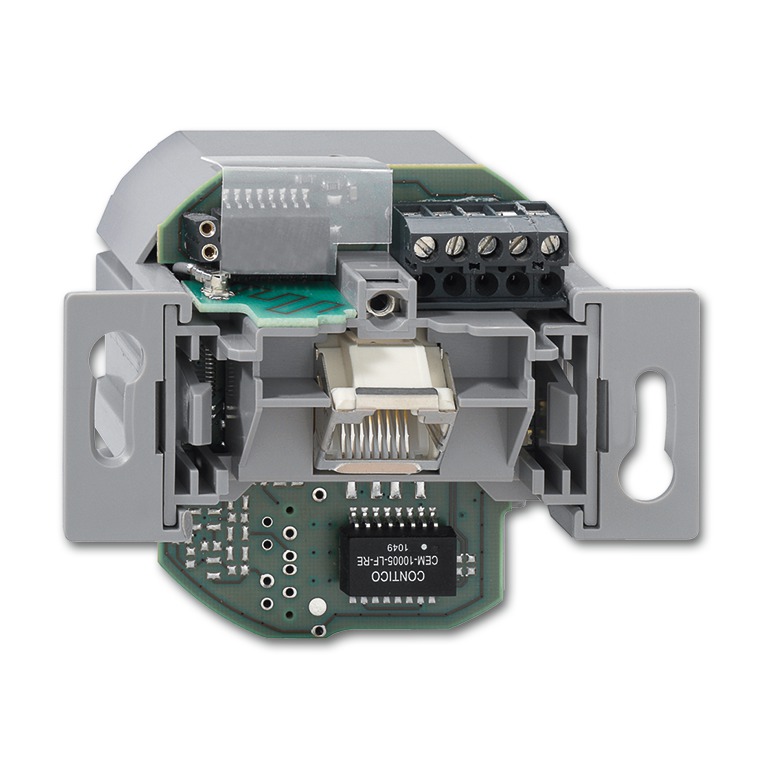

Flush-mounted PoE WLAN access point
power supply via Ethernet

Functions at a glance

  • Operation as WLAN access point for the connection of WLAN terminal devices to the LAN.
  • Operation as WLAN repeater for extending the transmission range of a WLAN.
  • Operation as WLAN adapter for integrating Ethernet terminal devices into a WLAN.
  • Supports WLAN standards IEEE 802.11b/g/n with 2.4 GHz; integrated WLAN antenna.
  • Backward connection of an Ethernet cable via screw terminals (10/100 Mbit/s).
  • Front-side Ethernet connection via a RJ45 socket (10/100 Mbit/s).
  • The three connections (WLAN, Ethernet/screw terminals and Ethernet/RJ45)can be used in parallel via the integrated switch.
  • Power supply via the rear Ethernet connection (48 V PoE).
  • Supply of a terminal device connected to an RJ45 socket according to PoE class 2 (6.49 W).
  • For mounting in commercially available deep flush-mounted and hollow-wall boxes.
  • Protection class (device): IP 20
  • Dimensions: (L x W x D): 80 mm
  • Suitable for cover plate 1803-xxx.
  • Not to be mounted in SM box 1701-xxx, 1702-xxx, 1703-xxx.

    Order details

    Article No.:8186/41
    Order No.:2CKA008100A0356
    Customs tariff number:85176200
    Price group:44
    Price:230,00 EUR plus VAT
    Info sheet:Download PDF
