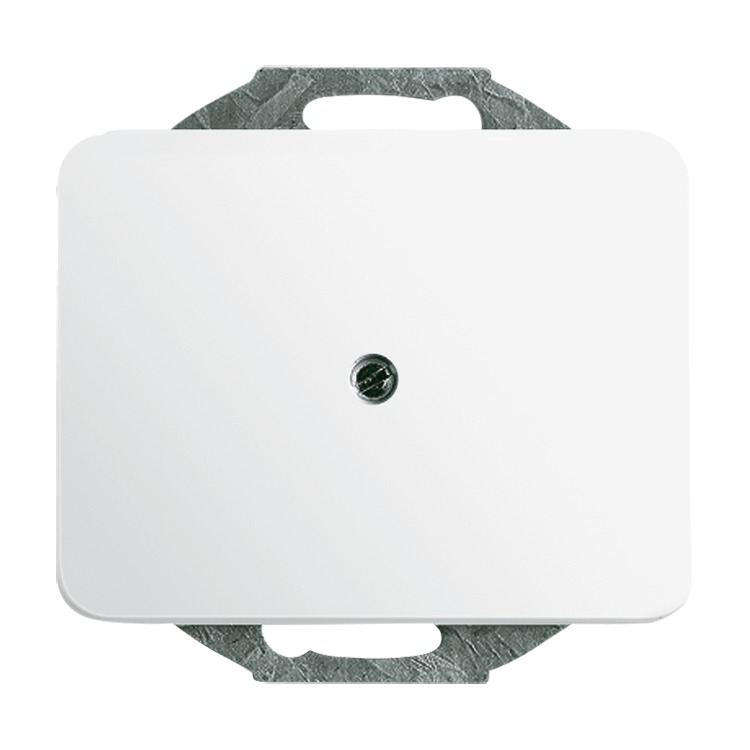

Cover plate
with metal mounting plate

platinum
bronze
ivory
palladium
titanium
Take over in my parts list / tender specifications

Functions at a glance

  • As cover for flex outlet, for cords up to 10.3 mm diameter.
  • With strain relief (without terminal block).
  • Maximum cable diameter: 8 mm.
  • Protection class (device): IP 20
    • Cover plate can also be used individually as cover for telephone connector boxes (VDo).

      Order details

      Article No.:1749-24G
      Order No.:2CKA001710A1209
      EAN:4011395728802
      Customs tariff number:85389099
      Price group:04
      Price:22,40 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Certificates
      Tips / Tricks

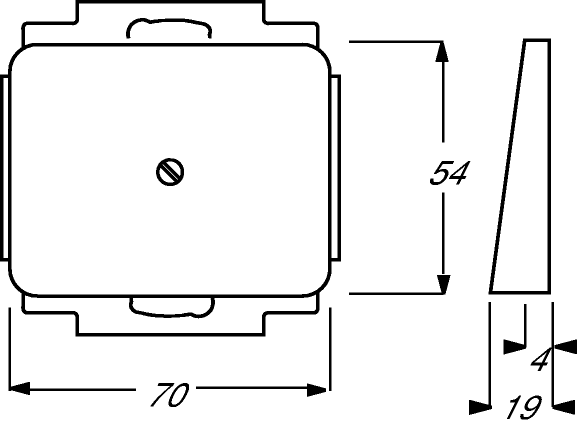

      Dimensions
