My parts list/tender specifications

Actions:

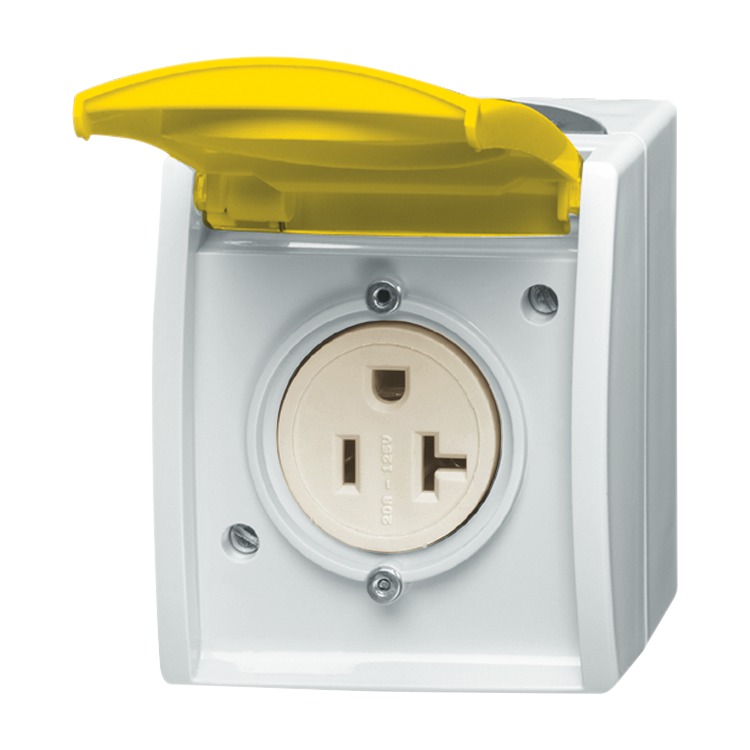

Busch-Nema socket outlet
with yellow hinged lid

alpine white
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • With screw-type terminals.
  • 2 P + E,
  • With yellow hinged lid (RAL 1018).
  • With labelling field.
  • Labelling field 57.8 x 9.8 mm
  • Rated voltage: 125 V
  • Rated current: 20 A
  • Protection class (device): IP 44
  • Dimensions: (L x W x D): 83 mm x 74 mm x 55 mm
  • Use in accordance with US Standard (e.g. in US military barracks).
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.

    Order details

    Article No.:3016 EWN-53
    Order No.:2CKA002124A0024
    EAN:4011395028674
    Customs tariff number:85366990
    Price group:12
    Price:77,37 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Certificates
    Tips / Tricks

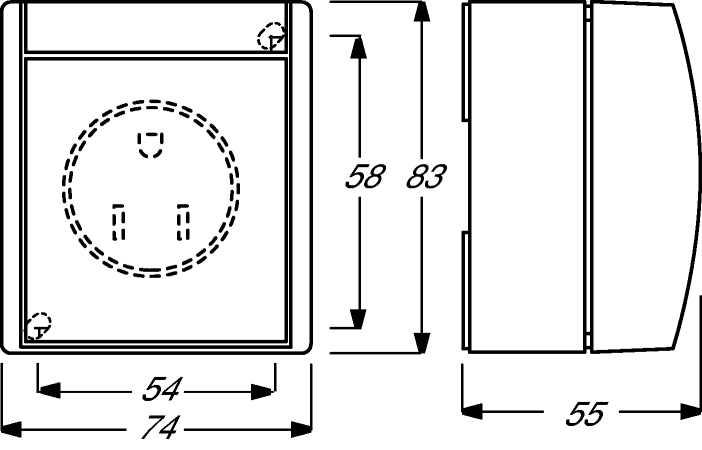

    Dimensions

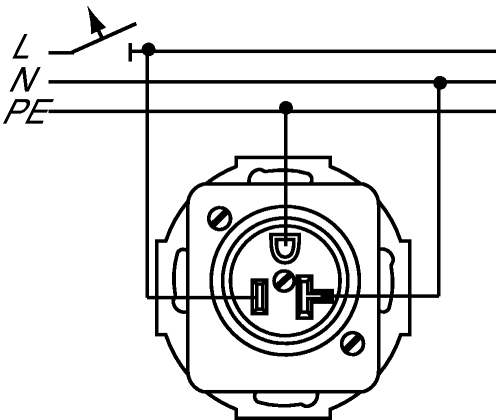

    Wiring diagram

    Related products

    Component
    Page 1 of 2
    Item was added to the parts list.
    Cable entry single open 2136 W-53
    2CKA001761A1489
    Cable entry double closed 2134 W-53
    2CKA001761A1487
    Label holder 1763-53
    2CKA001799A0882
    Mounting plate 2609 WS
    2CKA001716A0042
    Cable entry 2086 W-53
    2CKA001761A1492
    Cable entry high design 2139 W-53
    2CKA001761A1491
    Cable entry 2137/10 W-53
    2CKA001761A1503
    Cable entry 2137/11 W-53
    2CKA001761A1506
    Cable bushing adapter plate for coupling several devices 2138 W-53
    2CKA001761A1490
