My parts list/tender specifications

Actions:

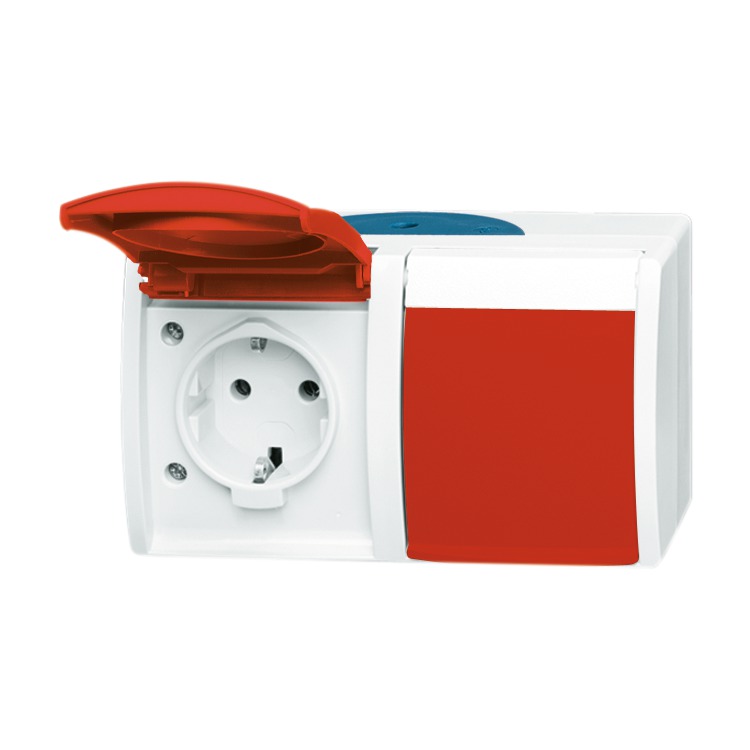

SCHUKO® socket outlet
2gang with red hinged lids

alpine white
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • For horizontal installation.
  • With screwless terminals.
  • 2 P + E,
  • Prewired
  • With red hinged lid, EDP (RAL 6018).
  • With labelling field.
  • Labelling field 57.8 x 9.8 mm
  • Continuous coloured marking (hinged lid and base).
  • Rated voltage: 250 V~
  • Rated current: 16 A
  • Protection class (device): IP 44

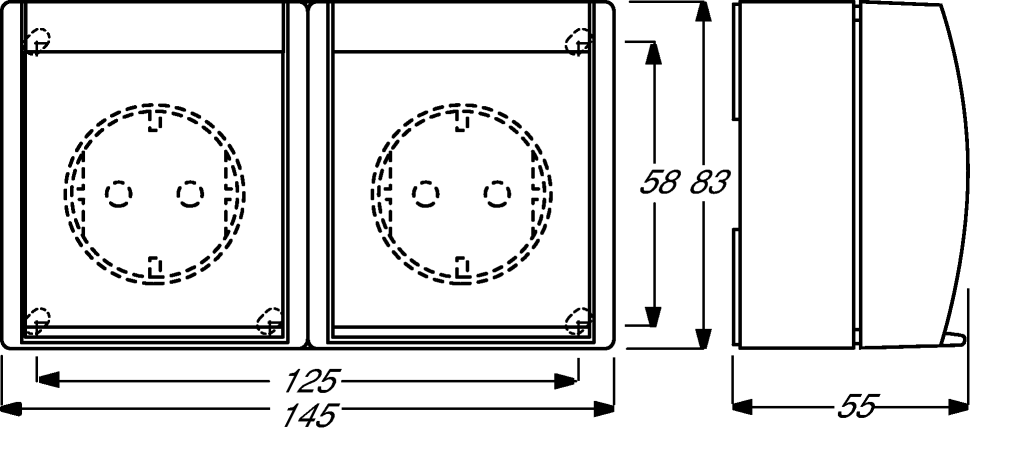

  • Dimensions: (L x W x D): 83 mm x 145 mm x 55 mm
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.

    Order details

    Article No.:20/2 EW/DVN-53
    Order No.:2CKA002084A0700
    EAN:4011395993323
    Customs tariff number:85366990
    Price group:12
    Price:53,54 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Certificates
    Dimensions
