My parts list/tender specifications

Actions:

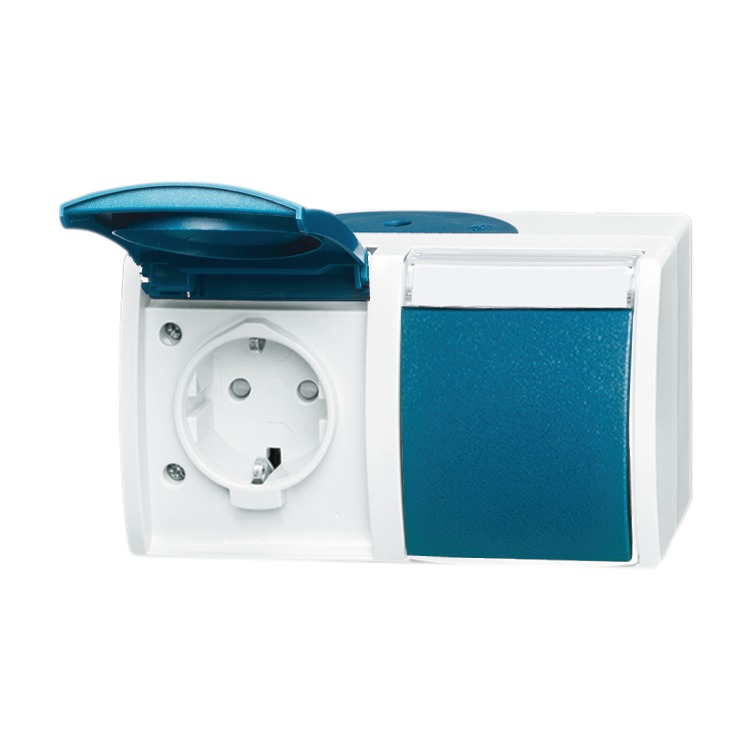

SCHUKO® socket outlet
Safety+

alpine white
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • 2gang
  • For horizontal installation.
  • With screwless terminals.
  • Prewired
  • with hinged lids,
  • 2 P + E,
  • Rated voltage: 250 V~
  • Rated current: 16 A
  • Protection class (device): IP 44
  • Dimensions: (L x W x D): 83 mm x 145 mm x 55 mm
  • Label holder 1763-53.
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
  • SCHUKO® socket outlet Safety+ with shutter (integrated shutter according to VDE 0620).

    Order details

    Article No.:20/2 EBW-53
    Order No.:2CKA002084A0720
    EAN:4011395114964
    Customs tariff number:85366990
    Price group:12
    Price:42,86 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Certificates
    Dimensions
    ocean® 2gang horizontal SCHUKO® socket outlets with drilling dimensions
