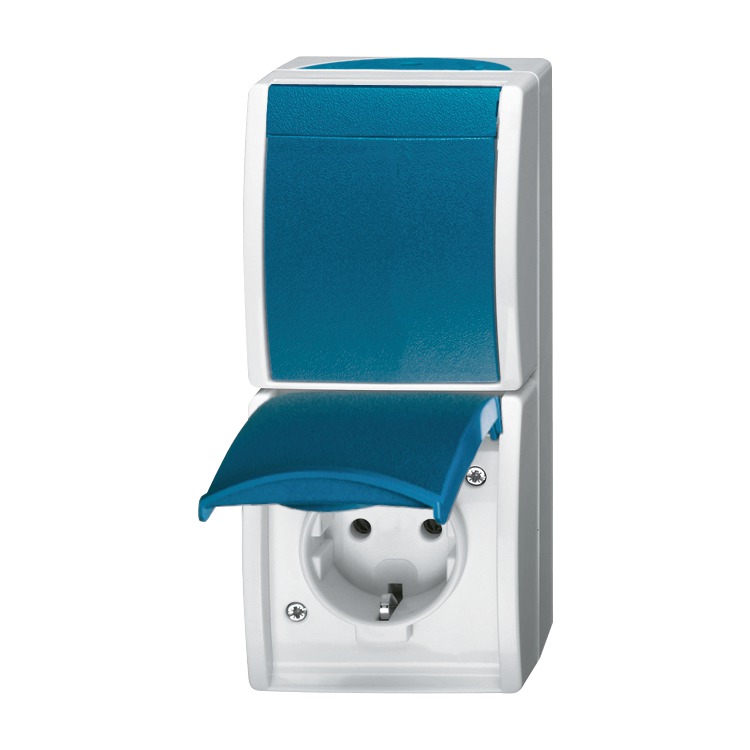

Combination SCHUKO® socket outlet, with rocker switch
1gang 2way

Functions at a glance

  • For vertical installation.
  • 2 P + E,
  • Rated voltage: 250 V~
  • Rated current: 16 A
  • Lastart: LEDi / CFLi
  • Rated output: 100 W
  • Rated current: 10 AX
  • Protection class (device): IP 44
  • Dimensions: (L x W x D): 166 mm x 74 mm x 55 mm
  • Label holder 1763-53.
  • Label holder of the switch illuminable with illumination insert 2152 NLI-53.
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
  • Terminals of the socket outlet suitable for loop connection in accordance with VDE 0620-1.
  • Instead of the SCHUKO® socket outlets, switches, push-switches, light signals, or SCHUKO®-socket outlets with locks can be used.

    Order details

    Article No.:2601/6/20 EW-53
    Order No.:2CKA001684A0316
    EAN:4011395992913
    Customs tariff number:85365080
    Price group:13
    Price:31,55 EUR plus VAT
    Info sheet:Download PDF

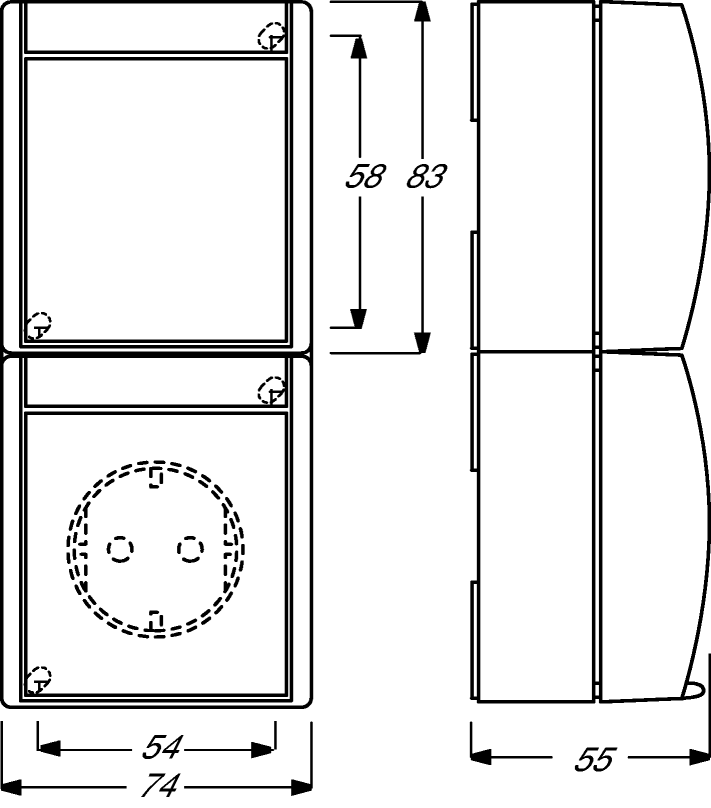

    Dimensions
    Wiring diagram
    1gang 1way SP
    1gang 2way with 1gang intermediate and 1gang 2way
