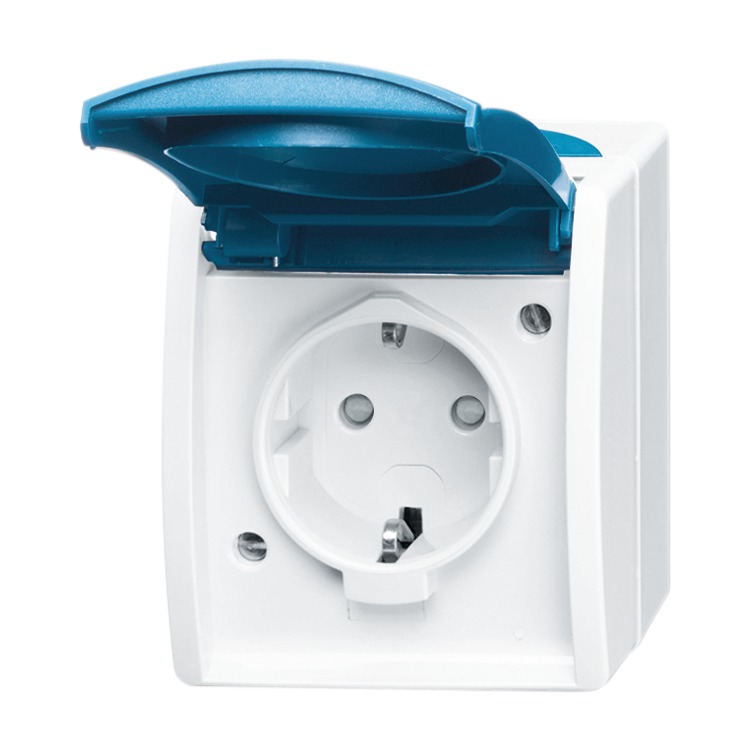

SCHUKO® socket outlet
shuttered

Functions at a glance

  • With screwless terminals.
  • With hinged lid.
  • 2 P + E,
  • Rated voltage: 250 V~
  • Rated current: 16 A
  • Protection class (device): IP 44

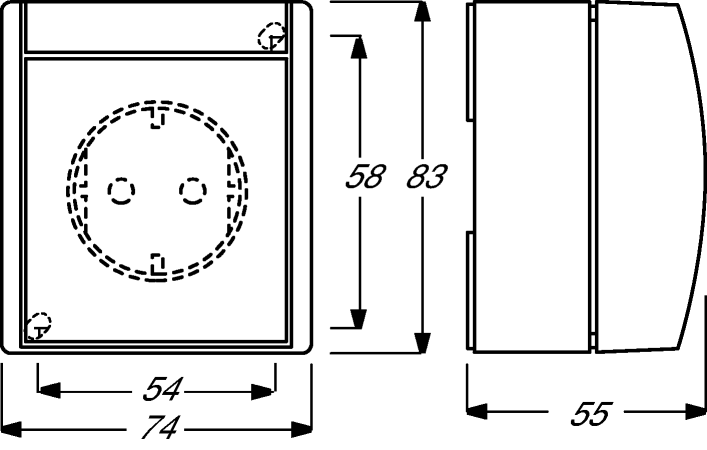

  • Dimensions: (L x W x D): 83 mm x 74 mm x 55 mm
  • Label holder 1763-53.
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
  • Increased shock protection .

    Order details

    Article No.:20 EBW-53
    Order No.:2CKA002083A0842
    EAN:4011395114940
    Customs tariff number:85366990
    Price group:12
    Price:14,96 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Certificates
    Dimensions
