My parts list/tender specifications

Actions:

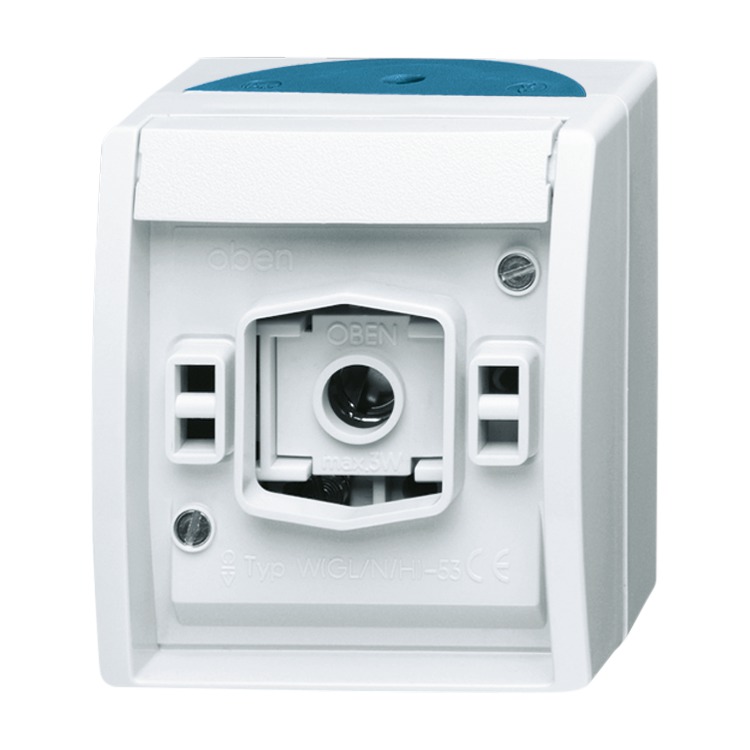

Neon indicator
with E 10-thread

alpine white
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • With screw-type terminals.
  • without cover, without lamp,
  • IP 44 only in combination with appropriate covers.
  • Rated voltage: 250 V~
  • Protection class (device): IP 44

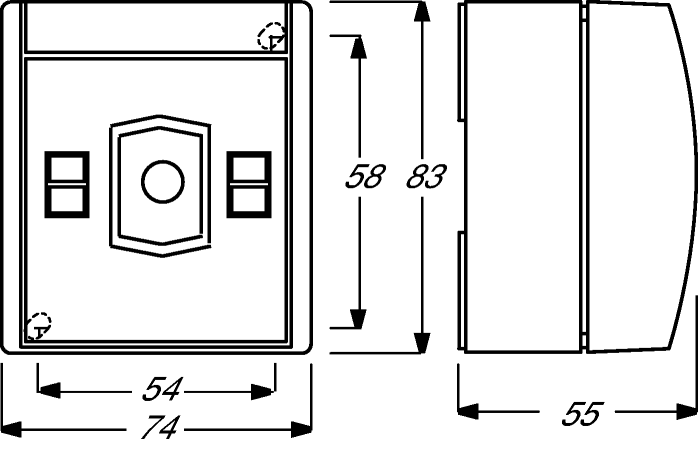

  • Dimensions: (L x W x D): 83 mm x 74 mm x 55 mm
  • Label holder 1763-53.
  • Label holder illuminable with illumination insert 2152 NLI.
  • Indication lamp illuminable using E 10 lamps 8302, 8340, 8341, 8342, 8343.
  • Use of the intense-light neon lamp 8340 is recommended in the case of red and green covers.
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.

    Order details

    Article No.:2661 W-53
    Order No.:2CKA001582A0305
    EAN:4011395992838
    Customs tariff number:85389099
    Price group:12
    Price:29,82 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Certificates
    Dimensions

    Related products

    Component
    Page 1 of 2
    Item was added to the parts list.
    Cable entry double closed 2134 W-53
    2CKA001761A1487
    Mounting plate 2609 WS
    2CKA001716A0042
    Label holder 1763-53
    2CKA001799A0882
    Cable entry 2086 W-53
    2CKA001761A1492
    Cable entry single open 2136 W-53
    2CKA001761A1489
    Cable entry high design 2139 W-53
    2CKA001761A1491
    Glow lamp with E 10 thread for indication lamps 8302
    2CKA001780A0022
    Incandescent lamp with E 10 thread very bright, for indication lamps 8340
    2CKA001784A0222
    Incandescent lamp with E 10 thread for indication lamps 8341
    2CKA001784A0248
    Incandescent lamp with E 10 thread for indication lamps 8342
    2CKA001784A0255
    Illumination insert 2152 NLI-53
    2CKA001784A0777
    Incandescent lamp with E 10 thread for indication lamps 8343
    2CKA001784A0263
    Cap for indication lamp 2863-11-53
    2CKA001563A0148

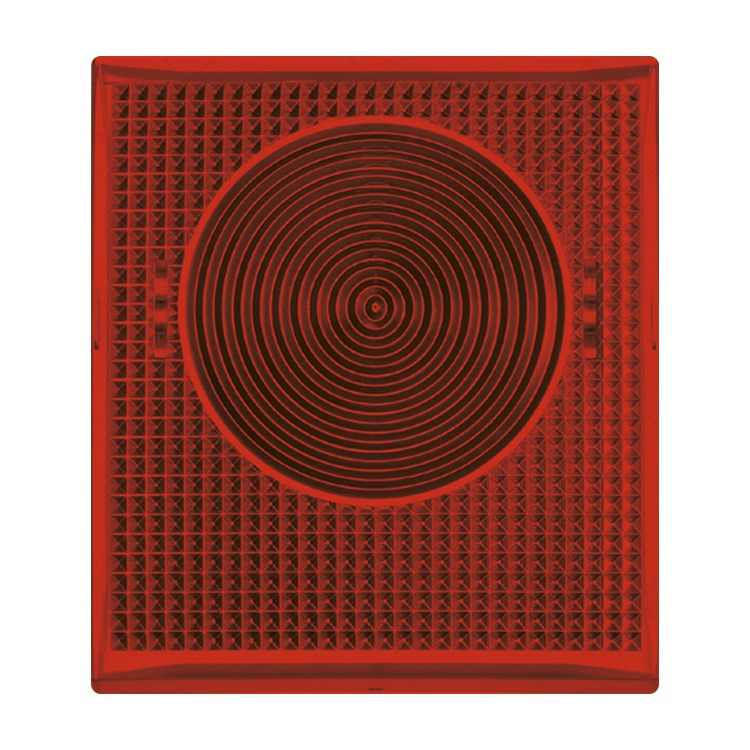

    Cap for indication lamp 2863-12-53
    2CKA001563A0149
    Cap for indication lamp 2863-13-53
    2CKA001563A0150
    Cable entry 2137/10 W-53
    2CKA001761A1503
    Cable entry 2137/11 W-53
    2CKA001761A1506
    Cable bushing adapter plate for coupling several devices 2138 W-53
    2CKA001761A1490
