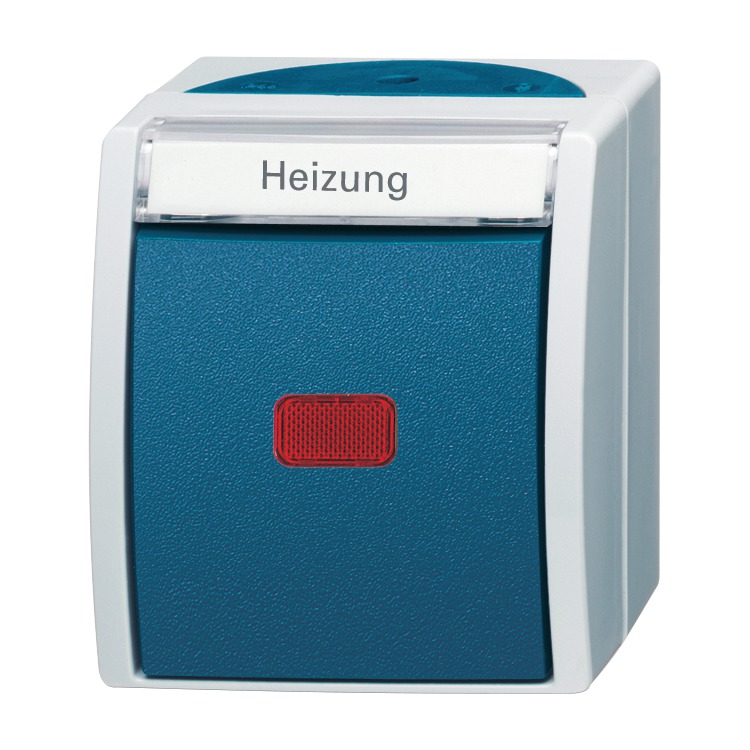

Rocker switch with marking "Heizung"
breaking circuit, 2-pole

alpine white
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • With red neon lens.
  • With neon lamp.
  • With labelling field.
  • Labelling field 57.8 x 9.8 mm
  • Rated voltage: 250 V~
  • Rated current: 16 AX
  • suitable for: LEDi / CFLi
    • Rated output: 200 W
  • Protection class (device): IP 44
  • Dimensions: (L x W x D): 83 mm x 74 mm x 55 mm
  • Label holder illuminable with illumination insert 2152 NLI-53.
  • Switch illuminable by inserting the lamp 8332-1, 8335-1, 8346-1, 8333-1 and 8358.
  • Neon lamp 8346-1 included.
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
  • "Heizung" inscription label also included.

    Order details

    Article No.:2601/2 SKWNH-53
    Order No.:2CKA001085A1610
    EAN:4011395992609
    Customs tariff number:85365080
    Price group:12
    Price:50,42 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Certificates

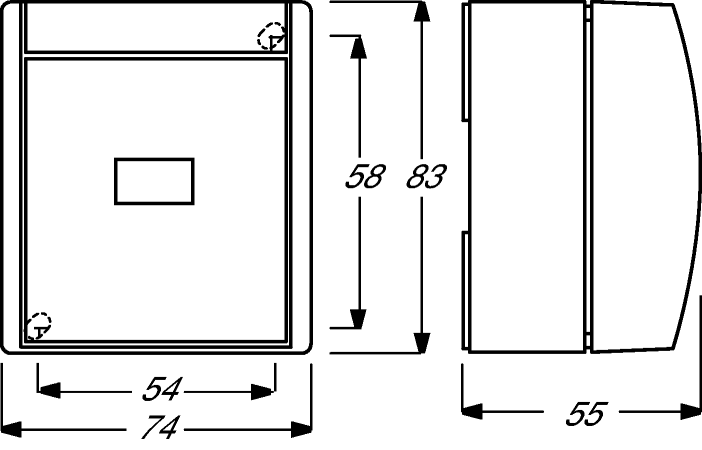

    Dimensions

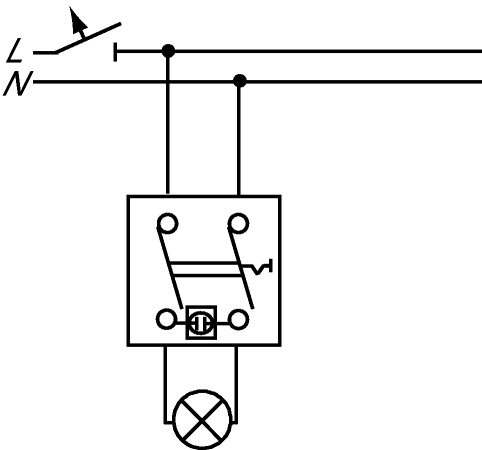

    Wiring diagram
    1gang 1way DP with neon indicator
