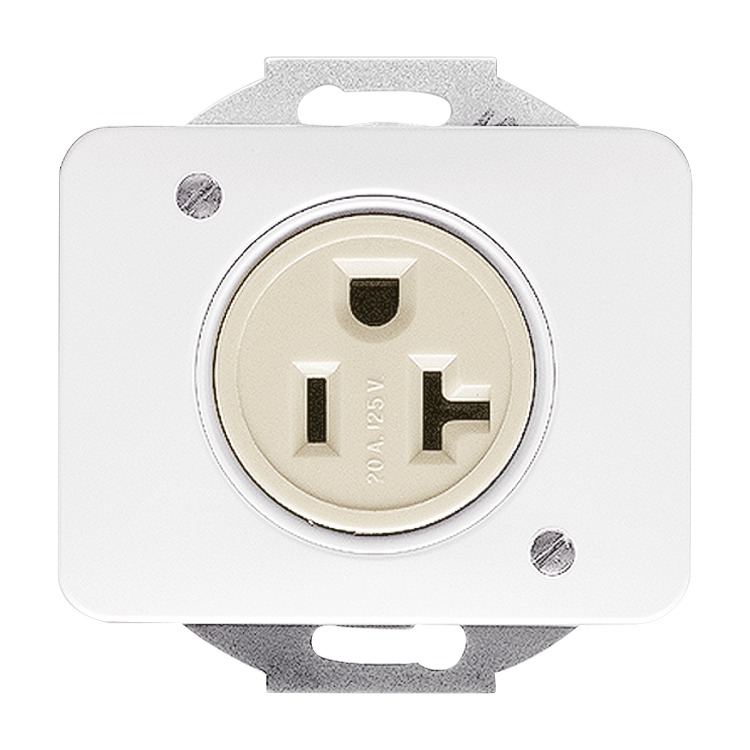

Busch-Nema socket outlet with cover plate
DP (2 P + E), 20 A

Take over in my parts list / tender specifications

Functions at a glance

  • For wall box 58 mm with screw fixation.
  • Without claws.
  • Rated voltage: 125 V~
  • Rated current: 20 A
  • Protection class (device): IP 20
    • Use in accordance with US Standard (e.g. in US military barracks).

      Order details

      Article No.:3016 EUC-24G
      Order No.:2CKA002122A0028
      EAN:4011395989173
      Customs tariff number:85366990
      Price group:04
      Price:70,60 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Certificates
      Tips / Tricks

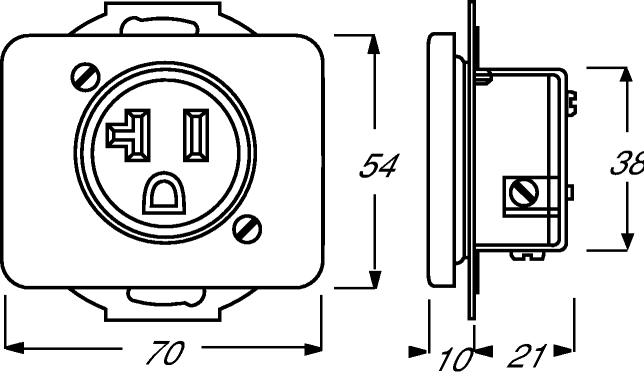

      Dimensions
