Functions at a glance

  • Service & Vertrieb durch: Tunstall GmbH Orkotten 66 48291 Telgte. Tel.: +49(0)2504/701-0
  • For connection to the room bus.
  • For the setup of a call system according to DIN VDE 0834.

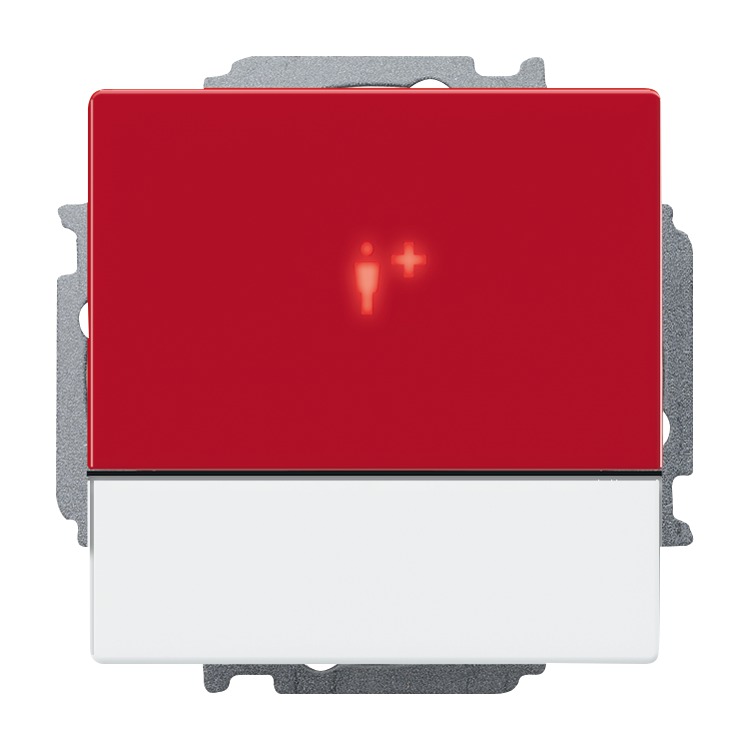

  • With water-proof red call button for triggering calls.
  • Configurable as room or WC call.
  • A call is triggered during set presence of staff.
  • With reassurance light when a call is initiated.
  • Designation of call buttons with distinctive icons.
  • Recognizable as integral part of the call system due to special design characteristics.
  • Can be installed as 1gang and in multiple combinations.
  • Wall mounting on flush-mounted/hollow wall box according to DIN 49073.
  • Easy plug-and-play mounting.
  • Control element: 1 button with large actuating surface for making operation easy
  • Display elements: LED reassurance and locating light
  • Rated voltage: 24 V-
  • Protection class (device): IP 22, SELV
  • Temperature range (device): 5 °C - 40 °C
  • Dimensions: (L x W x D): 71 mm x 71 mm x 41 mm
  • Mounting depth: 24 mm
  • No claw, screw-fixing via keyholes.
  • RAL colour number: Ähnlich 9010

Order details

Article No.:2CKA001582A0407
Order No.:2CKA001582A0407
Info sheet:Download PDF
