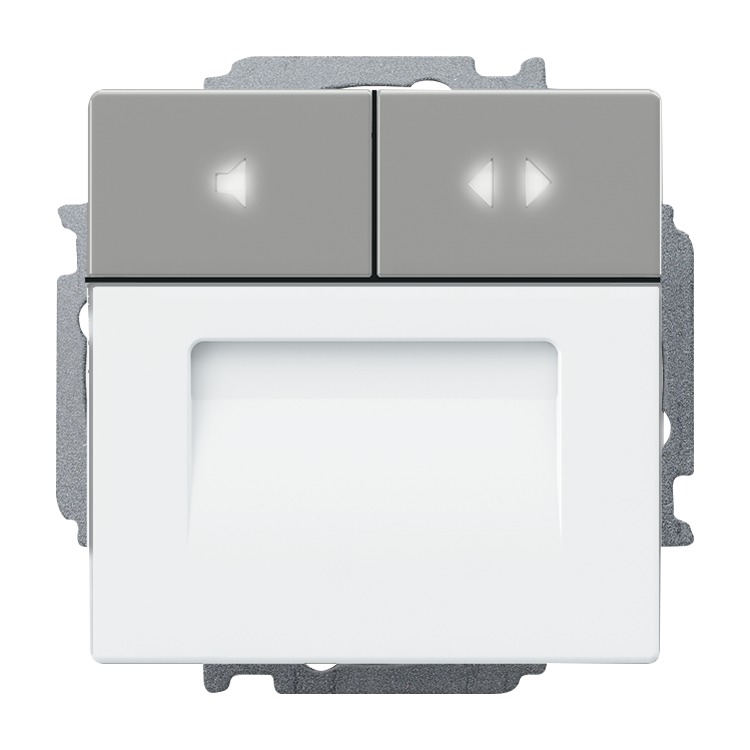

Intercom insert
Functions at a glance
- Service & Vertrieb durch: Tunstall GmbH Orkotten 66 48291 Telgte. Tel.: +49(0)2504/701-0 angebot@tunstall.de www.tunstall.de
- For connection to the display insert or call/presence insert.
- For the setup of a call system according to DIN VDE 0834.
- For adding speech communication to a display insert or a call/presence insert.
- With the option of making announcements.
- With integrated microphone and loudspeaker.
- With water-protected grey enquiry button.
- With water-protected grey cancel button.
- Can be installed as 1gang and in multiple combinations.
- Wall mounting in deep flush-mounted/hollow wall boxes according to DIN 49073.
- Easy plug-and-play mounting.
- Control element: 2 buttons with large actuating surfaces for making operation easy
- Rated voltage: 24 V-
- Protection class (device): IP 20, SELV
- Temperature range (device): 5 °C - 40 °C
- Dimensions: (L x W x D): 71 mm x 71 mm x 41 mm
- Mounting depth: 32 mm
- No claw, screw-fixing via keyholes.
- RAL colour number: Ähnlich 9010
Order details
| Article No.: | 2CKA001582A0403 |
| Order No.: | 2CKA001582A0403 |
| Info sheet: | Download PDF |
