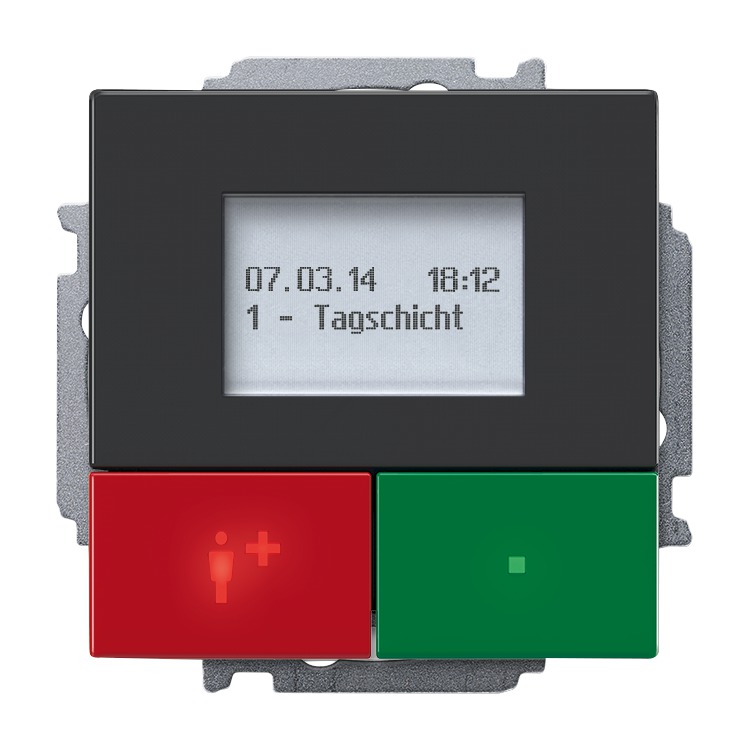

Functions at a glance

• Service & Vertrieb durch: Tunstall GmbH Orkotten 66 48291 Telgte. Tel.: +49(0)2504/701-0 angebot@tunstall.de www.tunstall.de
• For connection to the ward bus.
• For the setup of a call system according to DIN VDE 0834.
• Configurable as room or staff room terminal.
• For the control and monitoring of all room functions.
• For operation by the staff.
• With the option of connecting the room bus and room lamp.
• With water-proof red call button for triggering calls.
• A call is triggered during set presence of staff.
• With water-protected green presence button.
• With reminder light during set presence.
• For the visual display of forwarded calls via the integrated display.
• With option of extension with voice function via intercom insert 1513 UC-...).
• With monitoring function of connected room bus components.
• With message function of errors to room bus components.
• During a failure of the ward bus, the insert continues to operate independently in the room.
• Can be installed as 1gang and in multiple combinations.
• Wall mounting in deep flush-mounted/hollow wall boxes according to DIN 49073.

• Control element: 2 buttons with large actuating surfaces for making operation easy
• Display elements: 4 x 16-digit dot matrix display with background illumination, LED reassurance light, locating light and buzzer

• Rated voltage: 24 V-

• Protection class (device): IP 20, SELV
• Temperature range (device): 5 °C - 40 °C

• Dimensions: (L x W x D): 71 mm x 71 mm x 41 mm
• Mounting depth: 32 mm

• No claw, screw-fixing via keyholes.
