Mounting set carat® flat
2gang
Functions at a glance
- For flat flush-mounted installation, hollow wall
- Suitable for cover frame carat®.
- For double planking.

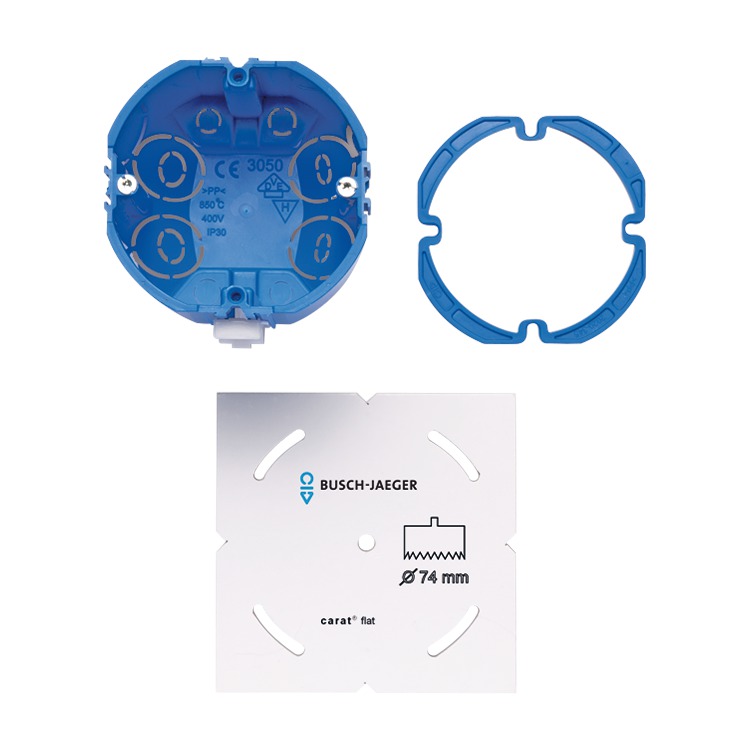

- Set consists of a flush-mounted box for cavity walls 3050.
- With positioning device and adapter rings.
- Suitable for drywalls and plasterboards for 9,5 mm, 10 mm and 12,5 mm.
- With Torx/slotted screws.
- Mounting boxes are combinable directly.
- With flex knockouts for cables or pipes.
- Fast installation via cable strap latches.
- A 74 mm diameter moulding cutter with countersink is needed.
- Hole size : 74 mm
- Protection class (device): IP 20
Order details
| Article No.: | 3058/21 |
| Order No.: | 2CKA001740A0078 |
| EAN: | 8712507115027 |
| Customs tariff number: | 85389099 |
| Price group: | 01 |
| Price: | 12,14 EUR plus VAT |
| Info sheet: | Download PDF |
