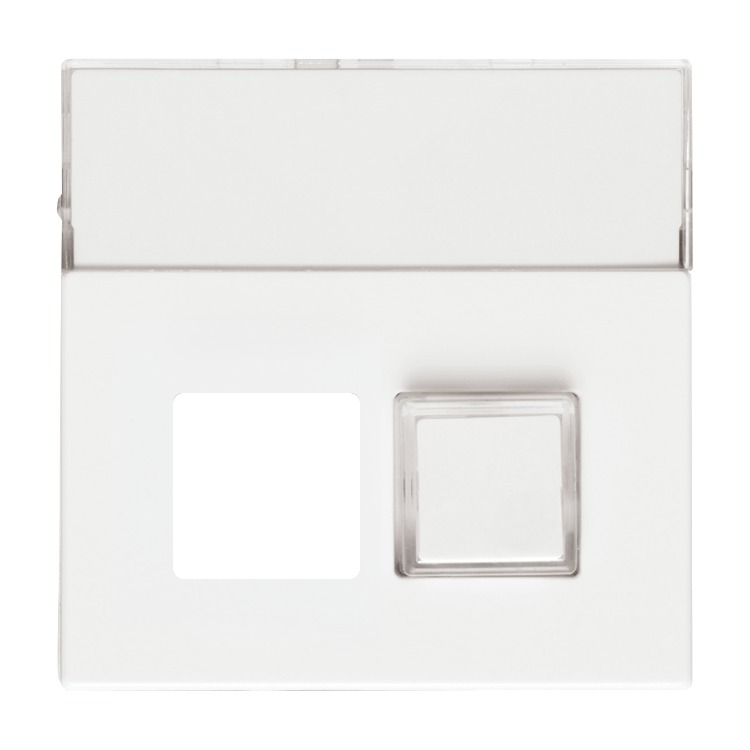

Cover plate
2gang, with labelling field

Take over in my parts list / tender specifications

Functions at a glance

  • With operating knob.
  • For signal push-button insert 1520/1 UKZ.
  • With labelling field 61 x 20 mm.
  • With exchangeable inlays in read and green for the individual designation of the operating knob.
  • Protection class (device): IP 20
  • Dimensions: (L x W x D): 63.5 mm x 63.5 mm x 11.1 mm
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
  • RAL colour number: Ähnlich 9016
  • Can also be used for Busch-axcent®, solo®, and carat®.

Order details

Article No.:1572 CN-84
Order No.:2CKA001582A0348
EAN:4011395092682
Customs tariff number:85389099
Price group:14
Price:16,80 EUR plus VAT
Info sheet:Download PDF
