Discontinuation type

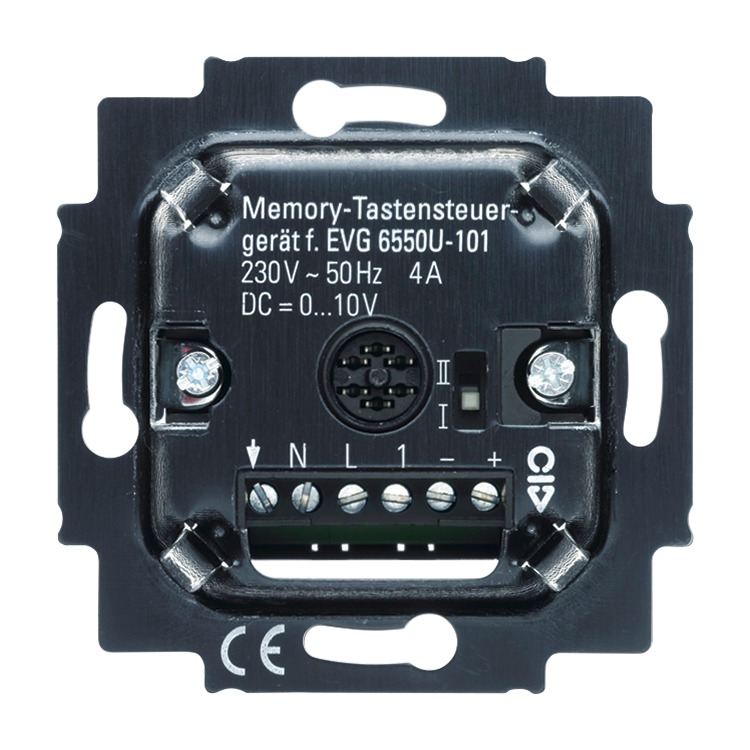

Busch-touch dimmer
flush mounted, 1-10V
Functions at a glance
- 3 wire connection (neutral conductor required).
- For controlling ballast units for fluorescent lamps with control output 1-10 V DC, control current max. 50 mA DC.

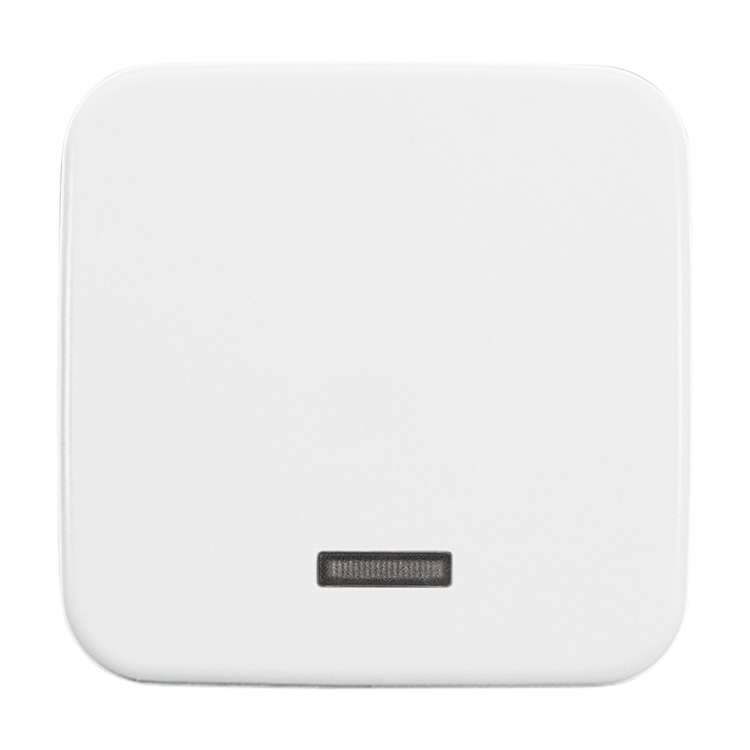

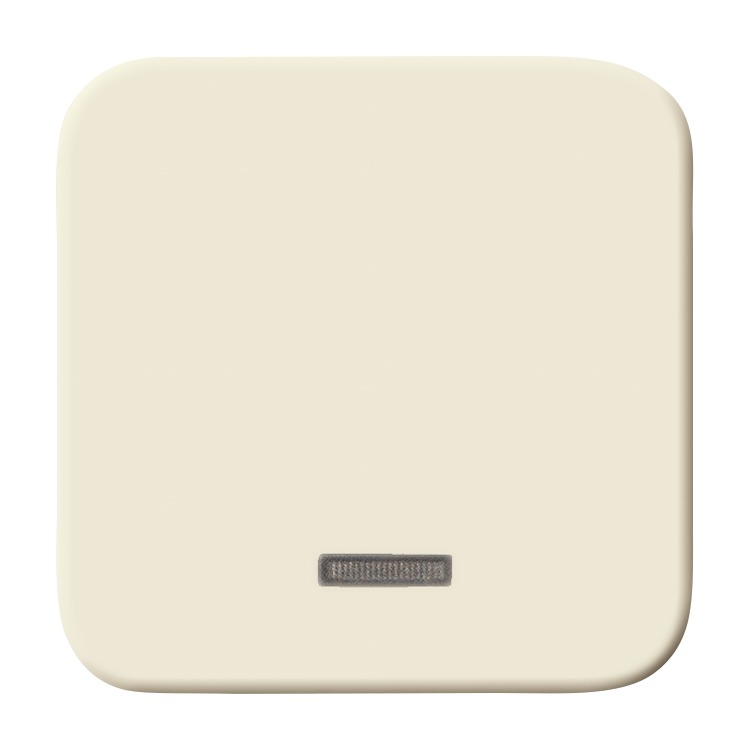

- For control cover with control lamp 6543-xxx-10x.
- For Busch-Remote control IR control cover 6066-xxx-10x and 6067-xxx-10x.
- For comfort timer control element 6455-101-500.
- For Busch-Watchdog 180 flush-mounted Sensor Standard 6810-21x-101.
- For Busch-Watchdog 180 flush-mounted sensor Comfort II 6800-xxx-104 and 6800-xxx-104M.
- For Busch-Watchdog Presence tech 6813-xxx-101 und 6813/11-xxx.
- Combinable with Busch-Watchdog extension insert 6805 U.
- Operation also possible via conventional push buttons (2020 US, 2021/6 UK).
- For LED control via control gears
- Without control cover.
- Rated voltage: 230 V~, +10 % / -10 %
- Rated frequency: 50 Hz
- Rated output: 700 W/VA
- Non-illuminable.
- Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
- with integrated making-current limiter
Order details
| Article No.: | 6550 U-101 |
| Order No.: | 2CKA006550A0041 |
| EAN: | 4011395991336 |
| Customs tariff number: | 85365080 |
| Price group: | 19 |
| Price: | 209,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Tips / Tricks
Dimensions

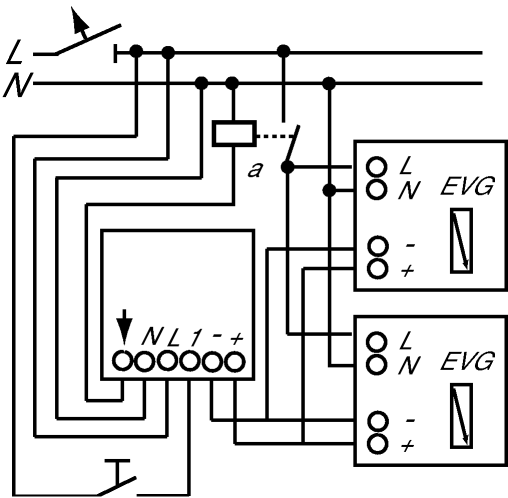

Wiring diagram

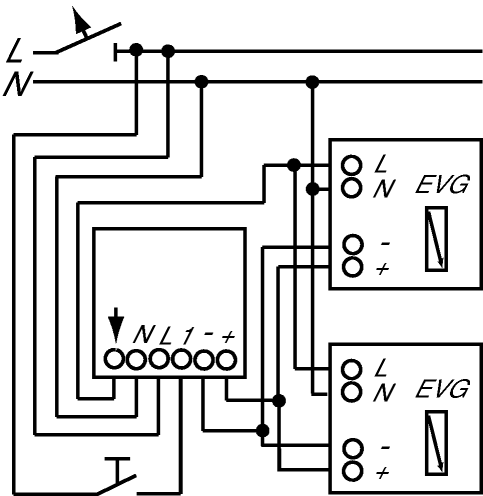

Busch-Memory touch-type controller 6550-… for controlling electronic ballast (EVG) units

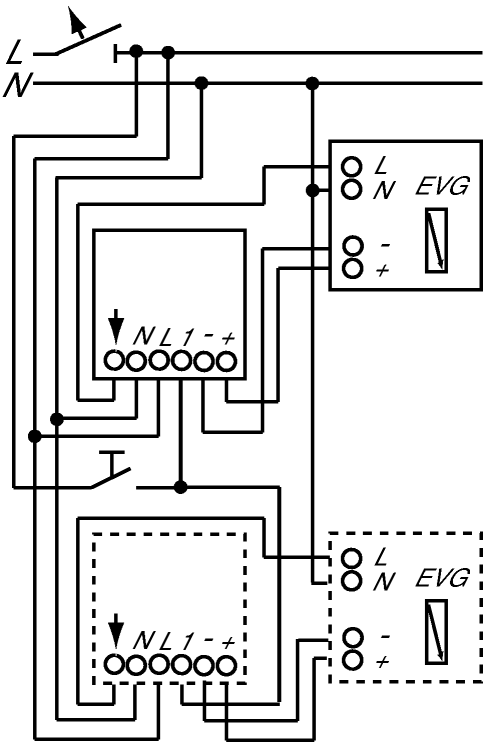

Operation of several electronic ballasts via one 6550 possible,
Busch-Memory touch-type controller 6550 U-101 for controlling electronic control gears with 0-10V interface
