Discontinuation type

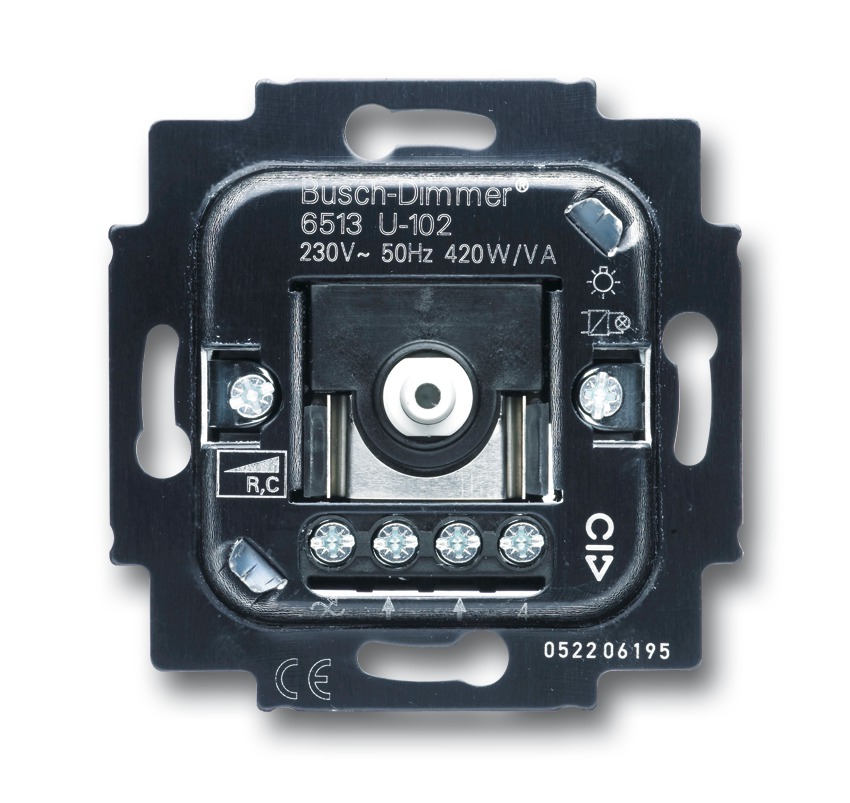

Busch-rotary dimmer
flush mounted, RC, 40-420 W
Functions at a glance
- With rotary control, soft-catch and with trailing edge control.
- For incandescent lamps, 230 V tungsten halogen lamps and low-voltage halogen lamps with electronic transformers.
- Low-noise, short-circuit-proof, overload-protected.
- Without cover plate.
- Rated voltage: 230 V~, +10 % / -10 %
- Rated frequency: 50 Hz
- Not suitable with conventional transformers.
- Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
- In case of electronic transformers, 5 % transformer losses.
- Provided with terminal for net disconnection devices.
- Also applicable for 1gang 2way installations.
- Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
Order details
| Article No.: | 6513 U-102 |
| Order No.: | 2CKA006513A0568 |
| EAN: | 4011395631003 |
| Customs tariff number: | 85365080 |
| Price group: | 20 |
| Price: | 121,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Tips / Tricks

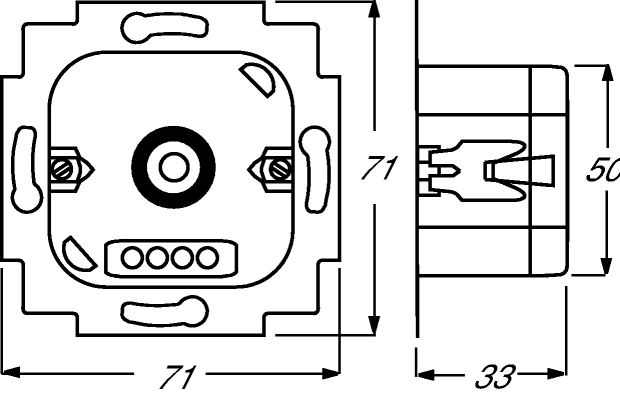

Dimensions

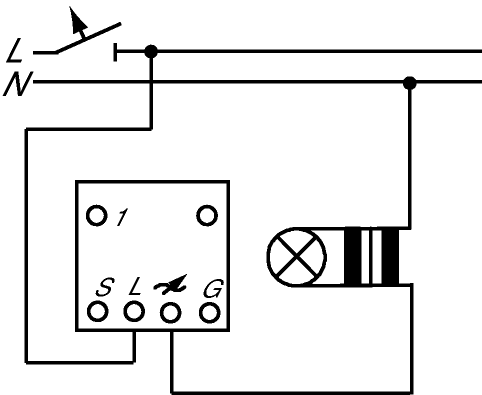

Wiring diagram

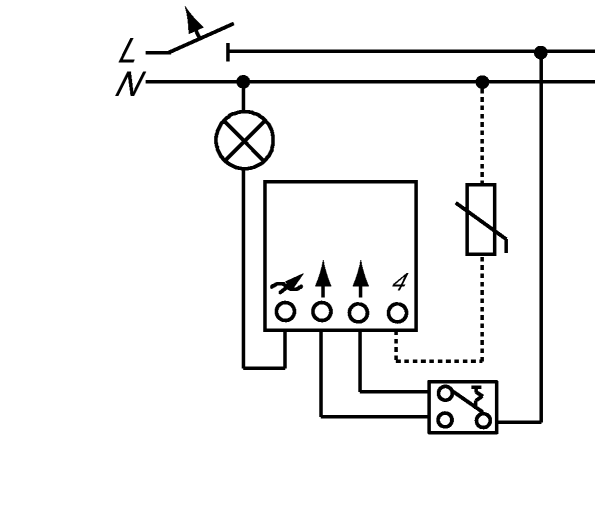

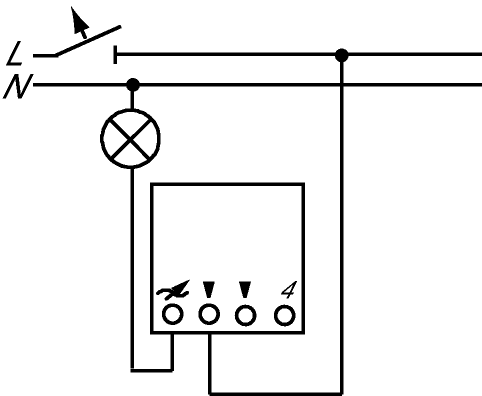

Dimmer 6513-…; 6520 U
Busch rotary dimmer 2247-..., 2250-...,6513-..., 6519-..., and 6520-... for mains release relay;
