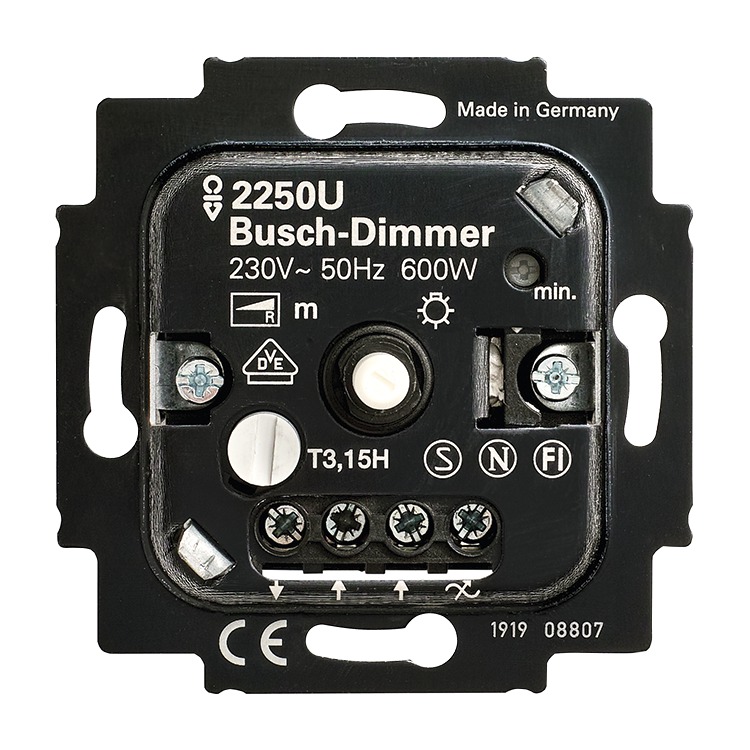

Busch-rotary dimmer
flush mounted, R, 60-600 W

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • With rotary control, 2way On-Off switching and soft-catch. Leading Edge control.
  • For incandescent lamps and 230 V tungsten halogen lamps.
  • With adjustable minimum brightness.
  • Without cover plate.
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz
  • Rated output: 60 - 600 W
    • Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
    • Also applicable for 1gang 2way installations.
    • Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
    • Provided with terminal for net disconnection devices.

      Order details

      Article No.:2250 U
      Order No.:2CKA006515A0704
      EAN:4011395365205
      Customs tariff number:85365080
      Price group:20
      Price:84,10 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Instruction manual
      Certificates
      Tips / Tricks

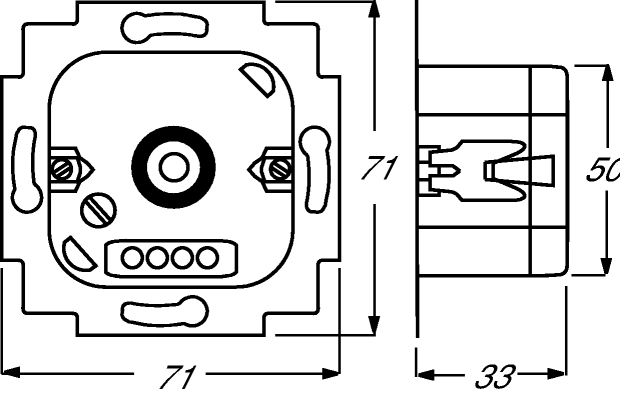

      Dimensions

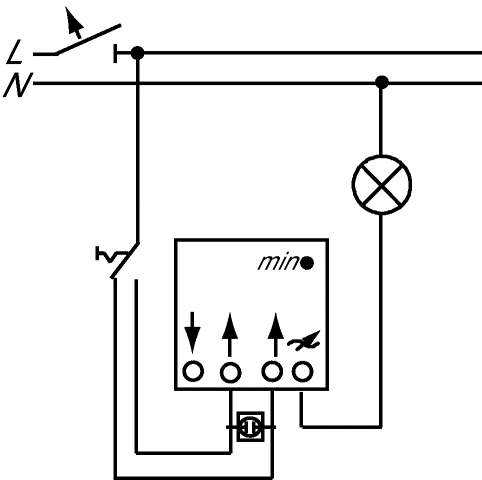

      Wiring diagram
      Dimmer in 1gang 2way installation

      Related products

      Compatible with
      Page 1 of 2
      Item was added to the parts list.
      Cover plate with rotary knob, with indication lamp 2115-214
      2CKA006599A0237
      Neon lamp for Dimmer (spare part) 3855
      2CKA006599A0518
      Cover plate with rotary knob, with indication lamp 2115-212
      2CKA006599A1334
      Cover plate with rotary knob, with indication lamp 6540-266
      2CKA006599A2855
      Cover plate with rotary knob, with indication lamp 6540-74
      2CKA006599A2084
      Cover plate with rotary knob, with indication lamp 6540-79
      2CKA006599A2159
      Cover plate with rotary knob, with indication lamp 6540-260
      2CKA006599A2852
      Cover plate with rotary knob, with indication lamp 6540-24G
      2CKA006599A2324
      Cover plate with rotary knob, with indication lamp 6540-20
      2CKA006599A1458
      Cover plate with rotary knob, with indication lamp 6540-21
      2CKA006599A1490
      Cover plate with rotary knob, with indication lamp 6540-22G
      2CKA006599A2803
      Alternativ Product
      Page 1 of 2
      Item was added to the parts list.

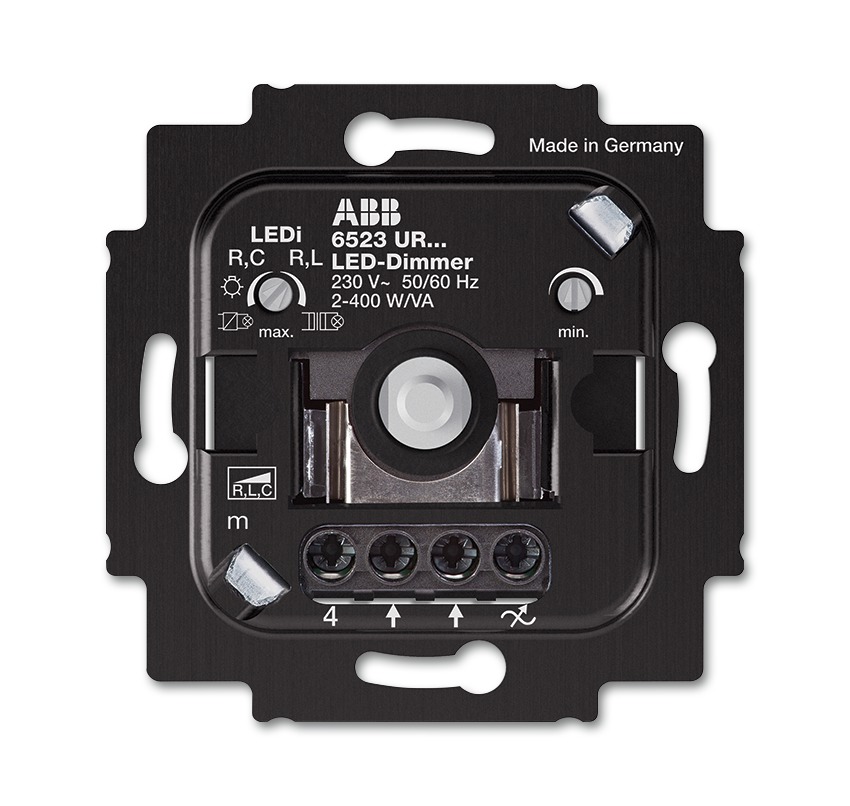

      Busch-rotary dimmer UP, LED, 2-400 W 6523 UR-103
      2CKA006512A0344
