Discontinuation type

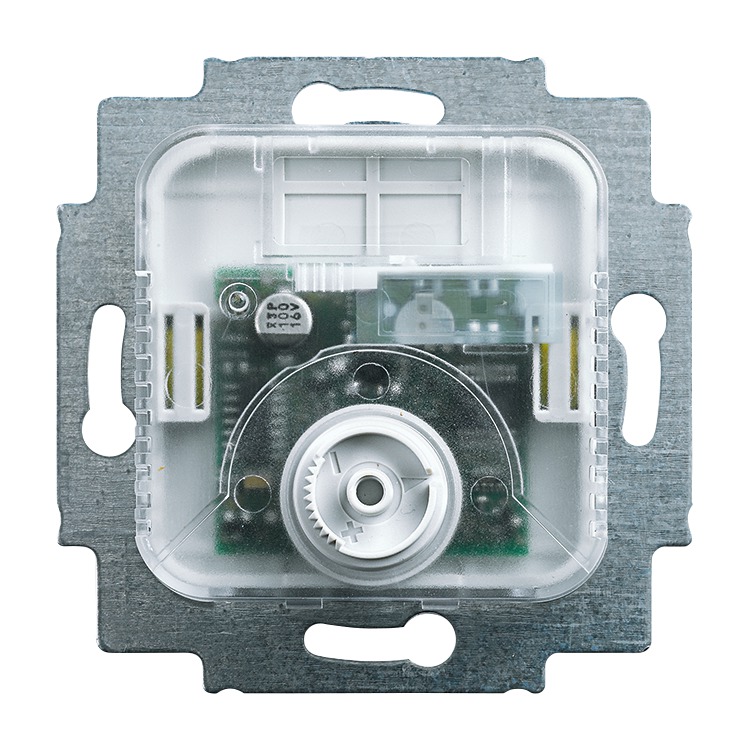

Room thermostat, flush-mounted
Functions at a glance
- Switch contact opens when the set temperature is reached.
- With fixing claws.
- Separate terminal to activate nighttime mode and reduction of room temperature by 4K.
- Class of temperature controller 1
- Contribution to space heating energy efficiency 1,0%.
- Rated voltage: 230 V~
- Rated current: 10 A
- Temperature range (device): 5 °C - 30 °C
- Dimensions: (L x W x D): 71 mm x 71 mm x 52 mm
- Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
- Servo-valves, "closed when de-energized", are necessary for connection to thermostat. e.g. Article No. 6164/10-, see KNX chapter.
- Switching temperature difference: ± 0.5 K.
Order details
| Article No.: | 1094 U |
| Order No.: | 2CKA001032A0483 |
| EAN: | 4011395044117 |
| Customs tariff number: | 90321020 |
| Price group: | 20 |
| Price: | 94,40 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Dimensions
Wiring diagram
Electronic ambient temperature controller with normally open contact
1094 U/..TA, 1095 U/..TA, 1096 U/..TA (24 V in that case)
