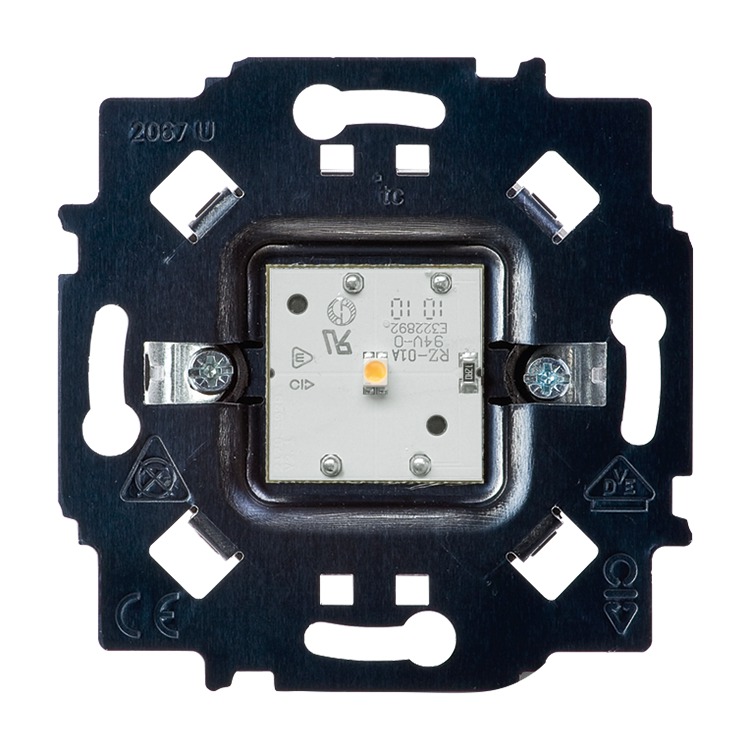

Flush-mounted LED insert
Night light cold white
Functions at a glance
- For Busch-iceLight wall and ceiling module Type 2068/xx.
- For low brightness (night light).
- Colour temperature 6,500 K (cold white)
- Not dimmable.
- System power consumption: 0.15 W
- Rated voltage: 230 V~, + 10% / - 10%
- Current consumption of LED: 40 mA (secondary)
- Secondary: SELV
- Rated frequency: 50 Hz / 60 Hz
- Protection class (device): IP 20
- Temperature range (device): 0 °C - 40 °C
- Storage temperature range: -20 °C - 70 °C
- Dimensions: (L x W x D): -32 mm
- Use relay inserts when switching through movement sensors or comfort switches.
- For switching the LED flush mounted insert use switches without orientation light only.
Order details
| Article No.: | 2067/14 U |
| Order No.: | 2CKA001510A0013 |
| EAN: | 4011395134573 |
| Customs tariff number: | 94051190 |
| Price group: | 19 |
| Price: | 63,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Films on application
Wiring diagram
Busch-iceLight LED flush-mounted inserts 2067/1. U
