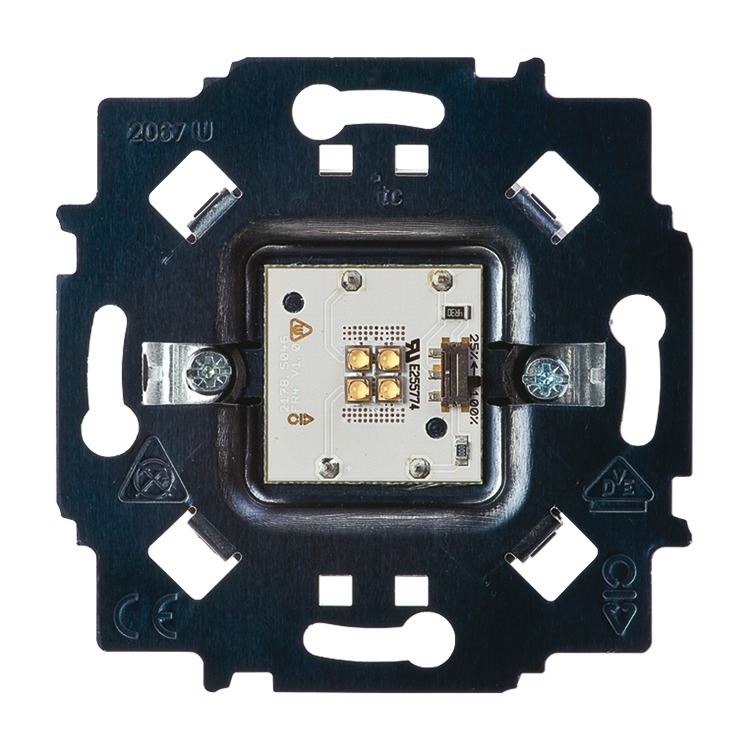

Flush-mounted LED insert
Power module neutral white
Functions at a glance

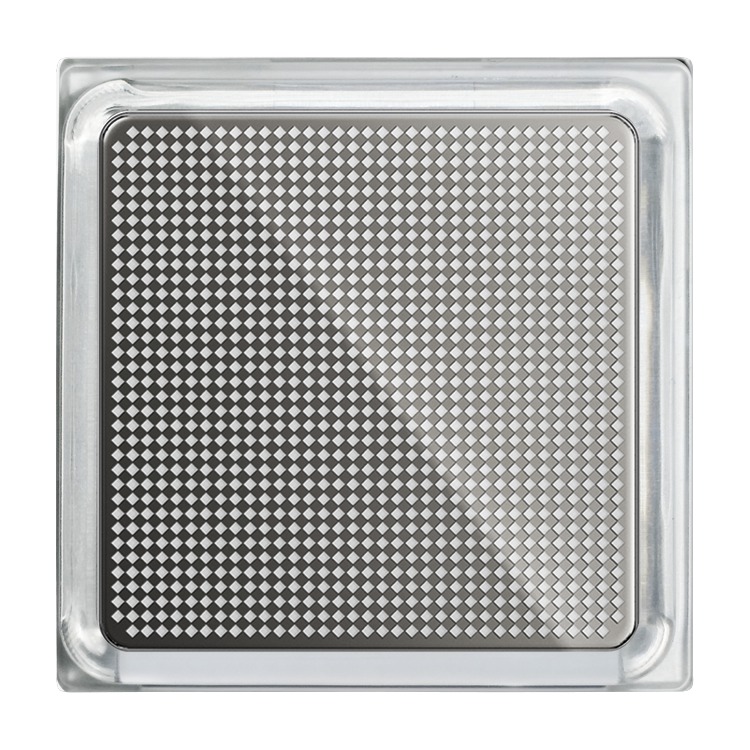

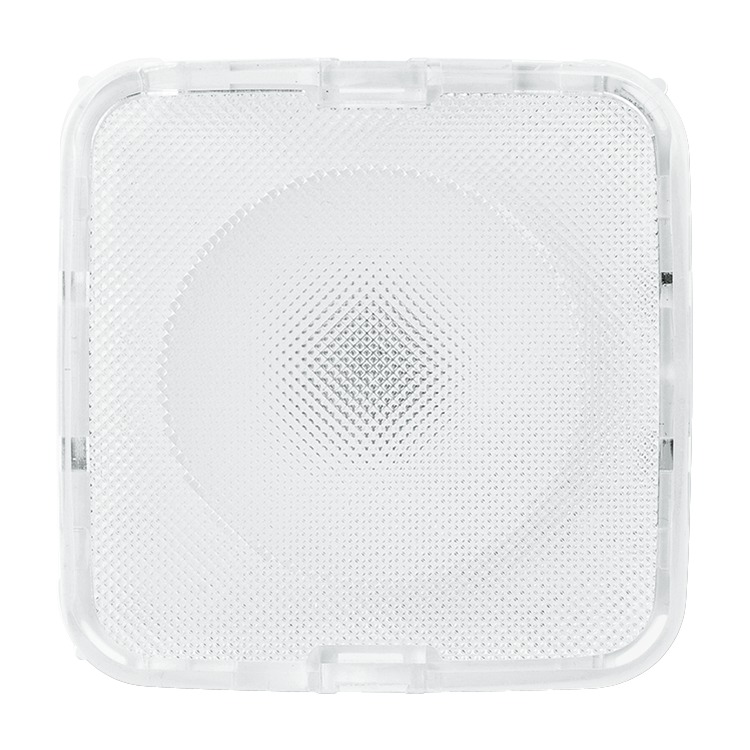

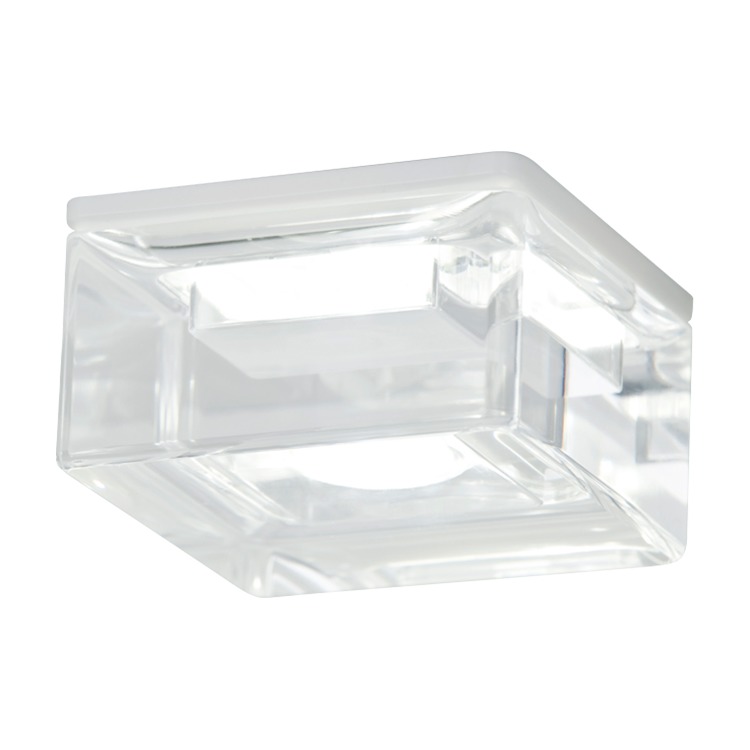

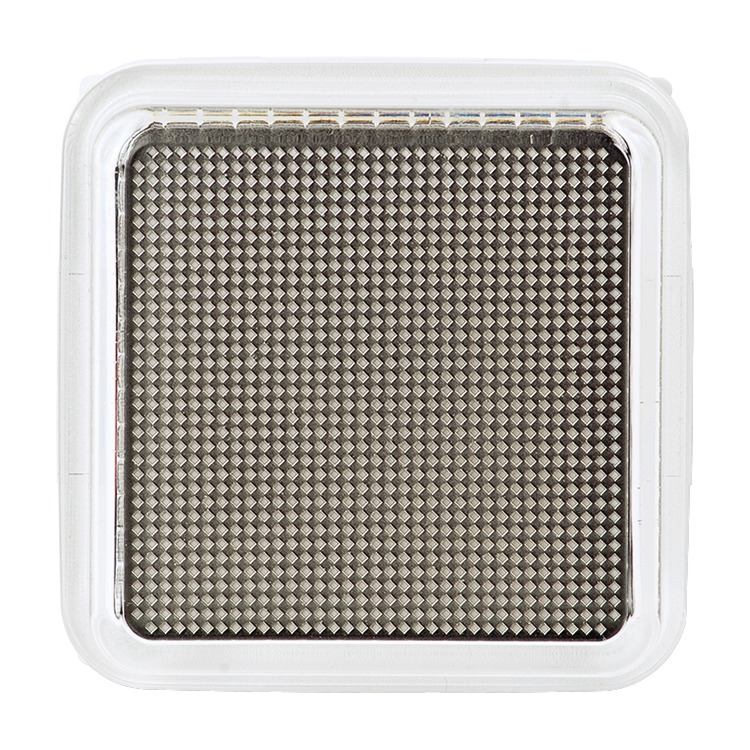

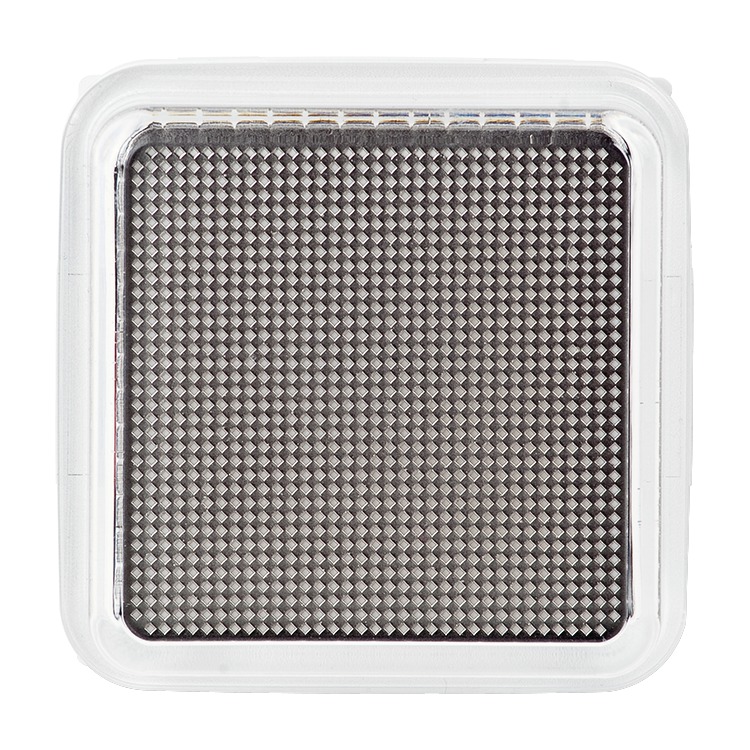

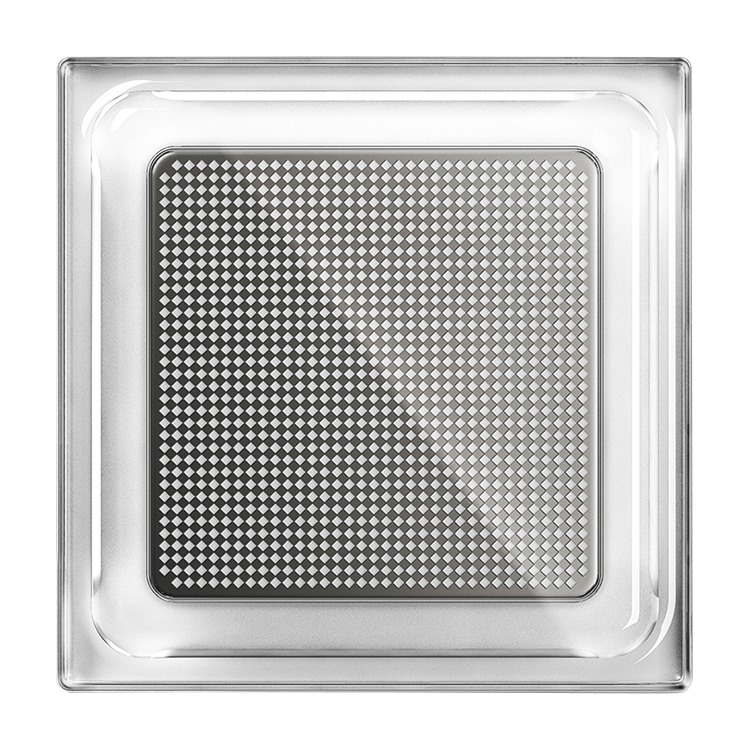

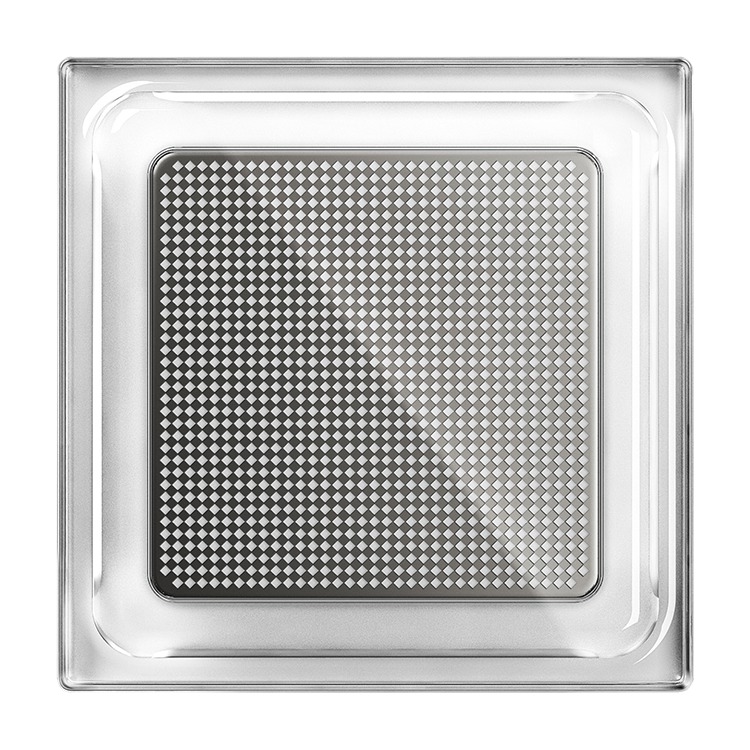

- For Busch-iceLight wall and ceiling module Type 2068/xx.
- High brightness, e.g. for the display of information.
- Colour temperature: 4,000 K (neutral white)
- Not dimmable.
- Light intensity can be switched between 100% and 25% using front service switch.
- System power consumption: 5 W
- Rated voltage: 230 V~, + 10% / - 10%
- Current consumption of LED: 350 mA (secondary)
- Secondary: SELV
- Rated voltage:
- Rated frequency: 50 Hz / 60 Hz
- Protection class (device): IP 20
- Temperature range (device): 0 °C - 40 °C
- Storage temperature range: -20 °C - 70 °C
- Dimensions: (L x W x D): -32 mm x 71 mm
- Use relay inserts when switching through movement sensors or comfort switches.
- For switching the LED flush mounted insert use switches without orientation light only.
Order details
| Article No.: | 2067/12 U |
| Order No.: | 2CKA001510A0002 |
| EAN: | 4011395132722 |
| Customs tariff number: | 94051190 |
| Price group: | 19 |
| Price: | 63,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Films on application

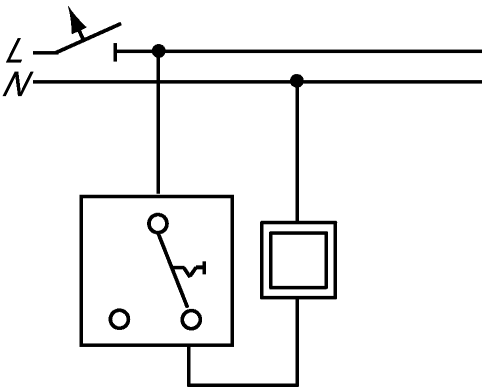

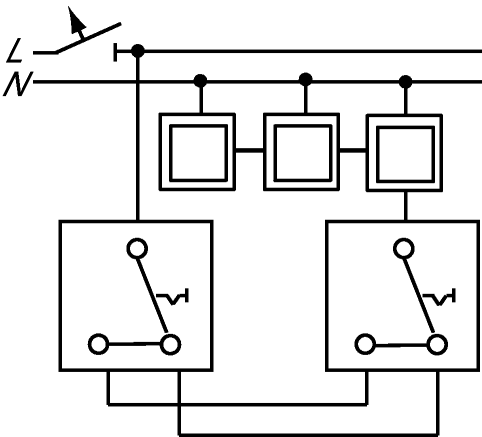

Wiring diagram
Busch-iceLight LED flush-mounted inserts 2067/1. U
Busch-iceLight LED flush-mounted inserts 2067/1. U
