Discontinuation type

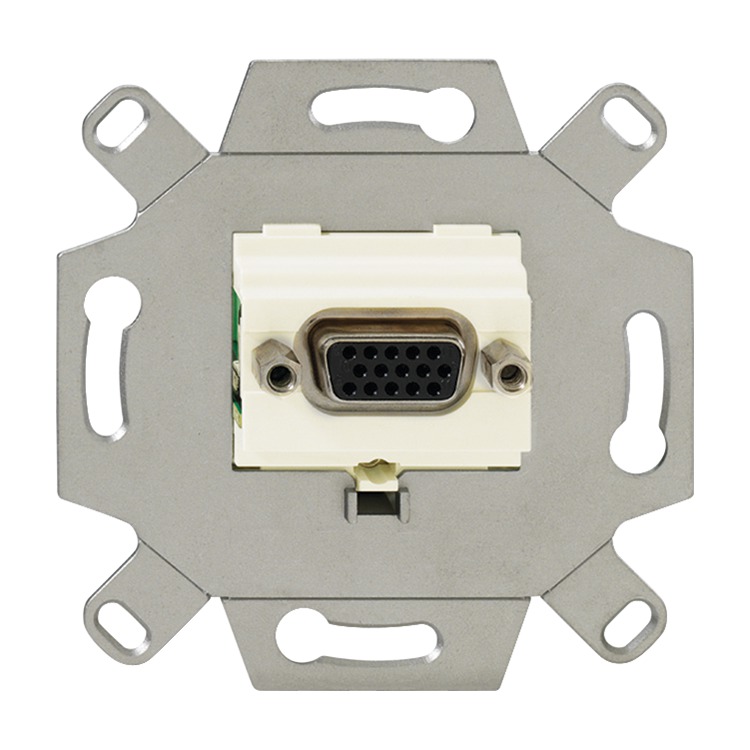

VGA connection unit
with screw-type terminals and strain relief

Functions at a glance

  • Suitable for telephone connection unit cover plates 2539-21x, 2539-914 and 1766-xxx.
  • To link analogue video data between PCs and laptops to monitors or digital projectors etc.
  • VGA-type: D-type, 15-pole.
  • Fully HD ready (1920 x 1080 pixel).
  • For 15-wire VGA-cables via srew-type terminals.
  • For trunk systems, flush-mounted wall boxes and underfloor systems.
  • For easy mounting and adhering to the admissible bending radii, the Kaiser >Electronic socket<, article number 1068-02 or 9062-74, is recommended.
  • Without cover plate.
  • Without claws.
  • Protection class (device): IP 20
  • Mounting depth: 34 mm
  • RAL colour number: Ähnlich 1013
  • Please follow the recommendations of the cable and device producers for the max. VGA cable lengths.

Order details

Article No.:0261/21
Order No.:2CKA000230A0421
Customs tariff number:85366990
Price group:01
Price:118,00 EUR plus VAT
