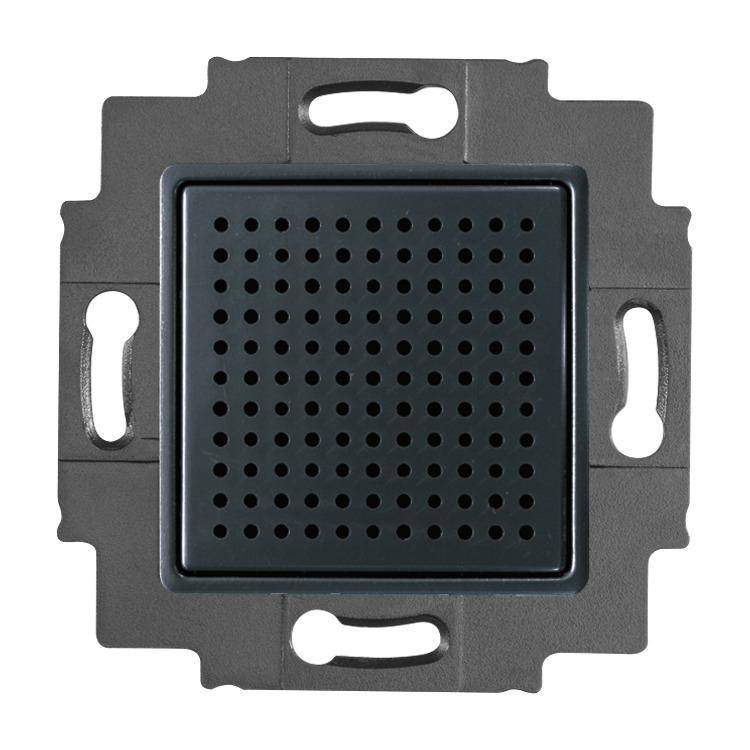

Loudspeaker insert
5 cm (2")

Take over in my parts list / tender specifications

Functions at a glance

  • For amplifier insert 8211 U.
  • For intercom amplifier inserts 8214 U.
  • MDRC amplifier 8208.
  • For microphone console 8205.
  • With broadband characteristics.
  • With screwless terminals.
  • Rated output: 2 W (RMS)
  • Frequency response: 150 - 16,000 Hz
  • Impedance: 16 Ohm
  • Protection class (device): IP 20, SELV
  • Mounting depth: 34 mm
  • No claw. Screw-fixing via keyholes.
  • RAL colour number: Ähnlich 7021

Order details

Article No.:8221 U
Order No.:2CKA008200A0012
EAN:4011395054130
Customs tariff number:85182100
Price group:19
Price:46,30 EUR plus VAT
Info sheet:Download PDF

Downloads

Instruction manual

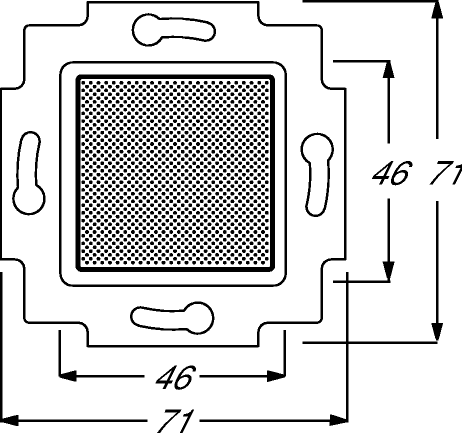

Dimensions
Wiring diagram
Amplifier unit 8211 U and intercom amplifier unit 8212 U with loudspeaker unit 8221 U or built-in loudspeaker 8222EB.
