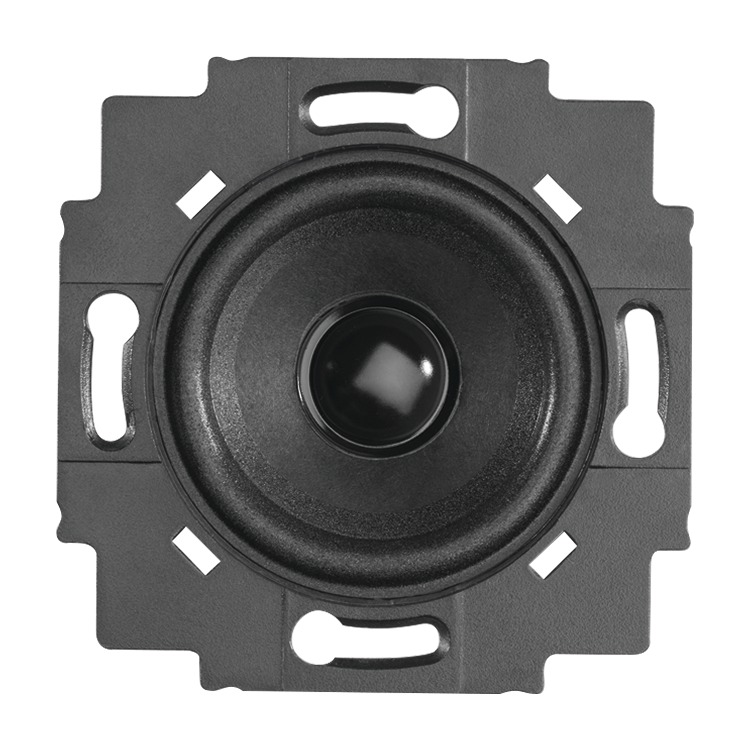

Loudspeaker insert
5 cm (2")

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • With flat plug connector.
  • With broadband characteristics.
  • Rated output: 2 W (RMS)
  • Incl. speaker connection cable.
  • Frequency response: 200 - 20,000 Hz
  • Impedance: 4 Ohm
  • Protection class (device): IP 20, SELV
  • Mounting depth: 32 mm
  • No claw. Screw-fixing via keyholes.

    Order details

    Article No.:8223 U
    Order No.:2CKA008200A0042
    EAN:4011395104446
    Customs tariff number:85182100
    Price group:19
    Price:41,10 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Certificates

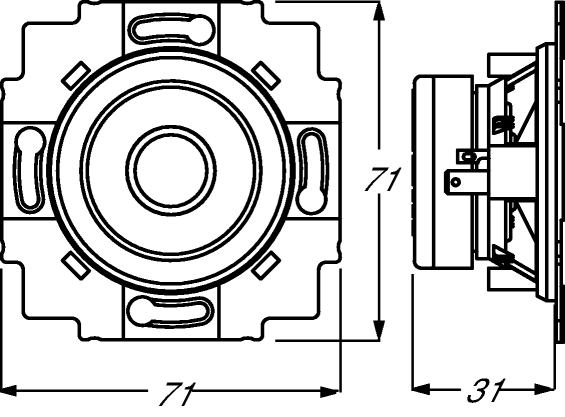

    Dimensions
    Busch-AudioWorld® speaker insert 8223U

    Related products

    Compatible with
    Page 1 of 2
    Item was added to the parts list.
    Busch-Radio DAB+ 8215 U-101
    2CKA008200A0275
    Busch-Radio BTconnect DAB+ With Bluetooth interface for music replay. 8217 U-101
    2CKA008200A0278
    Busch-Radio iNet 8216 U
    2CKA008200A0152
    Component
    Page 1 of 2
    Item was added to the parts list.

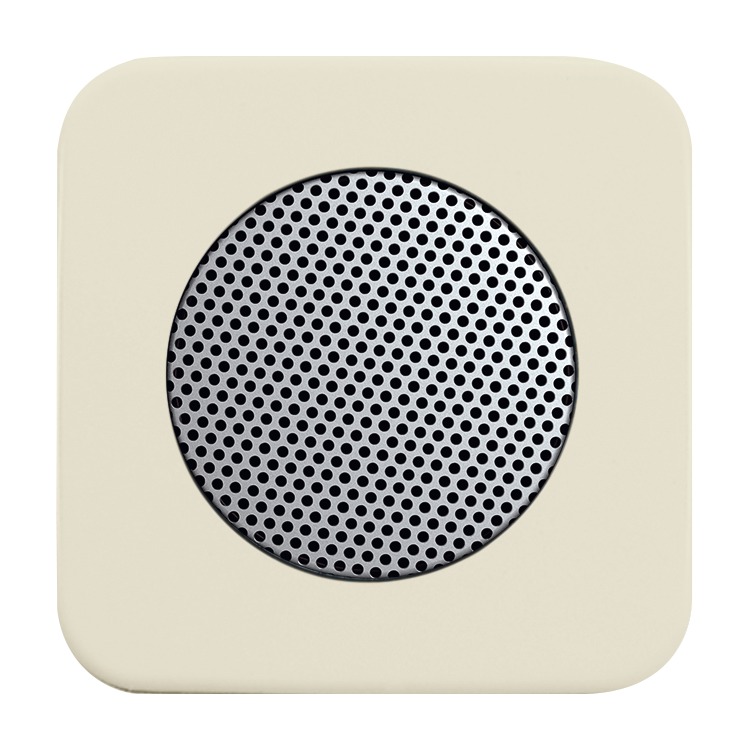

    Cover plate 8253-212
    2CKA008200A0076
    Cover plate 8253-214
    2CKA008200A0077
    Cover plate 8253-914
    2CKA008200A0186
    Cover plate 8253-20
    2CKA008200A0093
    Cover plate 8253-21
    2CKA008200A0094
    Cover plate 8253-22G
    2CKA008200A0095

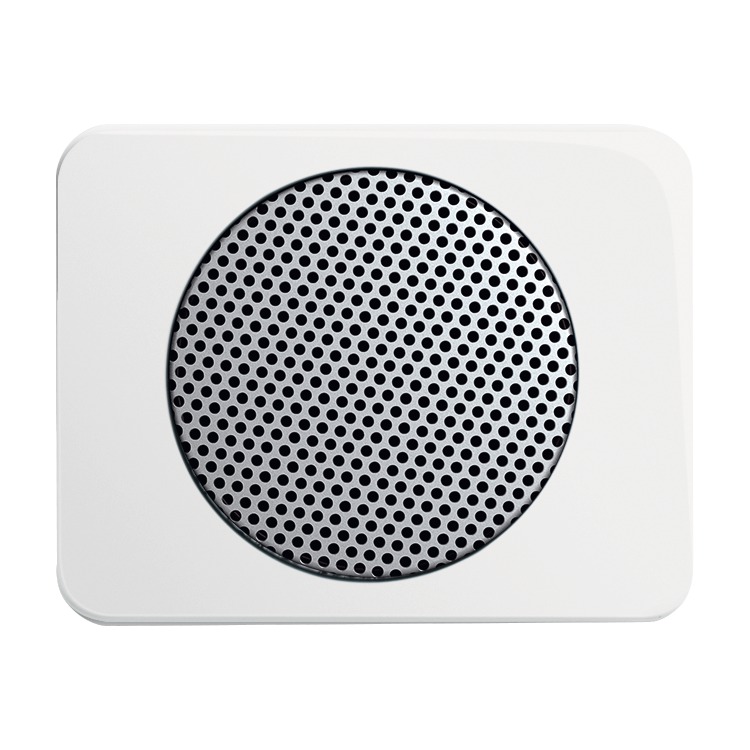

    Cover plate 8253-24G
    2CKA008200A0097
    Cover plate 8253-260
    2CKA008200A0102
    Cover plate 8253-266
    2CKA008200A0103
    Cover plate 8253-81
    2CKA008200A0078
    Cover plate 8253-82
    2CKA008200A0079
    Cover plate 8253-83
    2CKA008200A0080
    Cover plate 8253-84
    2CKA008200A0081
    Cover plate 8253-803
    2CKA008200A0115
    Cover plate 8253-884
    2CKA008200A0123
    Cover plate 8253-885
    2CKA008200A0126

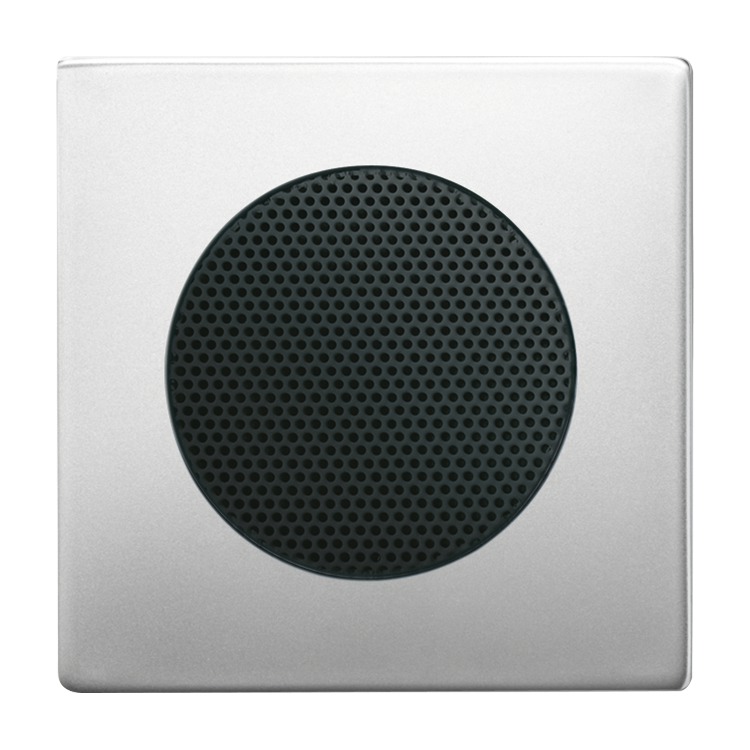

    Cover plate 8253-866
    2CKA008200A0087
    Cover plate 8253-72
    2CKA008200A0089
    Cover plate 8253-74
    2CKA008200A0090

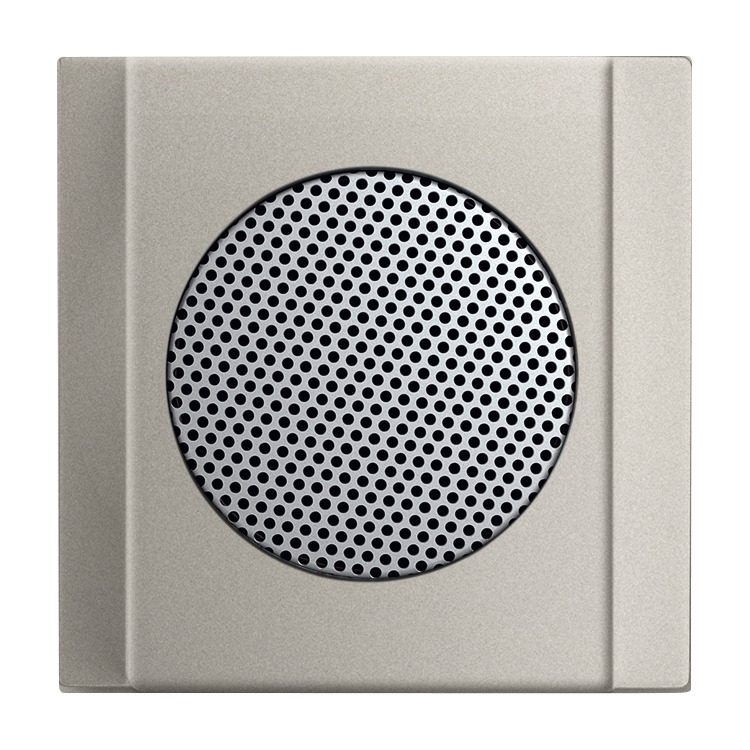

    Cover plate 8253-79
    2CKA008200A0091

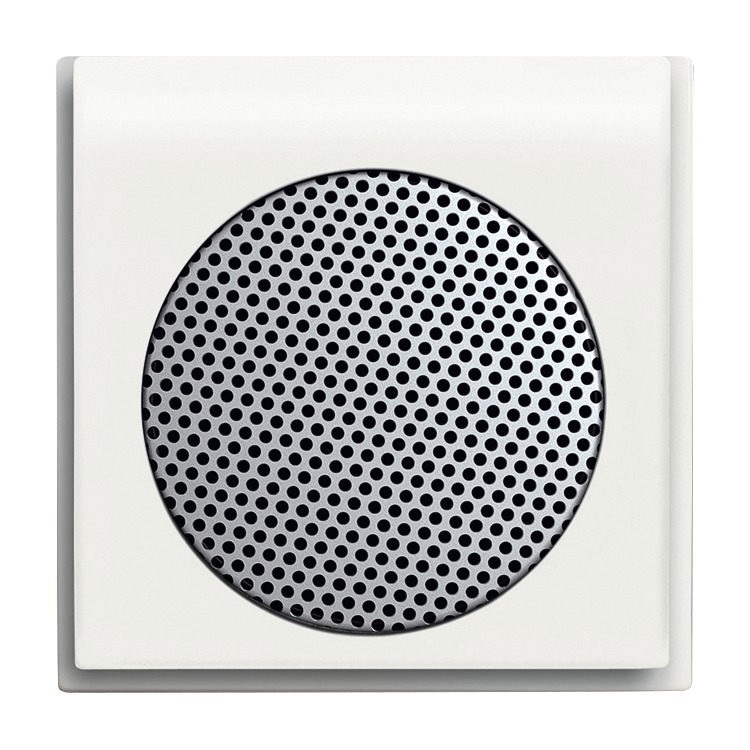

    Cover plate 8253-774
    2CKA008200A0130

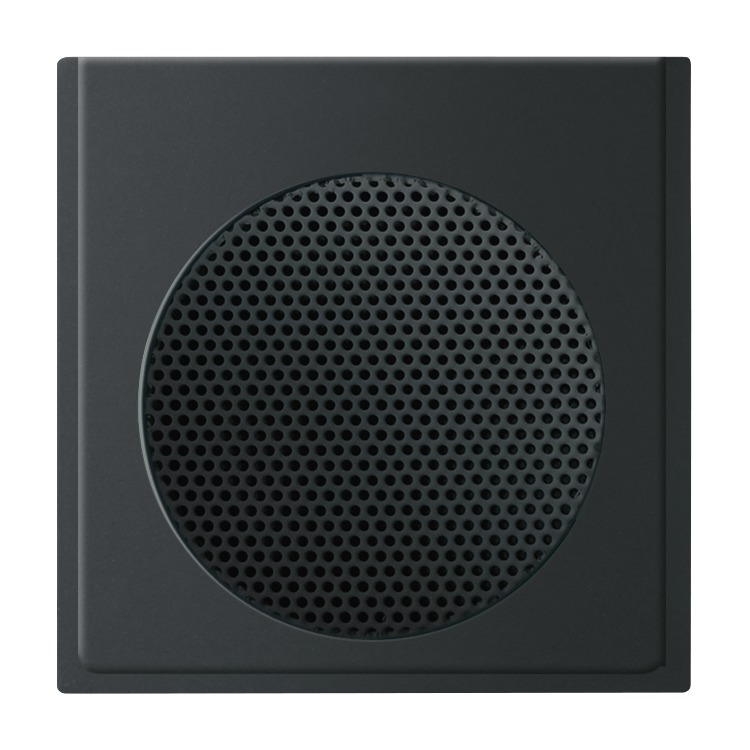

    Cover plate 8253-775
    2CKA008200A0128

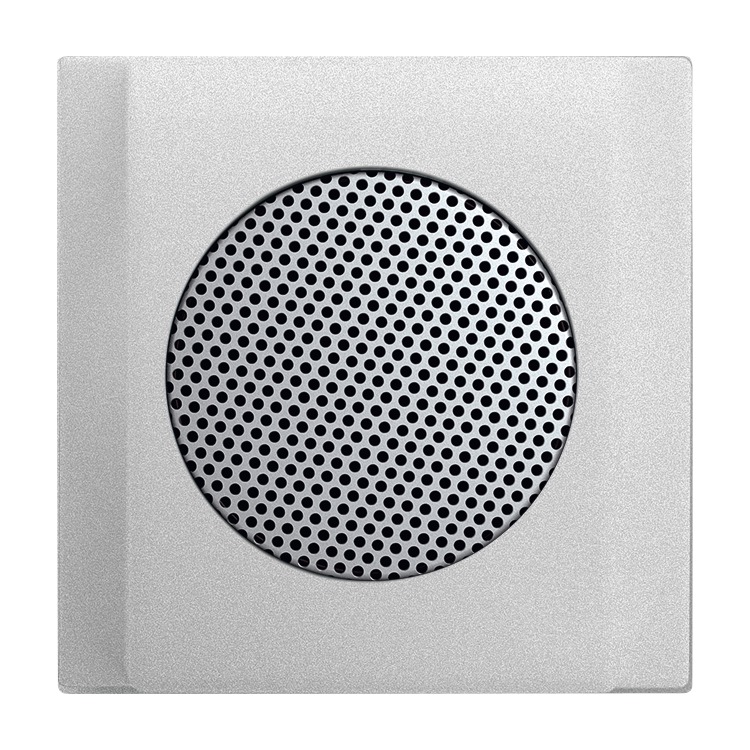

    Cover plate 8253-783
