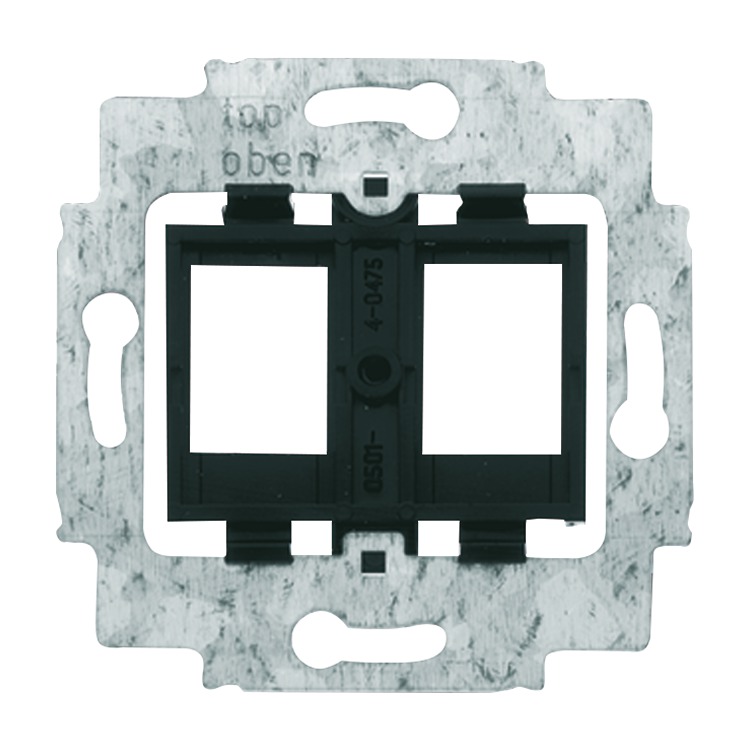

Mounting plate
Schwarzer Sockel - Rastmaß: (BxH) 14,8 x 20,4 mm

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • For MTRJ or 2 modular jack inserts.
  • For systems: Ackermann, AMP / tyco Electronics (Slim Line (SL) -SM 2gang/switches: 110Connect Jacks, Toolless Jacks / Standard 110Connect Jacks), Brand-Rex, CombiNet, EFB Electronic, Telena.
  • For 2 fiber optic modules of the following types: AMP / tyco Electronics MTRJ.

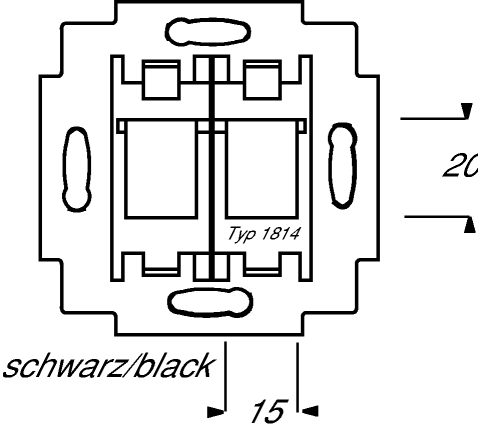

  • Pitch dimensions: (WxH) approx. 14.8 x 20.4 mm.
  • Without claws.
  • Protection class (device): IP 20
    • Compatibility with other manufacturers not listed is to be checked in accordance with specified snap-in dimensions.
    • For further information, please refer on the Internet.

      Order details

      Article No.:1814
      Order No.:2CKA001753A8063
      EAN:4011395743904
      Customs tariff number:85389099
      Price group:01
      Price:9,21 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Technical manual
      Certificates
      Tips / Tricks
      Dimensions

      Related products

      Compatible with
      Page 1 of 2
      Item was added to the parts list.
      Cover plate with labelling field 1800-22G
      2CKA001710A2645
      Cover plate with labelling field 1800-82
      2CKA001710A3158

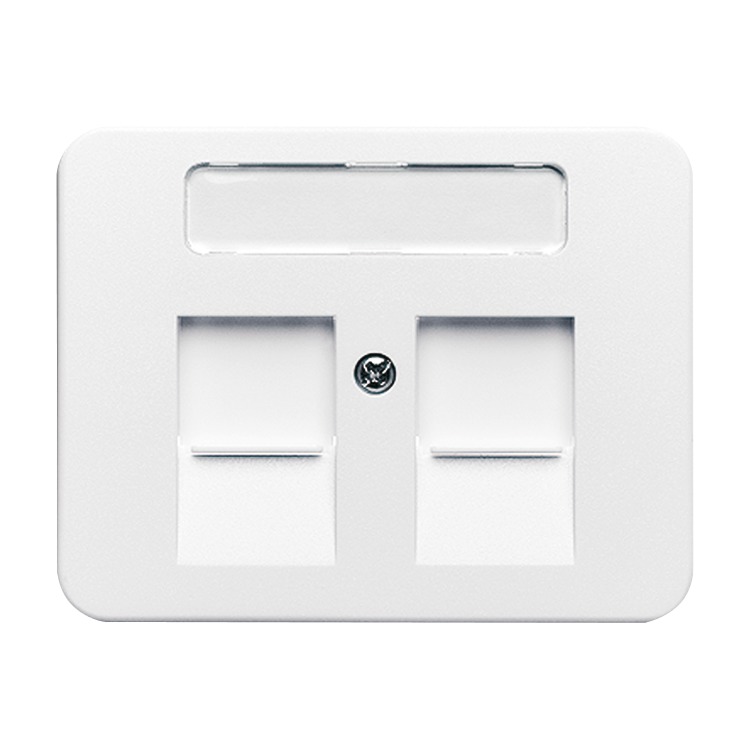

      Cover plate with labelling field 1800-24G
      2CKA001710A2710

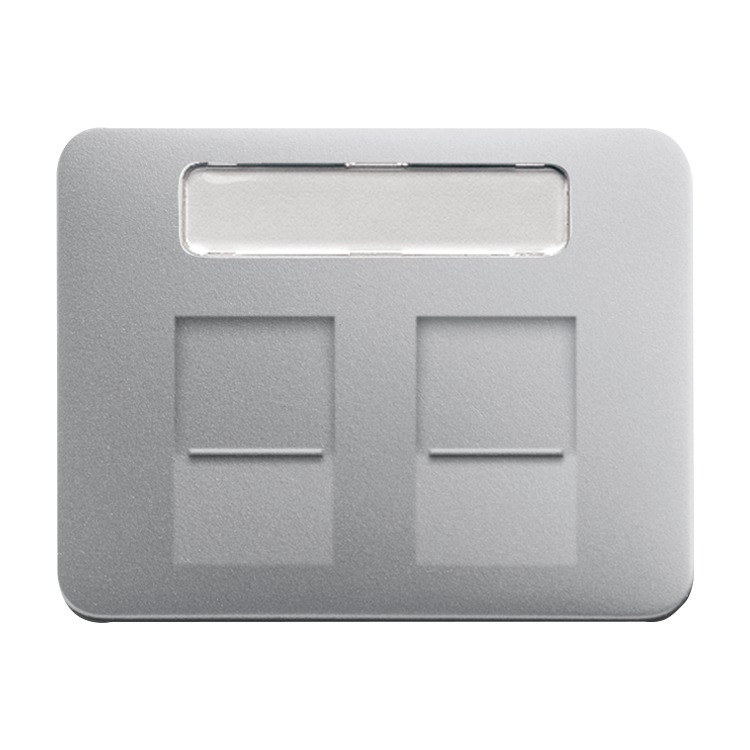

      Cover plate with labelling field 1800-266
      2CKA001710A3344
      Cover plate with labelling field 1800-84
      2CKA001710A3176

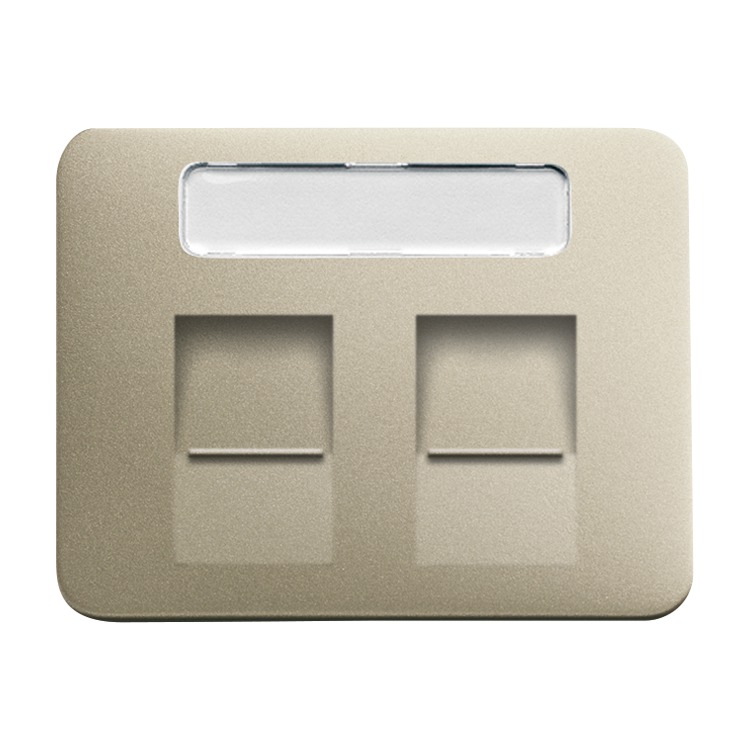

      Cover plate with labelling field 1800-260
      2CKA001710A3318

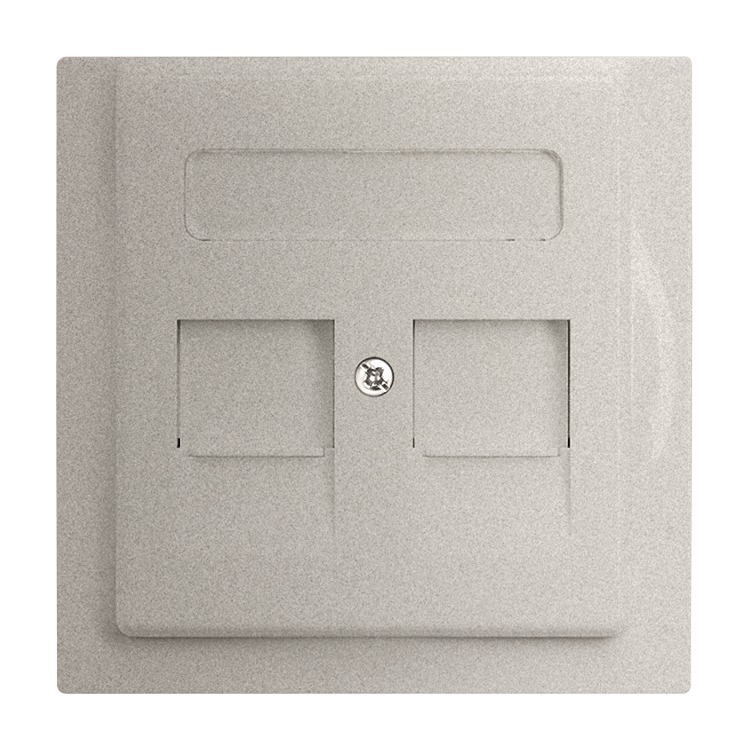

      Cover plate with labelling field 1800-79
      2CKA001753A8691
      Cover plate with labelling field 1800-21
      2CKA001753A9186
      Cover plate with labelling field 1800-20
      2CKA001753A9178

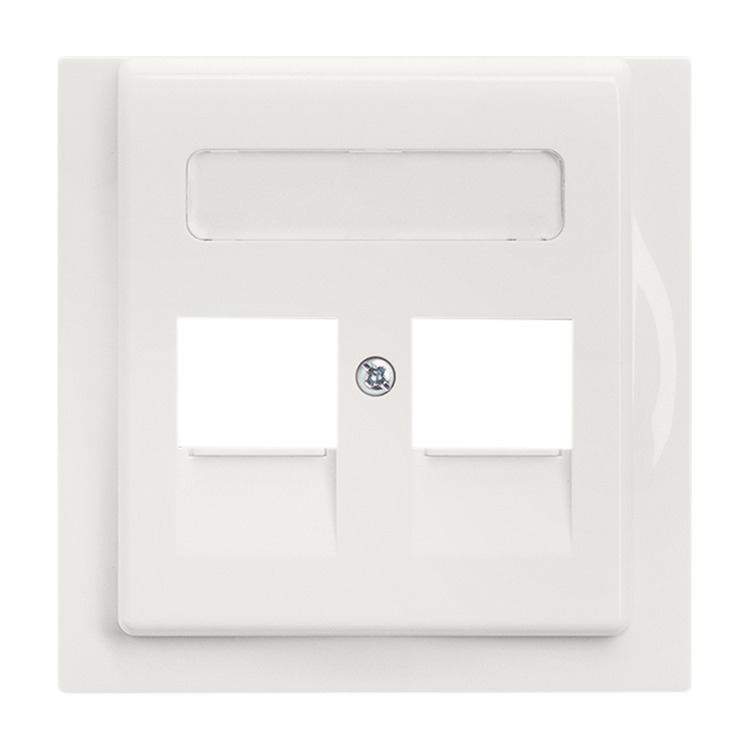

      Cover plate with labelling field 1800-74
      2CKA001753A8667

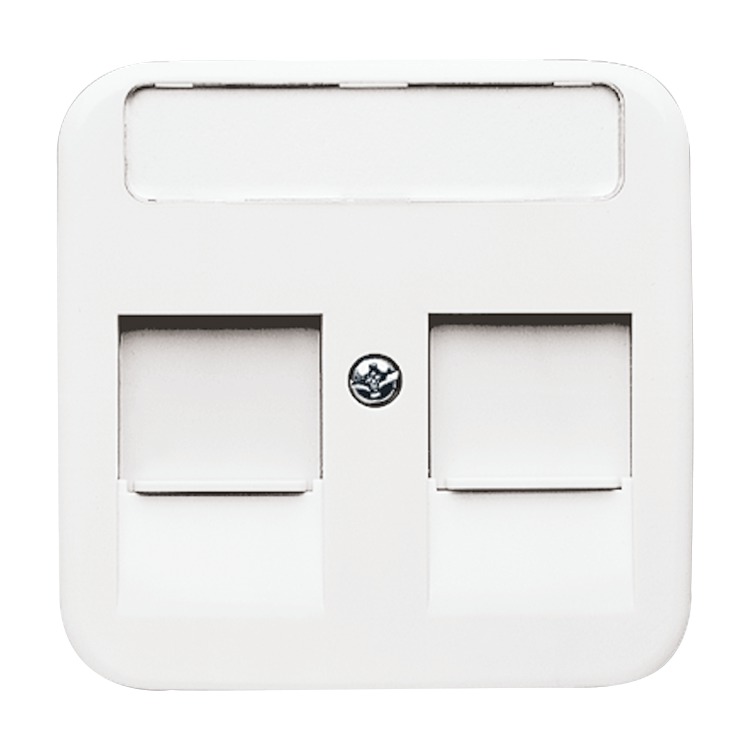

      Cover plate with labelling field 1800-214
