My parts list/tender specifications

Actions:
Discontinuation type

Functions at a glance

  • For 1 telephone and 2 auxiliary devices or 2 data transmission units (e.g. fax, answering machine, modem etc.)
  • 3 x 6 pole for 1 subscriber line.
  • Design in accordance with DIN 41715.
  • Screw contacts
  • With claw.
  • Protection class (device): IP 20
    • RAL colour number: 1013

    Order details

    Article No.:0243/02
    Order No.:2CKA000230A0391
    EAN:4011395090572
    Customs tariff number:85366990
    Price group:01
    Price:14,81 EUR plus VAT
    Info sheet:Download PDF

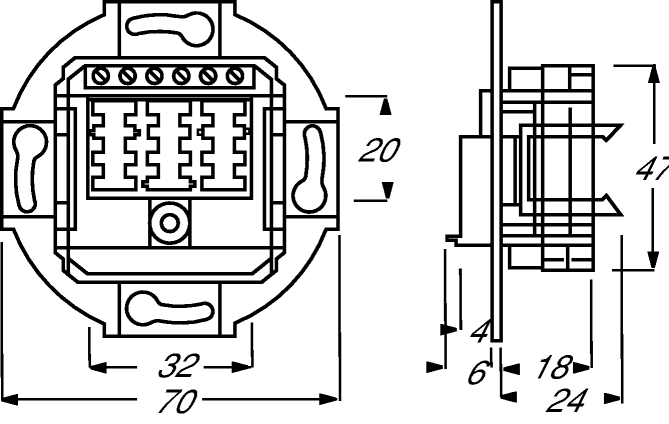

    Dimensions

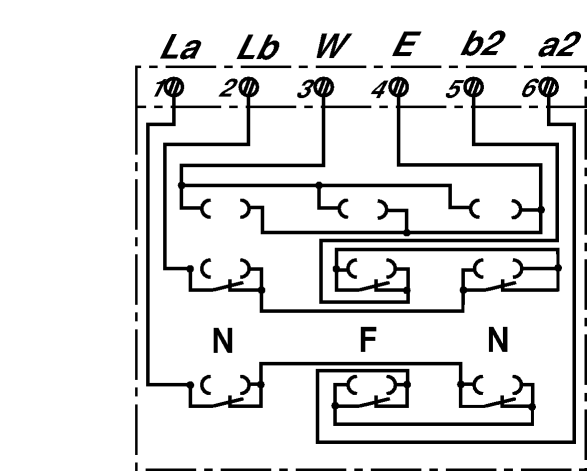

    Wiring diagram

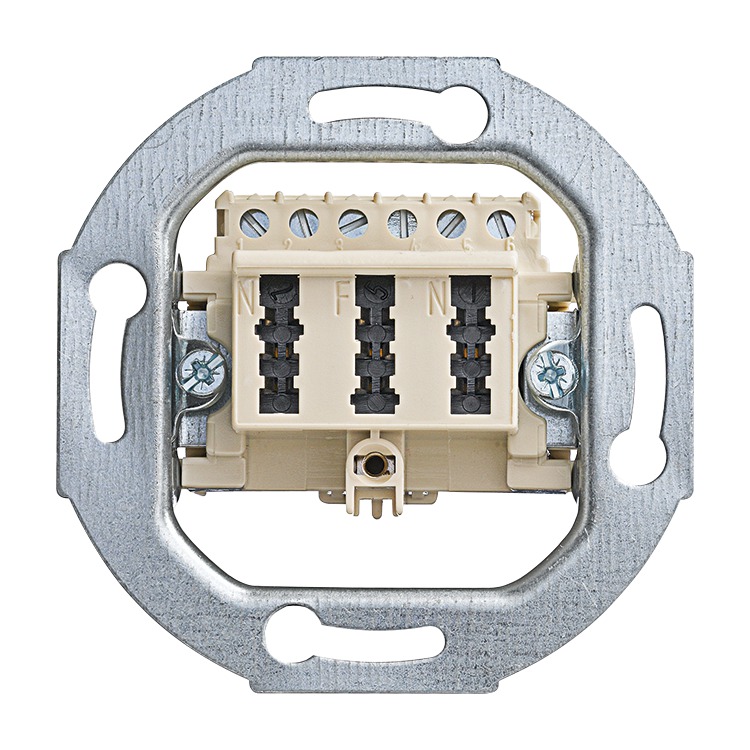

    3x6 NFN, for 1 telephone and 2 auxiliary devices or 2 data transmission units, 0243/…
